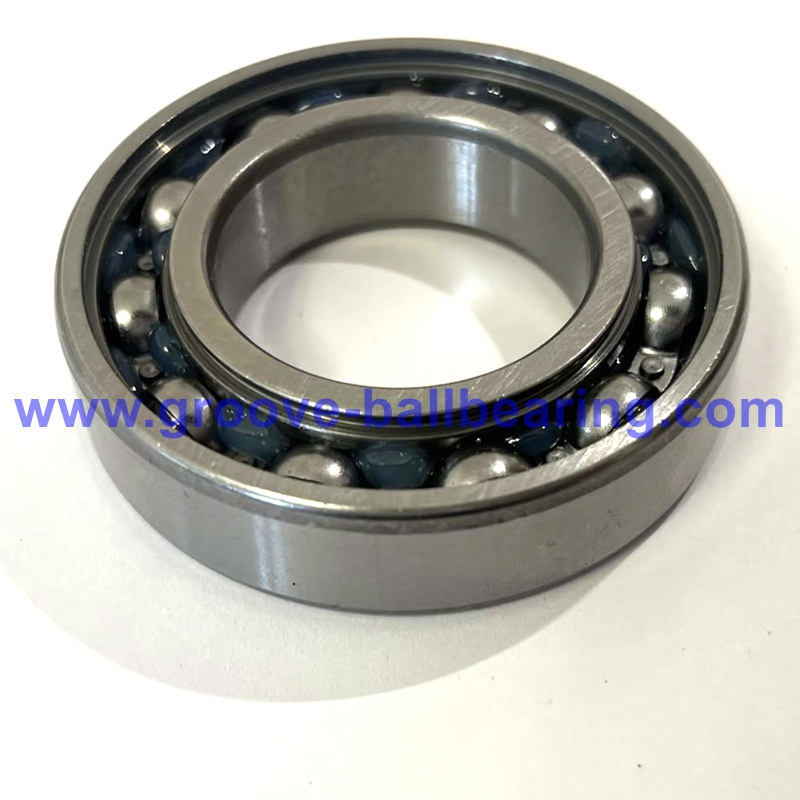

RLS22 Bearing LS 18 Single Row Ball Bearing 2.3/4 Inch Bore
d: 69.85mm/ 2 3⁄4 inch
D: 133.35mm/ 5 1⁄4 inch
B: 23.813mm/ 15⁄16 inch
Mass: 1.358kg/ 2.994lb
Sheilds: without
Warranty: 1 year
Replacements: RLS 22, RLS-22, LS 18, LS18, LJ-2 3/4, LJ2.3/4, LJ 2.3/4, LJ 2 3/4
RLS22 Bearing Specification:
RLS22 bearing is a single row ball bearing.
Concerning this bearing model,
d: 69.85mm/ 2 3⁄4 inch
D: 133.35mm/ 5 1⁄4 inch
B: 23.813mm/ 15⁄16 inch
Mass: 1.358kg/ 2.994lb
Sheilds: without
Bore: cylindrical bore
Number of Row: single row
Struture: deep groove ball bearing
Internal Play: standard C0 or CN
Warranty: 1 year
Certificate: ISO 9001: 2015
Replacements: RLS 22, RLS-22, LS 18, LS18, LJ-2 3/4, LJ2.3/4, LJ 2.3/4, LJ 2 3/4
Key Advantages:
Imperial Size Design – The RLS series bearings (RLS22, RLS24, RLS26, RLS 12, etc.) are designed with inch-based dimensions, ensuring seamless compatibility with machinery built to imperial standards.
Durable Construction – LJ-2 3/4 bearing is made of high-quality bearing steel, offering long life and strong resistance to wear.
Smooth Operation – Deep groove design reduces friction and heat, ensuring quiet and efficient performance.
Versatile Applications – RLS22 bearing works well in motors, gearboxes, pumps, fans, and other industrial equipment.
Easy Replacement – Standard imperial sizing makes it interchangeable with other bearings, cutting downtime.
High Load Capacity – RLS22 bearings support heavy radial loads and limited axial loads with stability.
Questions that help when RLS22 is on the shortlist
When is RLS22 worth comparing against nearby deep groove ball bearings options?
Comparison helps when dimensional fit is only part of the decision and load direction, sealing, clearance, speed, temperature, or repeat-order stability still need to be confirmed. Reviewing one or two nearby options early usually reduces sourcing mistakes later.
What details usually matter before approving RLS22 for repeat supply?
Buyers normally confirm the part reference, main dimensions, application, speed range, operating environment, sealing needs, and any packaging or marking requirements. That gives the supplier a cleaner basis for confirming availability and suitable alternatives.
Which next step usually helps after RLS22 is shortlisted?
A quick review of Deep Groove Ball Bearings, one more commercial destination, and one practical guide usually saves time. That combination helps separate simple replacement orders from jobs that still need fit or application review.
Why keep a supporting guide linked beside RLS22?
Because it makes later decisions faster. When sizing notes, application cues, and nearby options stay close to the product, engineering, purchasing, and maintenance teams can revisit the same logic without starting the review from zero.
Shipping Method:
1. Sea shipping for mass cargos (GW > 500KGS)
2. Air shipping (GW between 100KGS – 500 KGS)
3. Express, such as DHL, TNT, Fedex, UPS for small cargos ( GW < 100KGS)
4. If you have shipping agent in China, we can send goods to your shipping agent's warehouse
Payment Terms:
We accept T/T, W/U, PAYPAL, L/C etc
Buyer FAQ
Questions buyers ask before choosing the next bearing option
What should I confirm before ordering RLS22 Bearing LS 18 Single Row Ball Bearing 2.3/4 Inch Bore?
Confirm the bearing number, bore size, outside diameter, width, seal or shield type, cage material, clearance, precision level, quantity, and application. These details help prevent a size match from becoming a performance mismatch.
Can this bearing be matched for replacement or repeat supply?
Yes. Replacement and repeat orders are easier when the original marking, measured dimensions, photos, application, and quantity are available. If the marking is unclear, the team can start from the size and working condition.
Which product family does this bearing belong to?
This item is handled within the Deep Groove Ball Bearings family. Comparing the family page can help buyers review similar sizes, seal options, load direction, and related bearing choices before requesting a quote.
What affects price and lead time for this bearing?
Price and lead time can change with quantity, stock availability, precision grade, clearance, material, cage, seal or shield type, lubrication, packaging, and whether the order needs standard matching or custom production.
How is this bearing checked before delivery?
Inspection can include material review, dimensional measurement, noise and vibration checks, surface and crack checks, visual review, and packaging inspection according to the confirmed order requirements.
Need help checking fit, price, or lead time? Request a bearing quote
