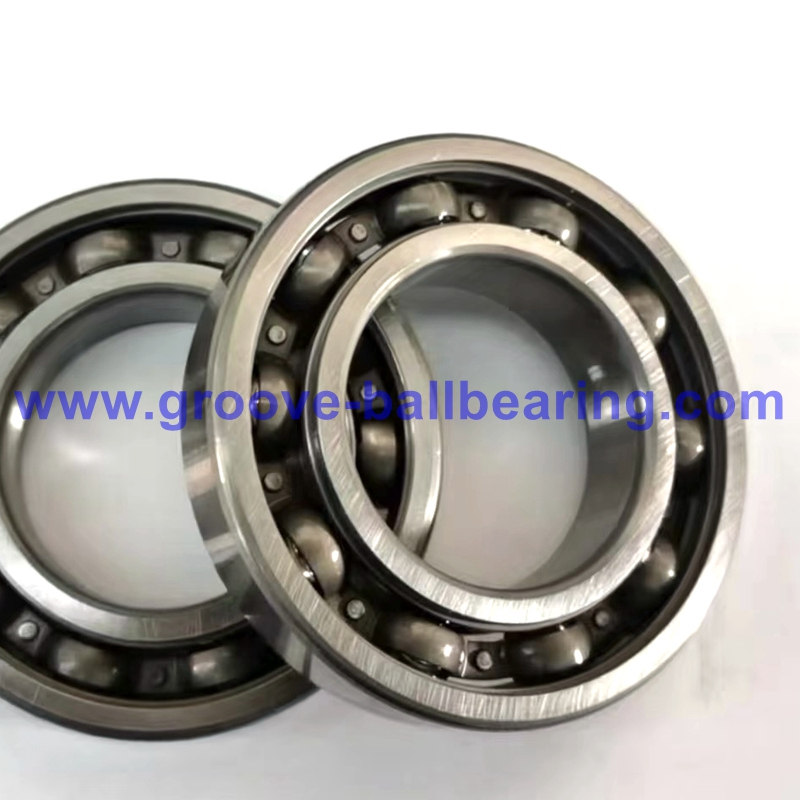

RLS 26 Bearing LS 19 1/2 Imperial Deep Groove Ball Bearing 82.55X152.4X26.988
Inner Diameter (inch): 3.75
Outer Diameter (inch): 6.00
Width (inch): 1.0625
Mass: 1.922kg/ 4.237lb
Number of Row: 1
Warranty: 1 year
Also known as: RLS26, RLS-26, LS 19 1/2, LS 19.1/2, LS19 1/2, LJ 3 1/4, LRJ3.1/4, LJ3-1/4J
RLS 26 Bearing Information:
RLS 26 bearing is inch series radial deep groove ball bearing.
Regarding this bearing model,
Inner Diameter (mm): 82.55
Outer Diameter (mm): 152.4
Width (mm): 26.988
Inner Diameter (inch): 3.75
Outer Diameter (inch): 6.00
Width (inch): 1.0625
Mass: 1.922kg/ 4.237lb
Number of Row: 1
Sheilds: without
Warranty: 1 year
Cage Material: pressed steel
Rings & Balls Material: chrome steel
Lubrication: standard grease or oil lubrication
Also known as: RLS26, RLS-26, LS 19 1/2, LS 19.1/2, LS19 1/2, LJ 3 1/4, LRJ3.1/4, LJ3-1/4J
RLS Series Bearings Interchange Reference:
| RLS 4 | LS 5 | LJ 1/2 | RLS 4 |
| RLS 5 | LS 7 | LJ 5/8 | RLS 5 |
| RLS 6 | LS 8 | LJ 3/4 | RLS 6 |
| RLS 7 | LS 9 | LJ 7/8 | RLS 7 |
| RLS 8 | LS 10 | LJ 1 E | RLS 8 |
| RLS 9 | LS 11 | LJ 1 1/8 | RLS 9 |
| RLS 10 | LS 12 | LJ 1 1/4 | RLS 10 |
| RLS 11 | LS 12 1/2 | LJ 1 3/8 | RLS 11 |
| RLS 12 | LS 13 | LJ 1 1/2 | RLS 12 |
| RLS 13 | LS 13 1/2 | LJ 1 5/8 | RLS 13 |
| RLS 14 | LS 14 | LJ 1 3/4 | RLS 14 |
| RLS 15 | LS 14 1/2 | LJ 1 7/8 | RLS 15 |
| RLS 16 | LS 15 | LJ 2 E | RLS 16 |
| RLS 18 | LS 16 | LJ 2 1/4 | RLS 18 |
| RLS 20 | LS 17 | LJ 2 1/2 | RLS 20 |
| RLS 22 | LS 18 | LJ 2 3/4 | RLS 22 |
| RLS 24 | LS 19 | LJ 3 E | RLS 24 |
| RLS 26 | LS 19 1/2 | LJ 3 1/4 | RLS 26 |
| RLS 28 | LS 20 | LJ 3 1/2 | RLS 28 |
| RLS 30 | LS 20 1/2 | LJ 3 3/4 | RLS 30 |
| RLS 32 | LS 21 | LJ 4 E | RLS 32 |
| RLS 34 | LS 21 1/2 | LJ 4 1/4 | RLS 34 |
Maintenance Tips for RLS26 Bearings:
-
Regular Lubrication – Apply the recommended grease or oil at proper intervals. Over- or under-lubrication can reduce bearing life.
-
Keep It Clean – Prevent dirt, dust, and moisture from entering the RLS 26 bearing. Use protective covers if necessary.
-
Proper Handling – Avoid dropping or applying shocks to the LJ 3 1/4 bearing during installation or maintenance.
-
Correct Installation – Use proper tools and techniques to install the bearing; avoid forcing it onto shafts or housings.
-
Monitor Temperature – High operating temperatures can indicate lubrication failure or misalignment. Check and address temperature anomalies promptly.
-
Check Alignment – Ensure shafts and housings are aligned correctly to avoid uneven load and premature wear.
-
Routine Inspections – Periodically check LS 19 1/2 bearings for noise, vibration, or unusual wear. Early detection can prevent failures.
Questions buyers ask when 55X152 and 4X26 is still under review
When is 55X152 and 4X26 worth comparing against nearby deep groove ball bearings options?
Comparison helps when dimensional fit is only part of the decision and load direction, sealing, clearance, speed, temperature, or repeat-order stability still need to be confirmed. Reviewing one or two nearby options early usually reduces sourcing mistakes later.
What details usually matter before approving 55X152 and 4X26 for repeat supply?
Buyers normally confirm the part reference, main dimensions, application, speed range, operating environment, sealing needs, and any packaging or marking requirements. That gives the supplier a cleaner basis for confirming availability and suitable alternatives.
Which next step usually helps after 55X152 and 4X26 is shortlisted?
A quick review of Deep Groove Ball Bearings, one more commercial destination, and one practical guide usually saves time. That combination helps separate simple replacement orders from jobs that still need fit or application review.
Why keep a supporting guide linked beside 55X152 and 4X26?
Because it makes later decisions faster. When sizing notes, application cues, and nearby options stay close to the product, engineering, purchasing, and maintenance teams can revisit the same logic without starting the review from zero.
Shipping Method:
1. Sea shipping for mass cargos (GW > 500KGS)
2. Air shipping (GW between 100KGS – 500 KGS)
3. Express, such as DHL, TNT, Fedex, UPS for small cargos ( GW < 100KGS)
4. If you have shipping agent in China, we can send goods to your shipping agent's warehouse
Payment Terms:
We accept T/T, W/U, PAYPAL, L/C etc
Buyer FAQ
Questions buyers ask before choosing the next bearing option
What should I confirm before ordering RLS 26 Bearing LS 19 1/2 Imperial Deep Groove Ball Bearing 82.55X152.4X26.988?
Confirm the bearing number, bore size, outside diameter, width, seal or shield type, cage material, clearance, precision level, quantity, and application. These details help prevent a size match from becoming a performance mismatch.
Can this bearing be matched for replacement or repeat supply?
Yes. Replacement and repeat orders are easier when the original marking, measured dimensions, photos, application, and quantity are available. If the marking is unclear, the team can start from the size and working condition.
Which product family does this bearing belong to?
This item is handled within the Deep Groove Ball Bearings family. Comparing the family page can help buyers review similar sizes, seal options, load direction, and related bearing choices before requesting a quote.
What affects price and lead time for this bearing?
Price and lead time can change with quantity, stock availability, precision grade, clearance, material, cage, seal or shield type, lubrication, packaging, and whether the order needs standard matching or custom production.
How is this bearing checked before delivery?
Inspection can include material review, dimensional measurement, noise and vibration checks, surface and crack checks, visual review, and packaging inspection according to the confirmed order requirements.
Need help checking fit, price, or lead time? Request a bearing quote
