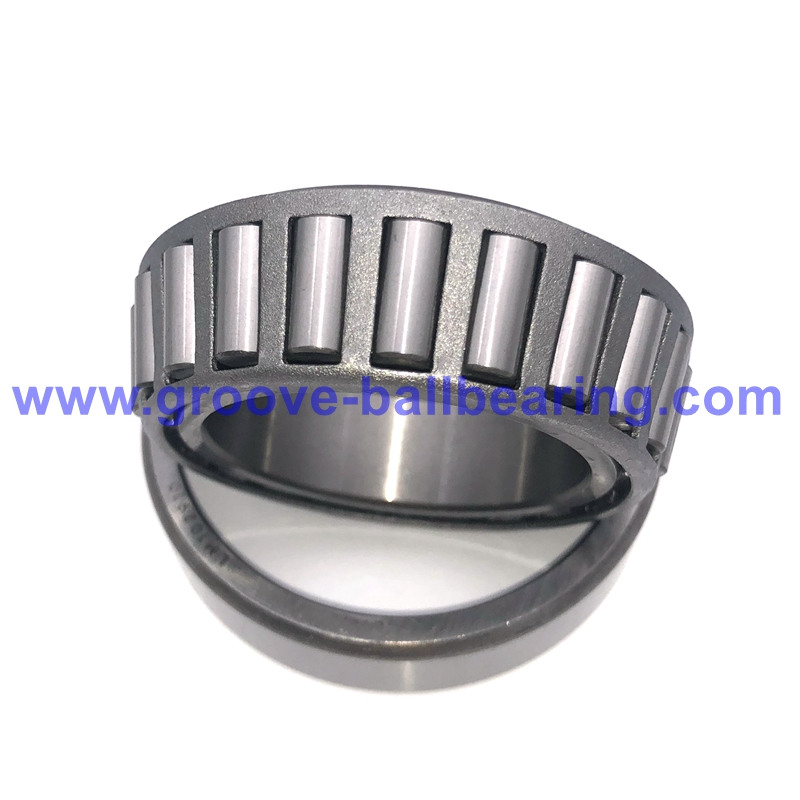

26880-26822 Bearing 26880/22 Inch Taper Roller Bearing

Bore – d: 1-9/16 in/ 39.688mm
Outer Diameter – D: 3.1250 inch/ 79.375mm
Cone Width – B: 1 inch/ 25.4mm
Bearing Width – T: 0.9375 inch/ 23.813mm
Mass: 0.55kg
Cone Number: 26880
Cup Number: 26822
Cage: steel
Bearing Material: bearing steel 51200

Description

26880-26822 Bearing Information:

26880-26822 Bearing Bore – d: 1-9/16 in/ 39.688mm
Outer Diameter – D: 3.1250 inch/ 79.375mm
Cone Width – B: 1 inch/ 25.4mm
Bearing Width – T: 0.9375 inch/ 23.813mm
Mass: 0.55kg
Cone Number: 26880
Cup Number: 26822
Cage: steel
Bearing Material: bearing steel, AISI 51200
Number of Row: single
Strucuture: taper roller bearing
Relubricate Oil Holes: without
Lubrication: grease or oil
Precision: standard P0 (ABEC1)
Equivalents: 26880 – 26822, 26880/26822, 26880/22, 26880/822, 26880-99402

Common Applications:

Industrial Equipment

  • Heavy machinery gearboxes
  • Rolling mill equipment
  • Mining and construction machinery
  • Material handling systems

Automotive & Transportation

  • Heavy-duty truck wheel hubs
  • Trailer axles
  • Commercial vehicle transmissions
  • Railway applications

Agricultural Machinery

  • Tractor wheel assemblies
  • Harvester drive systems
  • Heavy farm equipment

Durable Taper Roller Bearings We Offer:

Model Number Dimensions (mm) Mass (kg)
2560X/2526X 30.000×72.000×23.812 0.500
JHM88540/JHM88513 30.000×72.000×29.370 0.610
2586/2525 30.000×72.022×23.812 0.500
3190/3126 30.000×72.034×30.162 0.590
14118/14283 30.000×72.085×22.385 0.440
14117A/14283 30.000×72.085×22.385 0.440
15116/15245 30.112×62.000×19.050 0.260
15116/15250 30.112×63.500×20.638 0.290
08118/08231 30.162×58.738×14.684 0.170
08118/08237 30.162×58.788×14.684 0.170
17119/17244 30.162×62.000×16.002 0.230
M86649/M86610 30.162×64.292×21.433 0.340
M86649P/M86610P 30.162×64.292×21.433 0.340
24118/24261 30.162×66.421×19.050 0.300
2558/2530 30.162×66.421×25.400 0.430
2558/2523 30.162×69.850×23.812 0.460
2558/2523-S 30.162×69.850×23.812 0.460
3187/3120 30.162×72.626×30.162 0.600
3191/3120 30.162×72.626×30.162 0.600
28118/28300 30.162×76.200×20.638 0.470
43118/43300 30.162×76.200×24.608 0.520
43118/43312 30.162×79.375×25.400 0.600
28118/28315 30.162×80.000×21.006 0.530

Questions that help when 26880-26822 and 26880/22 is on the shortlist

When is 26880-26822 and 26880/22 worth comparing against nearby taper roller bearings options?

Comparison helps when dimensional fit is only part of the decision and load direction, sealing, clearance, speed, temperature, or repeat-order stability still need to be confirmed. Reviewing one or two nearby options early usually reduces sourcing mistakes later.

What details usually matter before approving 26880-26822 and 26880/22 for repeat supply?

Buyers normally confirm the part reference, main dimensions, application, speed range, operating environment, sealing needs, and any packaging or marking requirements. That gives the supplier a cleaner basis for confirming availability and suitable alternatives.

Which next step usually helps after 26880-26822 and 26880/22 is shortlisted?

A quick review of Taper Roller Bearings, one more commercial destination, and one practical guide usually saves time. That combination helps separate simple replacement orders from jobs that still need fit or application review.

Why keep a supporting guide linked beside 26880-26822 and 26880/22?

Because it makes later decisions faster. When sizing notes, application cues, and nearby options stay close to the product, engineering, purchasing, and maintenance teams can revisit the same logic without starting the review from zero.
