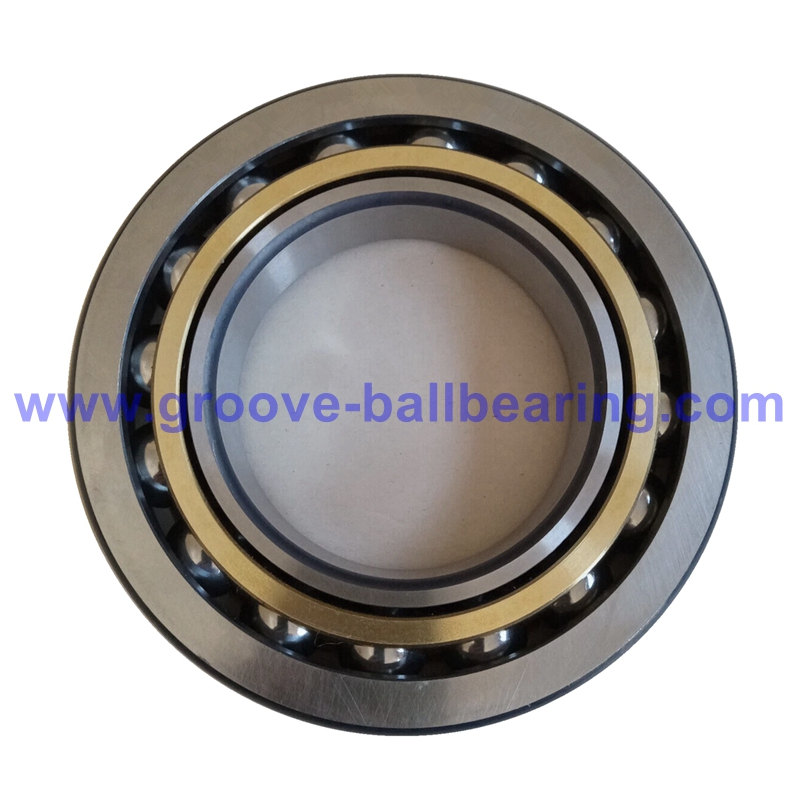

7217-B-XL-MP Bearing 7217-B-XL-MP-UA Angular Contact Ball Bearing
Bore (d): 85mm
Outer Diameter (D): 150mm
Width (B): 28mm
Mass: 2kg/ 4.409lb
Material: bearing steel
Seal Type: open
B: 40° contact angle
MP: solid brass cage, ball guided
UA: universal mounting with O and X configurations
7217-B-XL-MP Bearing Specification:
7217-B-XL-MP Bearing Bore (d): 85mm
Outer Diameter (D): 150mm
Width (B): 28mm
Mass: 2kg/ 4.409lb
Material: bearing steel
Reference Speed: 4800RPM
Seal Type: open
B: 40° contact angle
MP: solid brass cage, ball guided
UA: universal mounting with O and X configurations
XL: X-life
Lubrication: grease or oil
Operating Temperature: -30 to 120 °C
Category: angular contact ball bearing, single row
Equivalents: 7217-B-XL-MP-UA, 7217B.MP.UA, 7217B.MP.UA.XL, 7217-B-MP, 7217B.MP
Applications:
Typical applications for the 7217-B-XL-MP bearing include:
1. Machine Tool Spindles – Used in high-speed machining centers for optimal performance.
2. Automotive Industry – Utilized in various automotive components such as gearboxes and hubs.
3. Conveyor Systems – For smooth operation in conveying machinery.
4. Heavy Machinery – Applied in construction and agricultural machinery for enhanced durability.
5. Industrial Fans – Used in ventilation systems for efficient rotation.
Key Features:
1. High Precision – Delivers exceptional accuracy in rotation and positioning, making it ideal for applications requiring tight tolerances.
2. Durable Design – Engineered to withstand demanding operating conditions and heavy loads, ensuring long-lasting performance in various environments.
3. Low Friction – Reduces energy loss during operation, contributing to improved efficiency and performance in machinery and equipment.
4. Universal Mounting – Offers versatile adaptability to different setups and configurations, streamlining installation and maintenance processes.
5. Robust Construction – Features a machined brass cage that provides added strength and reliability, making it suitable for rigorous industrial applications.
Questions that help when 7217-B-XL-MP and 7217-B-XL-MP-UA is on the shortlist
When is 7217-B-XL-MP and 7217-B-XL-MP-UA worth comparing against nearby angular contact ball bearings options?
Comparison helps when dimensional fit is only part of the decision and load direction, sealing, clearance, speed, temperature, or repeat-order stability still need to be confirmed. Reviewing one or two nearby options early usually reduces sourcing mistakes later.
What details usually matter before approving 7217-B-XL-MP and 7217-B-XL-MP-UA for repeat supply?
Buyers normally confirm the part reference, main dimensions, application, speed range, operating environment, sealing needs, and any packaging or marking requirements. That gives the supplier a cleaner basis for confirming availability and suitable alternatives.
Which next step usually helps after 7217-B-XL-MP and 7217-B-XL-MP-UA is shortlisted?
A quick review of Angular Contact Ball Bearings, one more commercial destination, and one practical guide usually saves time. That combination helps separate simple replacement orders from jobs that still need fit or application review.
Why keep a supporting guide linked beside 7217-B-XL-MP and 7217-B-XL-MP-UA?
Because it makes later decisions faster. When sizing notes, application cues, and nearby options stay close to the product, engineering, purchasing, and maintenance teams can revisit the same logic without starting the review from zero.
Shipping Method:
1. Sea shipping for mass cargos (GW > 500KGS)
2. Air shipping (GW between 100KGS – 500 KGS)
3. Express, such as DHL, TNT, Fedex, UPS for small cargos ( GW < 100KGS)
4. If you have shipping agent in China, we can send goods to your shipping agent's warehouse
Payment Terms:
We accept T/T, W/U, PAYPAL, L/C etc
