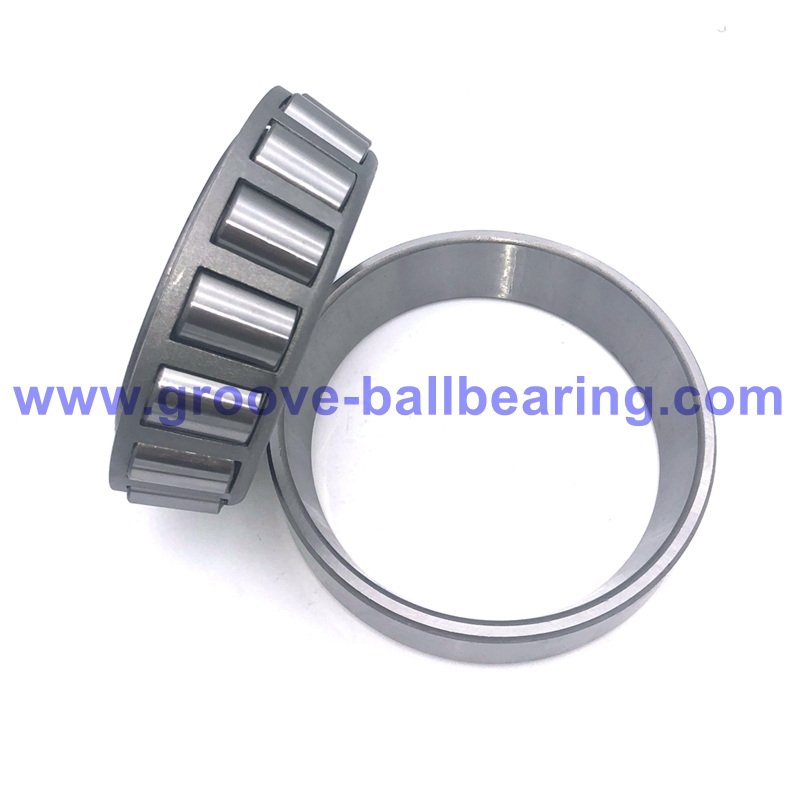

3187-3120 Bearing 3187/20 Taper Roller Bearings
Bore Type: round
Inner Diameter (d): 30.162mm
Outer Diameter (D): 72.626mm
Cone Width (B): 29.997mm
Total Width (T): 30.163mm
Mass: 0.59kg/ 1.301lb
Cone Number: 3187
Cup Number: 3120
Lubrication: without oil holes
3187-3120 Bearing Specification:
3187-3120 Bearing Bore Type: round
Inner Diameter (d): 30.162mm
Outer Diameter (D): 72.626mm
Cone Width (B): 29.997mm
Total Width (T): 30.163mm
Mass: 0.59kg/ 1.301lb
Cone Number: 3187
Cup Number: 3120
Enclosure: open
Material: bearing steel
Lubrication: without oil holes
Precision: standard ABEC1, P0
Operating Temperature Range: -30ºC to 120 ºC
Interchange Numbers: 3187 – 3120, 3187/3120, 3187/20
Our Single Row Taper Roller Bearing Selection:
| Model Number | Dimensions (mm) | Mass (kg) |
| 15116/15250 | 30.112×63.500×20.638 | 0.290 |
| 08118/08231 | 30.162×58.738×14.684 | 0.170 |
| 08118/08237 | 30.162×58.788×14.684 | 0.170 |
| 17119/17244 | 30.162×62.000×16.002 | 0.230 |
| M86649/M86610 | 30.162×64.292×21.433 | 0.340 |
| M86649P/M86610P | 30.162×64.292×21.433 | 0.340 |
| 24118/24261 | 30.162×66.421×19.050 | 0.300 |
| 2558/2530 | 30.162×66.421×25.400 | 0.430 |
| 2558/2523 | 30.162×69.850×23.812 | 0.460 |
| 2558/2523-S | 30.162×69.850×23.812 | 0.460 |
| 3187/3120 | 30.162×72.626×30.162 | 0.600 |
| 3191/3120 | 30.162×72.626×30.162 | 0.600 |
| 28118/28300 | 30.162×76.200×20.638 | 0.470 |
| 43118/43300 | 30.162×76.200×24.608 | 0.520 |
| 43118/43312 | 30.162×79.375×25.400 | 0.600 |
| 28118/28315 | 30.162×80.000×21.006 | 0.530 |
| 15120A/15245 | 30.175×62.000×19.050 | 0.260 |
| 15118/15244 | 30.213×62.000×20.638 | 0.270 |
| 15120/15244 | 30.213×62.000×20.638 | 0.280 |
| 15118/15250 | 30.213×63.500×20.638 | 0.290 |
| 15119/15249 | 30.213×63.500×20.638 | 0.290 |
| 15119/15250 | 30.213×63.500×20.638 | 0.290 |
| 15120/15250 | 30.213×63.500×20.638 | 0.290 |
| 15118/15250X | 30.213×63.500×20.638 | 0.290 |
| 2561X/2520 | 30.213×66.421×25.400 | 0.410 |
| 2561X/2523 | 30.213×69.850×23.812 | 0.460 |
| 2561X/2523-S | 30.213×69.850×23.812 | 0.460 |
| 14116/14276 | 30.226×69.012×19.845 | 0.360 |
Questions that help when 3187-3120 and 3187/20 is on the shortlist
When is 3187-3120 and 3187/20 worth comparing against nearby taper roller bearings options?
Comparison helps when dimensional fit is only part of the decision and load direction, sealing, clearance, speed, temperature, or repeat-order stability still need to be confirmed. Reviewing one or two nearby options early usually reduces sourcing mistakes later.
What details usually matter before approving 3187-3120 and 3187/20 for repeat supply?
Buyers normally confirm the part reference, main dimensions, application, speed range, operating environment, sealing needs, and any packaging or marking requirements. That gives the supplier a cleaner basis for confirming availability and suitable alternatives.
Which next step usually helps after 3187-3120 and 3187/20 is shortlisted?
A quick review of Taper Roller Bearings, one more commercial destination, and one practical guide usually saves time. That combination helps separate simple replacement orders from jobs that still need fit or application review.
Why keep a supporting guide linked beside 3187-3120 and 3187/20?
Because it makes later decisions faster. When sizing notes, application cues, and nearby options stay close to the product, engineering, purchasing, and maintenance teams can revisit the same logic without starting the review from zero.
Shipping Method:
1. Sea shipping for mass cargos (GW > 500KGS)
2. Air shipping (GW between 100KGS – 500 KGS)
3. Express, such as DHL, TNT, Fedex, UPS for small cargos ( GW < 100KGS)
4. If you have shipping agent in China, we can send goods to your shipping agent's warehouse
Payment Terms:
We accept T/T, W/U, PAYPAL, L/C etc
Buyer FAQ
Questions buyers ask before choosing the next bearing option
What should I confirm before ordering 3187-3120 Bearing 3187/20 Taper Roller Bearings?
Confirm the bearing number, bore size, outside diameter, width, seal or shield type, cage material, clearance, precision level, quantity, and application. These details help prevent a size match from becoming a performance mismatch.
Can this bearing be matched for replacement or repeat supply?
Yes. Replacement and repeat orders are easier when the original marking, measured dimensions, photos, application, and quantity are available. If the marking is unclear, the team can start from the size and working condition.
Which product family does this bearing belong to?
This item is handled within the Taper Roller Bearings family. Comparing the family page can help buyers review similar sizes, seal options, load direction, and related bearing choices before requesting a quote.
What affects price and lead time for this bearing?
Price and lead time can change with quantity, stock availability, precision grade, clearance, material, cage, seal or shield type, lubrication, packaging, and whether the order needs standard matching or custom production.
How is this bearing checked before delivery?
Inspection can include material review, dimensional measurement, noise and vibration checks, surface and crack checks, visual review, and packaging inspection according to the confirmed order requirements.
Need help checking fit, price, or lead time? Request a bearing quote
