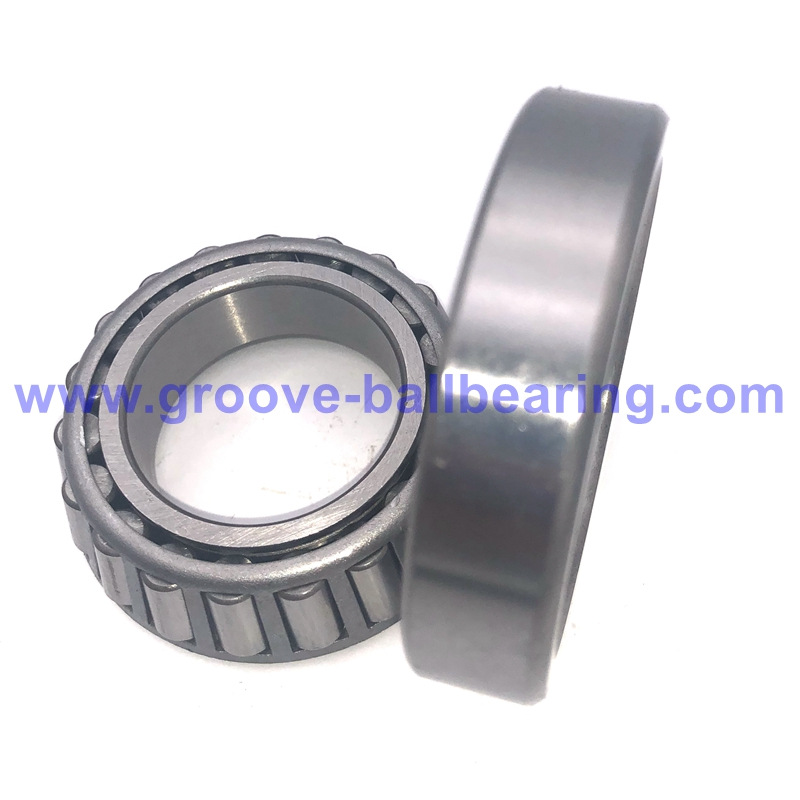

JHM88540-JHM88513 Bearing JHM88540/513 Roller Bearing
Bore (d): 30mm
Outer Diameter (D): 72mm
Cone Width (B): 27.783mm
Total Width (T): 29.370mm
Mass: 0.61kg/ 1.345lb
Cone Number: JHM88540
Cup Number: JHM88513
Cage: stamped steel
Bearing Material: bearing steel
JHM88540-JHM88513 Bearing Information:
JHM88540-JHM88513 Bearing Bore (d): 30mm
Outer Diameter (D): 72mm
Cone Width (B): 27.783mm
Total Width (T): 29.370mm
Mass: 0.61kg/ 1.345lb
Cone Number: JHM88540
Cup Number: JHM88513
Cage: stamped steel
Bearing Material: bearing steel
Lubrication: standard grease or oil
Relubricate Holes: without
Precision: ABEC1, P0
Structure: single row taper roller bearing
Equivalents: JHM88540 – JHM88513, JHM88540/JHM88513, JHM88540 / JHM88513, JHM88540/513, JHM88540-90K01, JHM88540-99401, 4T-JHM88540/JHM88513PX1
FAQ:
Q1: What type of bearing is JHM88540-JHM88513?
A1: It’s a single-row tapered roller bearing set (cone and cup set).
Q2: What loads does it handle?
A2: It carries heavy radial loads and axial (thrust) loads in one direction.
Q3: Can I separate the parts?
A3: Yes. You can separate the cone (inner ring, rollers, cage) from the cup (outer ring).
Q4: Where can I use it?
A4: Use it in axles, gearboxes, transmissions, and heavy machinery with combined loads.
Q5: How do I get two-way axial support?
A5: Mount two bearings in back-to-back, face-to-face, or tandem arrangements and set the required preload.
Questions that usually come up before ordering JHM88540-JHM88513 and JHM88540/513
When is JHM88540-JHM88513 and JHM88540/513 worth comparing against nearby taper roller bearings options?
Comparison helps when dimensional fit is only part of the decision and load direction, sealing, clearance, speed, temperature, or repeat-order stability still need to be confirmed. Reviewing one or two nearby options early usually reduces sourcing mistakes later.
What details usually matter before approving JHM88540-JHM88513 and JHM88540/513 for repeat supply?
Buyers normally confirm the part reference, main dimensions, application, speed range, operating environment, sealing needs, and any packaging or marking requirements. That gives the supplier a cleaner basis for confirming availability and suitable alternatives.
Which next step usually helps after JHM88540-JHM88513 and JHM88540/513 is shortlisted?
A quick review of Taper Roller Bearings, one more commercial destination, and one practical guide usually saves time. That combination helps separate simple replacement orders from jobs that still need fit or application review.
Why keep a supporting guide linked beside JHM88540-JHM88513 and JHM88540/513?
Because it makes later decisions faster. When sizing notes, application cues, and nearby options stay close to the product, engineering, purchasing, and maintenance teams can revisit the same logic without starting the review from zero.
Shipping Method:
1. Sea shipping for mass cargos (GW > 500KGS)
2. Air shipping (GW between 100KGS – 500 KGS)
3. Express, such as DHL, TNT, Fedex, UPS for small cargos ( GW < 100KGS)
4. If you have shipping agent in China, we can send goods to your shipping agent's warehouse
Payment Terms:
We accept T/T, W/U, PAYPAL, L/C etc
