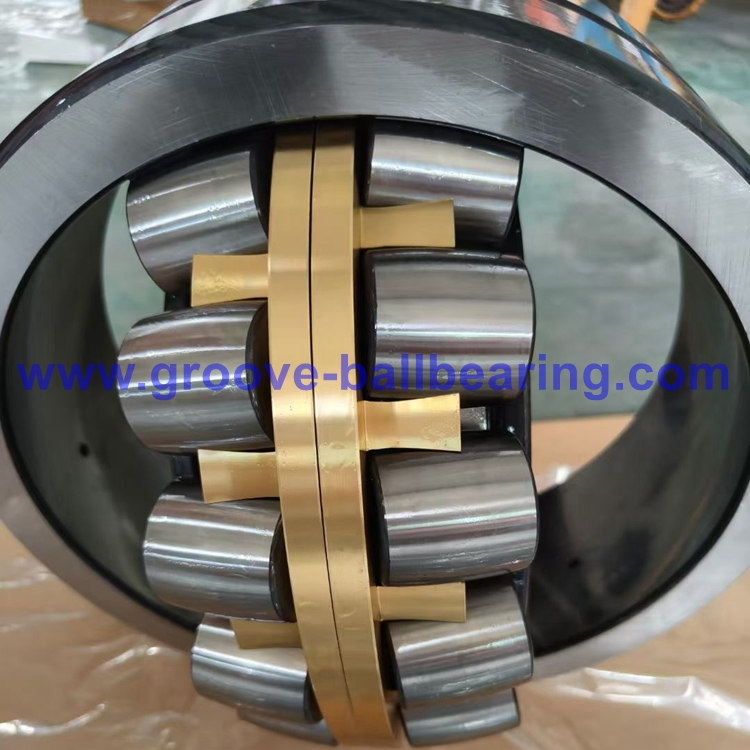

22332MA Bearing 22332-A-MA-T41A Roller Bearing For Vibrating Screens
Inner Diameter: 160mm
Outer Diameter: 340mm
Width: 114mm
Material: Bearing steel
Mass: 50kg/piece
Application: Vibrating screens
Internal Play: C4
MA: Brass cage, centered on outer ring
22332MA Bearing Specification:
22332MA bearing belongs to spherical roller bearing structure, for this bearing
Inner Diameter: 160mm
Outer Diameter: 340mm
Width: 114mm
Material: Bearing steel
Mass: 50kg/piece
Sealing: Without
Relubrication Feature: with
Application: Vibrating screens
Operating Temperature: 70 to 80 °C (160 to 175 °F)
Internal Play: C4
A: Modified internal structure
MA: Brass cage, centered on outer ring
T41A: Spherical roller bearings for vibrating screens
Also known as: 22332-A-MA-T41A, 22332-A-MA-C4, 22332MA C4, 22332-BEA-XL-MA1-T41A, 22332MA C4 W33, etc
Vibrating Screens Bearing Key Features:
Bearings for vibrating screens are specially engineered to handle high loads, vibration, contamination, and misalignment, ensuring long service life and reliable operation in tough conditions. Key characteristics of bearings designed for vibrating screens include:
High Load-Carrying Capacity: 22332MA bearings are designed to support heavy radial and axial loads due to the weight of the screen and material.
Optimized Robust Cage Design: The use of hardened window-type cages minimizes friction and wear during operation with a rotating outer ring and high acceleration, leading to reduced operating temperatures and extended lubricant life.
Enhanced Vibration Resistance: Special internal designs (e.g., increased internal clearance C4) to accommodate vibration and prevent premature failure.
Heat Resistance: Heat-stabilized components to withstand elevated operating temperatures.
Order Process:
- Submit Your Inquiry: Send us your bearing model number and quantity. If you require a custom bearing, please attach your drawing.
- Receive Our Response: We will reply within 24 hours. If we have enough information, we’ll provide a quotation; otherwise, we’ll request further details.
- Confirm and Pay: Once you accept our quotation, we’ll issue an invoice. Payment methods include T/T, Western Union, and PayPal.
- Production and Delivery: After receiving your payment, we will prepare your bearings and arrange shipment promptly.
Questions that help when 22332MA and 22332-A-MA-T41A is on the shortlist
When is 22332MA and 22332-A-MA-T41A worth comparing against nearby spherical roller bearings options?
Comparison helps when dimensional fit is only part of the decision and load direction, sealing, clearance, speed, temperature, or repeat-order stability still need to be confirmed. Reviewing one or two nearby options early usually reduces sourcing mistakes later.
What details usually matter before approving 22332MA and 22332-A-MA-T41A for repeat supply?
Buyers normally confirm the part reference, main dimensions, application, speed range, operating environment, sealing needs, and any packaging or marking requirements. That gives the supplier a cleaner basis for confirming availability and suitable alternatives.
Which next step usually helps after 22332MA and 22332-A-MA-T41A is shortlisted?
A quick review of Spherical Roller Bearings, one more commercial destination, and one practical guide usually saves time. That combination helps separate simple replacement orders from jobs that still need fit or application review.
Why keep a supporting guide linked beside 22332MA and 22332-A-MA-T41A?
Because it makes later decisions faster. When sizing notes, application cues, and nearby options stay close to the product, engineering, purchasing, and maintenance teams can revisit the same logic without starting the review from zero.
Shipping Method:
1. Sea shipping for mass cargos (GW > 500KGS)
2. Air shipping (GW between 100KGS – 500 KGS)
3. Express, such as DHL, TNT, Fedex, UPS for small cargos ( GW < 100KGS)
4. If you have shipping agent in China, we can send goods to your shipping agent's warehouse
Payment Terms:
We accept T/T, W/U, PAYPAL, L/C etc
Buyer FAQ
Questions buyers ask before choosing the next bearing option
What should I confirm before ordering 22332MA Bearing 22332-A-MA-T41A Roller Bearing For Vibrating Screens?
Confirm the bearing number, bore size, outside diameter, width, seal or shield type, cage material, clearance, precision level, quantity, and application. These details help prevent a size match from becoming a performance mismatch.
Can this bearing be matched for replacement or repeat supply?
Yes. Replacement and repeat orders are easier when the original marking, measured dimensions, photos, application, and quantity are available. If the marking is unclear, the team can start from the size and working condition.
Which product family does this bearing belong to?
This item is handled within the Spherical Roller Bearings family. Comparing the family page can help buyers review similar sizes, seal options, load direction, and related bearing choices before requesting a quote.
What affects price and lead time for this bearing?
Price and lead time can change with quantity, stock availability, precision grade, clearance, material, cage, seal or shield type, lubrication, packaging, and whether the order needs standard matching or custom production.
How is this bearing checked before delivery?
Inspection can include material review, dimensional measurement, noise and vibration checks, surface and crack checks, visual review, and packaging inspection according to the confirmed order requirements.
