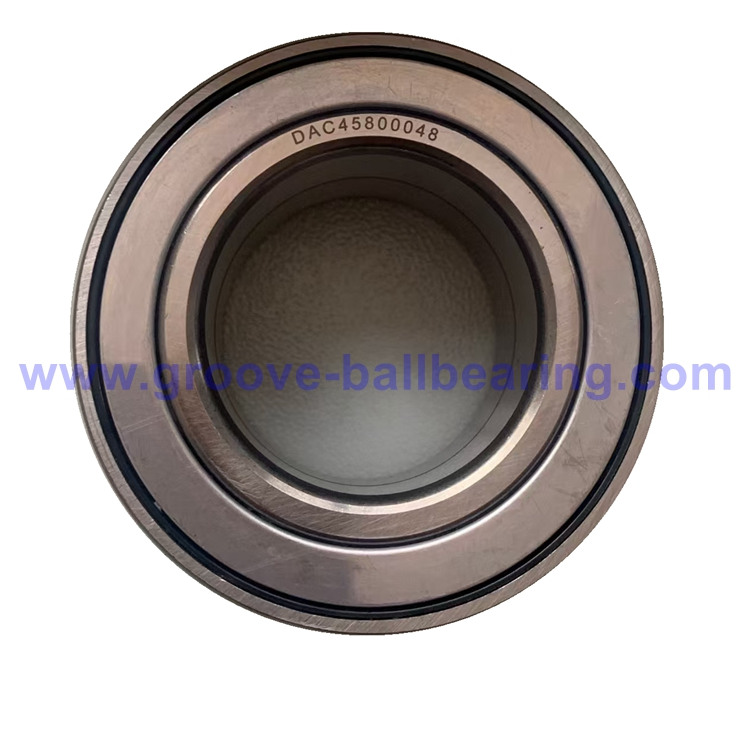

DAC45800048 Bearing 45*80*48 Wheel Hub Bearing FC40096
Inner Diameter: 45mm
Outer Diameter: 80mm
Width: 48mm
Mass: 0.92kg
Material: bearing steel
Sealing type: double sealed
DAC45800048 Bearing Specification:
DAC45800048 bearing is double row angular contact ball bearing.
Inner Diameter: 45mm
Outer Diameter: 80mm
Width: 48mm
Mass: 0.92kg
Material: bearing steel SAE52100, AISI 52100
Sealing type: double sealed
Also known as: DAC45800048, DAC458048, FC40096, FC40096 S05
Bearing DAC45800048 Features:
High Load Capacity: Designed to handle both radial and axial loads, making it ideal for automotive wheel hub applications.
Sealed Design: Equipped with high-quality seals to prevent contamination from dust, dirt, and moisture, ensuring longer service life.
Durable Materials: Made from premium-grade bearing steel for enhanced strength, durability, and resistance to wear and corrosion.
Low Maintenance: Maintenance-free operation due to DAC45800048 bearings’ sealed and pre-lubricated construction.
Wheel Hub Bearing Model Number List:
| Bearing Code | FAG Code | SKF Code | NSK Code | Size | Weight | |||
| d | D | B | C | |||||
| DAC20420030/ 29 | 565592 | 20 | 42 | 29 | 30 | 0.18 | ||
| DAC20500206 | 156704 | 20 | 50 | 20.6 | 20.6 | 0.17 | ||
| DAC20500206 | 617546A | 25 | 52 | 20.6 | 20.6 | 0.19 | ||
| DAC2552037 | 546467/ 576467 | BT2B445539AA | 25 | 52 | 37 | 37 | 0.31 | |
| DAC25520040 | 25 | 52 | 40 | 40 | 0.35 | |||
| DAC25520042 | 25BWD01 | 25 | 52 | 42 | 42 | 0.36 | ||
| DAC25520043 | 25 | 52 | 45 | 43 | 0.37 | |||
| DAC2050043/45 | 25 | 52 | 45 | 43 | 0.37 | |||
| DAC25550043 | 25 | 55 | 43 | 43 | 0.44 | |||
| DAC2550045 | 25 | 55 | 45 | 45 | 0.46 | |||
| DAC255600206/ 29 | 633280 | 25 | 56 | 29 | 20.6 | 0.28 | ||
| DAC25560032 | 445979 | BAH5000 | 25 | 56 | 32 | 32 | 0.34 | |
| DAC256000206/ 29 | 633272 | 25 | 60 | 29 | 20.6 | 0.33 | ||
| DAC25620028/ 17 | GB10827 (SNR) | 25 | 62 | 17 | 28 | 0.19 | ||
| DAC25720043 | 25 | 72 | 43 | 43 | 0.88 | |||
| DAC27520045/ 43 | 801437 | 27KWD02 | 27 | 52 | 43 | 45 | 0.34 | |
| DAC27520050 | 27 | 60 | 50 | 50 | 0.38 | |||
| DAC2760050 | FW120 | 27BWDO1J | 27 | 60 | 50 | 50 | 0.56 | |
| DAC28580042 | 28WD03ACA51 | 28 | 58 | 42 | 42 | 0.47 | ||
| DAC286142 | VKBA1346 | 28BWD01ACA60 | 28 | 61 | 42 | 42 | 0.56 | |
| DAC39530037 | 801023AB | 29 | 53 | 37 | 37 | 0.35 | ||
| DAC30580042 | 30KWD01AG3 | 30 | 58 | 42 | 42 | 0.4 | ||
| DAC3060037 | 52981AB | BA2B633313CA | 30BWD07 | 30 | 60.3 | 37 | 37 | 0.42 |
| DAC3060037 | 54312/ 581736 | 434201B/ VKBA1307 | 30BWD07 | 30 | 60.3 | 37 | 37 | 0.42 |
| DAC30600337-4RS | 30 | 60.3 | 37 | 37 | 0.41 | |||
| DAC3060037/ 43 | 30 | 60 | 37 | 37 | ||||
| DAC30630042 | VKBA1344 | 30BWD01AC70 | 30 | 63 | 42 | 42 | 0.56 | |
| DAC3063030042 | 30 | 63.03 | 42 | 42 | 0.56 | |||
| DAC30640042 | 30BWD03ACA78 | 30 | 64 | 42 | 42 | 0.49 | ||
| DAC30650021 | 522372 | 630374/CA | 30 | 65 | 21 | 21 | 0.27 | |
Questions that help when DAC45800048 and FC40096 is on the shortlist
When is DAC45800048 and FC40096 worth comparing against nearby wheel hub bearings options?
Comparison helps when dimensional fit is only part of the decision and load direction, sealing, clearance, speed, temperature, or repeat-order stability still need to be confirmed. Reviewing one or two nearby options early usually reduces sourcing mistakes later.
What details usually matter before approving DAC45800048 and FC40096 for repeat supply?
Buyers normally confirm the part reference, main dimensions, application, speed range, operating environment, sealing needs, and any packaging or marking requirements. That gives the supplier a cleaner basis for confirming availability and suitable alternatives.
Which next step usually helps after DAC45800048 and FC40096 is shortlisted?
A quick review of Wheel Hub Bearings, one more commercial destination, and one practical guide usually saves time. That combination helps separate simple replacement orders from jobs that still need fit or application review.
Why keep a supporting guide linked beside DAC45800048 and FC40096?
Because it makes later decisions faster. When sizing notes, application cues, and nearby options stay close to the product, engineering, purchasing, and maintenance teams can revisit the same logic without starting the review from zero.
Shipping Method:
1. Sea shipping for mass cargos (GW > 500KGS)
2. Air shipping (GW between 100KGS – 500 KGS)
3. Express, such as DHL, TNT, Fedex, UPS for small cargos ( GW < 100KGS)
4. If you have shipping agent in China, we can send goods to your shipping agent's warehouse
Payment Terms:
We accept T/T, W/U, PAYPAL, L/C etc
Buyer FAQ
Questions buyers ask before choosing the next bearing option
What should I confirm before ordering DAC45800048 Bearing 45*80*48 Wheel Hub Bearing FC40096?
Confirm the bearing number, bore size, outside diameter, width, seal or shield type, cage material, clearance, precision level, quantity, and application. These details help prevent a size match from becoming a performance mismatch.
Can this bearing be matched for replacement or repeat supply?
Yes. Replacement and repeat orders are easier when the original marking, measured dimensions, photos, application, and quantity are available. If the marking is unclear, the team can start from the size and working condition.
Which product family does this bearing belong to?
This item is handled within the Wheel Hub Bearings family. Comparing the family page can help buyers review similar sizes, seal options, load direction, and related bearing choices before requesting a quote.
What affects price and lead time for this bearing?
Price and lead time can change with quantity, stock availability, precision grade, clearance, material, cage, seal or shield type, lubrication, packaging, and whether the order needs standard matching or custom production.
How is this bearing checked before delivery?
Inspection can include material review, dimensional measurement, noise and vibration checks, surface and crack checks, visual review, and packaging inspection according to the confirmed order requirements.
Need help checking fit, price, or lead time? Request a bearing quote
