22322E Bearing 22322 E/C3 Spherical Roller Bearing 110x240x80
Bore: 110mm
Outer Diameter: 240mm
Width: 80mm
Mass: 17.7kg/ 39.02lb
Sheilds: without
Cage: steel cage
Material: 52100 steel
Limiting Speed: 2000RPM
22322E Bearing Information
22322E bearing features a spherical roller bearing design.
Regarding this bearing model,
Bore: 110mm
Outer Diameter: 240mm
Width: 80mm
Mass: 17.7kg/ 39.02lb
Sheilds: without
Cage: steel cage
Material: 52100 steel
Limiting Speed: 2000RPM
Radial Internal Clearance: C0 or C3
Warranty: 1 year
E: 2 window-type steel cages with the guide ring centered on each cage.
Double Row Spherical Roller Bearings Available:
| Bearing Model | d/mm | D/mm | B/mm | Mass/kg |
| 22317 EKJA/VA405 | 85 | 180 | 60 | 7.5 |
| 22218 E | 90 | 160 | 40 | 3.4 |
| 22218 EK | 90 | 160 | 40 | 3.35 |
| BS2-2218-2CS | 90 | 160 | 48 | 3.7 |
| BS2-2218-2CSK | 90 | 160 | 48 | 3.6 |
| 23218 CC/W33 | 90 | 160 | 52.4 | 4.65 |
| 23218 CCK/W33 | 90 | 160 | 52.4 | 4.5 |
| 21318 E | 90 | 190 | 43 | 6.1 |
| 21318 EK | 90 | 190 | 43 | 6 |
| 22318 E | 90 | 190 | 64 | 9.05 |
| 22318 EJA/VA405 | 90 | 190 | 64 | 9.05 |
| 22318 EK | 90 | 190 | 64 | 8.85 |
| 22318 EKJA/VA405 | 90 | 190 | 64 | 8.85 |
| 22219 E | 95 | 170 | 43 | 4.15 |
| 22219 EK | 95 | 170 | 43 | 4.05 |
| 21319 E | 95 | 200 | 45 | 7.05 |
| 21319 EK | 95 | 200 | 45 | 6.95 |
| 22319 E | 95 | 200 | 67 | 10.5 |
| 22319 EJA/VA405 | 95 | 200 | 67 | 10.5 |
| 22319 EK | 95 | 200 | 67 | 10.5 |
| 22319 EKJA/VA405 | 95 | 200 | 67 | 10.5 |
| 24020 CC/W33 | 100 | 150 | 50 | 3.15 |
| 24020 CCK30/W33 | 100 | 150 | 50 | 3.1 |
| 24020-2CS2/VT143 | 100 | 150 | 50 | 3.2 |
| 23120 CC/W33 | 100 | 165 | 52 | 4.55 |
| 23120 CCK/W33 | 100 | 165 | 52 | 4.4 |
| 23120-2CS2/VT143 | 100 | 165 | 52 | 4.4 |
| 24120 CC/W33 | 100 | 165 | 65 | 5.65 |
| 24120 CCK30/W33 | 100 | 165 | 65 | 5.55 |
| 22220 E | 100 | 180 | 46 | 4.9 |
| 22220 EK | 100 | 180 | 46 | 4.8 |
| BS2-2220-2CS5/VT143 | 100 | 180 | 55 | 5.5 |
| 23220 CC/W33 | 100 | 180 | 60.3 | 6.85 |
| 23220 CCK/W33 | 100 | 180 | 60.3 | 6.65 |
| 23220-2CS | 100 | 180 | 60.3 | 6.7 |
| 21320 E | 100 | 215 | 47 | 8.6 |
| 21320 EK | 100 | 215 | 47 | 8.5 |
| 22320 E | 100 | 215 | 73 | 13.5 |
| 22320 EJA/VA405 | 100 | 215 | 73 | 13.5 |
| 22320 EK | 100 | 215 | 73 | 13 |
| 22320 EKJA/VA405 | 100 | 215 | 73 | 13 |
| 23022 CC/W33 | 110 | 170 | 45 | 3.8 |
| 23022 CCK/W33 | 110 | 170 | 45 | 3.7 |
| 23022-2CS | 110 | 170 | 45 | 3.75 |
| 24022 CC/W33 | 110 | 170 | 60 | 5 |
| 24022 CCK30/W33 | 110 | 170 | 60 | 4.9 |
| 23122 CC/W33 | 110 | 180 | 56 | 5.75 |
| 23122 CCK/W33 | 110 | 180 | 56 | 5.55 |
| 23122-2CS2/VT143 | 110 | 180 | 56 | 5.55 |
| 24122 CC/W33 | 110 | 180 | 69 | 7.1 |
| 24122 CCK30/W33 | 110 | 180 | 69 | 7 |
| 24122-2CS2/VT143 | 110 | 180 | 69 | 7 |
| 22222 E | 110 | 200 | 53 | 7 |
| 22222 EK | 110 | 200 | 53 | 6.85 |
| BS2-2222-2CS5/VT143 | 110 | 200 | 63 | 7.6 |
| 23222 CC/W33 | 110 | 200 | 69.8 | 9.85 |
| 23222 CCK/W33 | 110 | 200 | 69.8 | 9.55 |
| 22322 E | 110 | 240 | 80 | 18.4 |
| 22322 EJA/VA405 | 110 | 240 | 80 | 18.4 |
| 22322 EK | 110 | 240 | 80 | 18 |
| 22322 EKJA/VA405 | 110 | 240 | 80 | 18 |

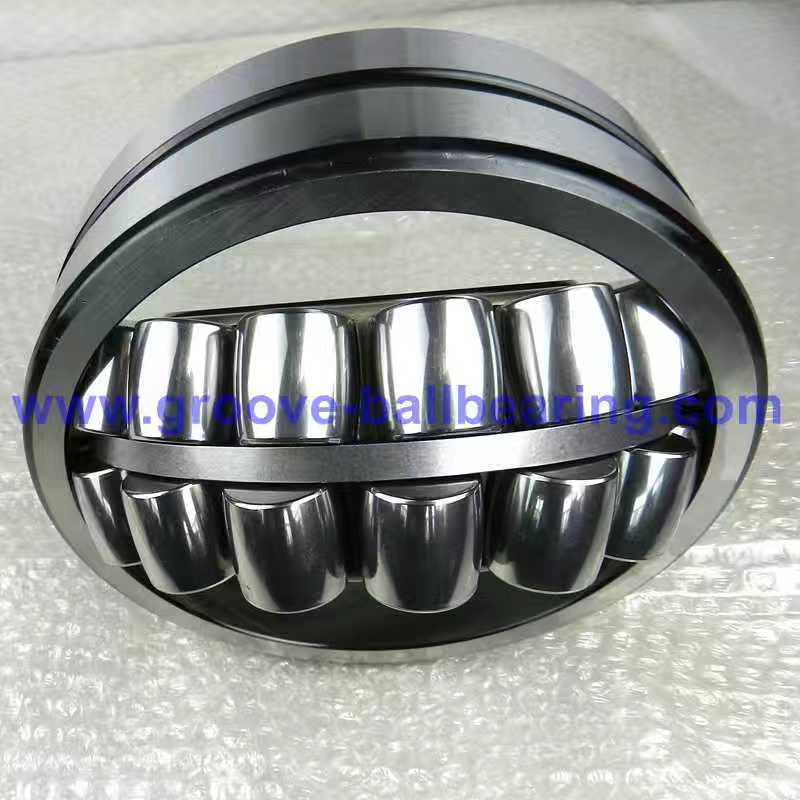

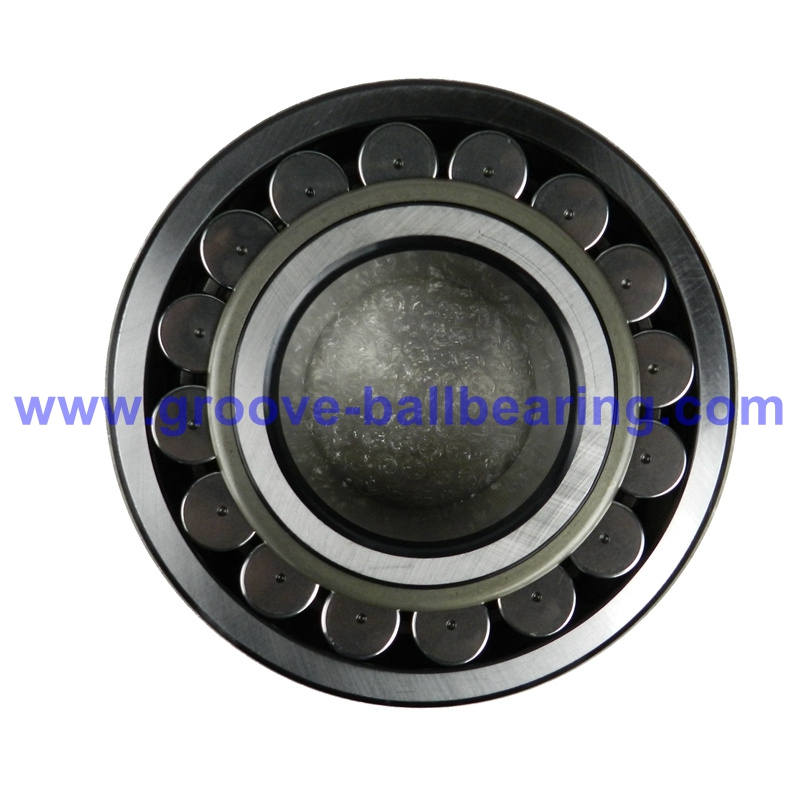

Bearing Photo:
Questions that usually come up before ordering 22322E and 22322
When is 22322E and 22322 worth comparing against nearby spherical roller bearings options?
Comparison helps when dimensional fit is only part of the decision and load direction, sealing, clearance, speed, temperature, or repeat-order stability still need to be confirmed. Reviewing one or two nearby options early usually reduces sourcing mistakes later.
What details usually matter before approving 22322E and 22322 for repeat supply?
Buyers normally confirm the part reference, main dimensions, application, speed range, operating environment, sealing needs, and any packaging or marking requirements. That gives the supplier a cleaner basis for confirming availability and suitable alternatives.
Which next step usually helps after 22322E and 22322 is shortlisted?
A quick review of Spherical Roller Bearings, one more commercial destination, and one practical guide usually saves time. That combination helps separate simple replacement orders from jobs that still need fit or application review.
Why keep a supporting guide linked beside 22322E and 22322?
Because it makes later decisions faster. When sizing notes, application cues, and nearby options stay close to the product, engineering, purchasing, and maintenance teams can revisit the same logic without starting the review from zero.
Shipping Method:
1. Sea shipping for mass cargos (GW > 500KGS)
2. Air shipping (GW between 100KGS – 500 KGS)
3. Express, such as DHL, TNT, Fedex, UPS for small cargos ( GW < 100KGS)
4. If you have shipping agent in China, we can send goods to your shipping agent's warehouse
Payment Terms:
We accept T/T, W/U, PAYPAL, L/C etc
Buyer FAQ
Questions buyers ask before choosing the next bearing option
What should I confirm before ordering 22322E Bearing 22322 E/C3 Spherical Roller Bearing 110x240x80?
Confirm the bearing number, bore size, outside diameter, width, seal or shield type, cage material, clearance, precision level, quantity, and application. These details help prevent a size match from becoming a performance mismatch.
Can this bearing be matched for replacement or repeat supply?
Yes. Replacement and repeat orders are easier when the original marking, measured dimensions, photos, application, and quantity are available. If the marking is unclear, the team can start from the size and working condition.
Which product family does this bearing belong to?
This item is handled within the Spherical Roller Bearings family. Comparing the family page can help buyers review similar sizes, seal options, load direction, and related bearing choices before requesting a quote.
What affects price and lead time for this bearing?
Price and lead time can change with quantity, stock availability, precision grade, clearance, material, cage, seal or shield type, lubrication, packaging, and whether the order needs standard matching or custom production.
How is this bearing checked before delivery?
Inspection can include material review, dimensional measurement, noise and vibration checks, surface and crack checks, visual review, and packaging inspection according to the confirmed order requirements.
Need help checking fit, price, or lead time? Request a bearing quote
