22318E Bearing 22318 E Spherical Roller Bearing 90MM Bore
Bore (d): 90mm
Outer Diameter (D): 190mm
Width (B): 64mm
Mass: 8.7kg/ 19.18lb
Cage: sheet metal
Material: bearing steel
Sheilds: without
Category: spherical roller bearing
22318E Bearing Specification:
22318E Bearing Bore (d): 90mm
Outer Diameter (D): 190mm
Width (B): 64mm
Mass: 8.7kg/ 19.18lb
Cage: sheet metal
Material: bearing steel
Sheilds: without
Number of Row: double
Category: spherical roller bearing
Relubricate Holes: with
Radial Internal Clearance: standard C0, C3 is also available
E: Two window-type steel cages, guide ring centered on the cage
Operating Temperature: -30°C to 120 °C
Equivalents: 22318 E, 22318-E, 22318 E/C3, 22318E/C3, 22318-E-C3, 22318-E1-XL
Key Features:
1. 22318 E bearing supports high radial loads due to its large contact area and sturdy spherical design, ensuring reliable performance under heavy-duty conditions.
2. Uses a solid inner ring that rotates smoothly on two rows of symmetrical rollers, providing excellent stability, alignment, and durability during operation.
3. The concave, spherical outer raceway allows the bearing to compensate for misalignment and shaft deflections, reducing stress on the system and extending service life.
4. Suitable for demanding environments and widely applied in elevators, textile machinery, food processing machines, cranes, and other heavy machinery requiring high reliability and precise operation.

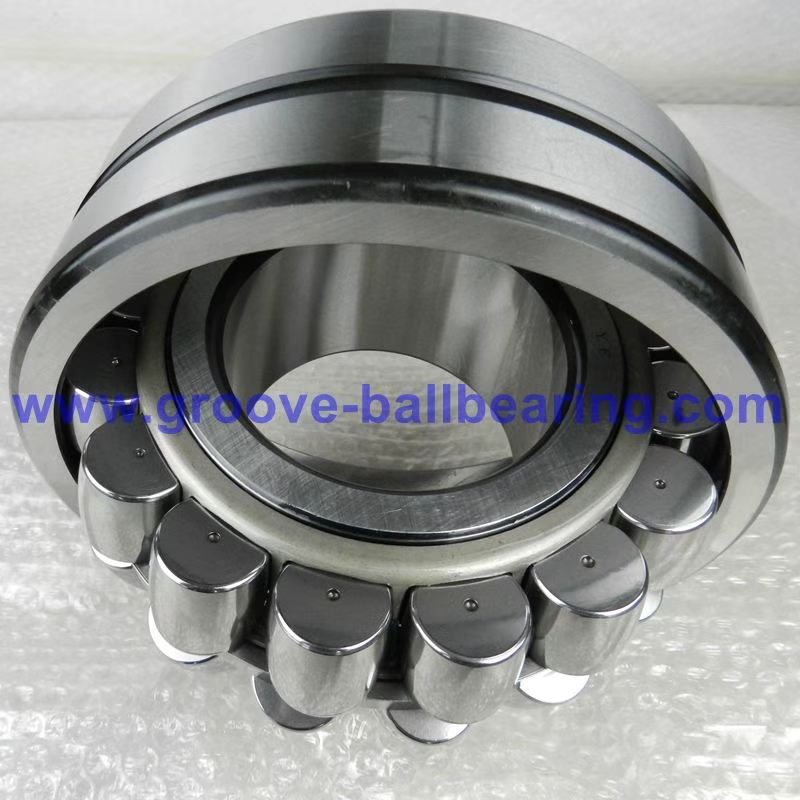

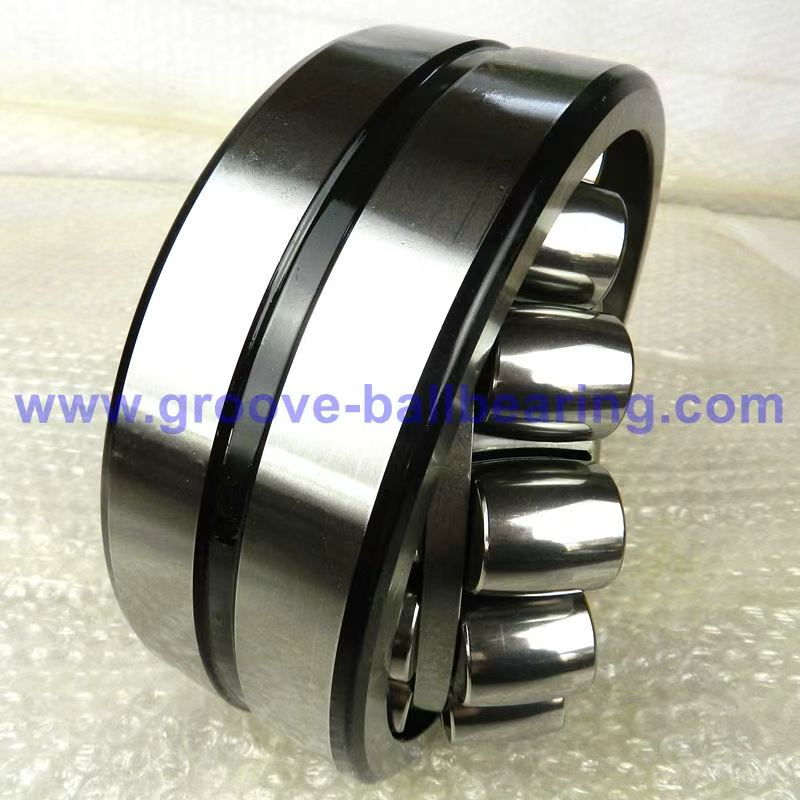

Bearing Photo:
Questions that usually come up before ordering 22318E and 22318
When is 22318E and 22318 worth comparing against nearby spherical roller bearings options?
Comparison helps when dimensional fit is only part of the decision and load direction, sealing, clearance, speed, temperature, or repeat-order stability still need to be confirmed. Reviewing one or two nearby options early usually reduces sourcing mistakes later.
What details usually matter before approving 22318E and 22318 for repeat supply?
Buyers normally confirm the part reference, main dimensions, application, speed range, operating environment, sealing needs, and any packaging or marking requirements. That gives the supplier a cleaner basis for confirming availability and suitable alternatives.
Which next step usually helps after 22318E and 22318 is shortlisted?
A quick review of Spherical Roller Bearings, one more commercial destination, and one practical guide usually saves time. That combination helps separate simple replacement orders from jobs that still need fit or application review.
Why keep a supporting guide linked beside 22318E and 22318?
Because it makes later decisions faster. When sizing notes, application cues, and nearby options stay close to the product, engineering, purchasing, and maintenance teams can revisit the same logic without starting the review from zero.
