Cone Number: HM516449C
Cup Number: HM516410
Bore: 3-1/4 inch/ 82.55mm
Outer Diameter: 5-1/4 inch/ 133.350 mm
Cone Width (B): 1.5625 inch/ 39.688 mm
Total Width (T): 1.5625 inch/ 39.688 mm
Mass: 2.20kg/ 4.85lb
Material: bearing steel

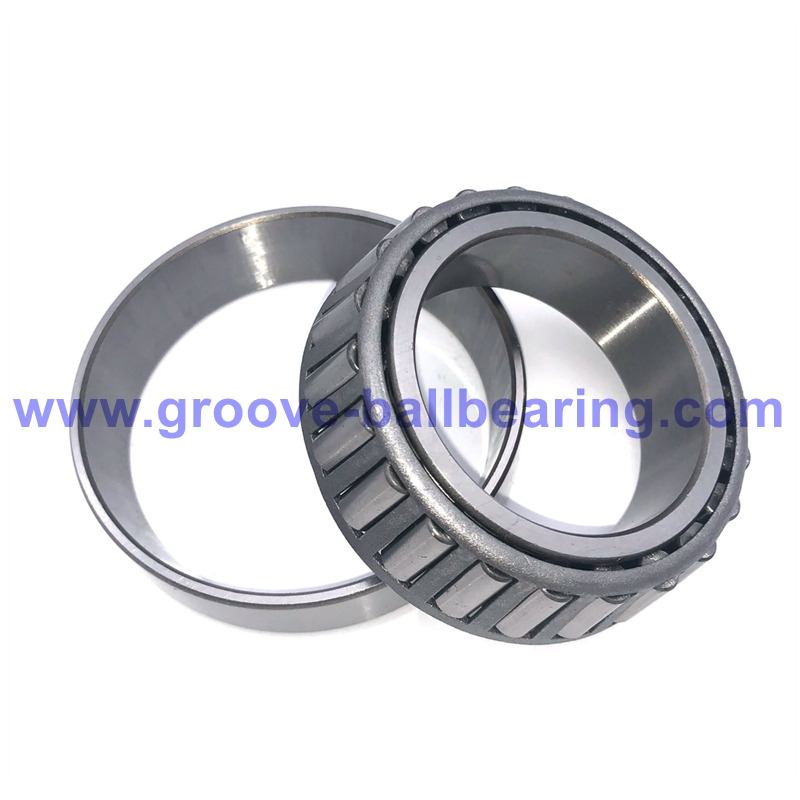

HM516449C/HM516410 bearing features a single row roller design.
Regarding this bearing model,
Cone Number: HM516449C
Cup Number: HM516410
Bore: 3-1/4 inch/ 82.55mm
Outer Diameter: 5-1/4 inch/ 133.350 mm
Cone Width (B): 1.5625 inch/ 39.688 mm
Total Width (T): 1.5625 inch/ 39.688 mm
Mass: 2.20kg/ 4.85lb
Material: bearing steel
Category: imperial tapered roller bearing
Precision: standard P0 or ABEC1
Lubrication: grease or oil
Warranty: 1 year
Also Known As: HM516449C / HM516410, HM516449C-HM516410, HM516449C – HM516410, SET422, SET 422, set422, HM516449C/10, HM516449C/410, HM516449C-99401
Single-Row Design: This bearing features a single-row roller configuration, enabling smooth rotation and axial load support.
High Load Capacity: Designed to handle heavy radial and axial loads, making it suitable for demanding applications.
Robust Construction: Made from durable, high-quality bearing steel to ensure long-lasting performance and resistance to wear.
Low Maintenance: Engineered for durability and ease of maintenance, reducing downtime and operational costs.
Versatile Application: Suitable for use in industrial, automotive, and mining equipment requiring reliable heavy-duty support.
| SET Number | SET COMPONENTS |
| SET1 | LM11749/LM11710 |
| SET2 | LM11949/LM11910 |
| SET3 | M12649/M12610 |
| SET4 | L44649/L44610 |
| SET5 | LM48548/LM48510 |
| SET6 | LM67048/LM67010 |
| SET8 | L45449/L45410 |
| SET10 | U399/K426898 |
| SET401 | 580/572 |
| SET402 | 582/572 |
| SET403 | 594A/592A |
| SET404 | 598A/592A |
| SET405 | 663/653 |
| SET406 | 3782/3720 |
| SET407 | 28622/28682 |
| SET408 | 39590/39520 |
| SET409 | 45220/45280 |
| SET410 | 45220/45284 |
| SET411 | 47686/47620 |
| SET412 | HM212047/HM212011 |
| SET413 | HM212049/HM212011 |
| SET414 | HM218248/HM218210 |
| SET415 | HM518445/HM518410 |
| SET416 | 45291/45220 |
| SET417 | 47890/47820 |
| SET418 | H715311/H715334 |
| SET419 | H715311/H715343 |
| SET420 | H715311/H715345 |
| SET421 | HM516410/HM516449A |
| SET422 | HM516410/HM516449C |
| SET423 | 6420/6461A |
| SET424 | 552A/555S |
| SET425 | 563/567 |
| SET426 | 47620/47679 |
Comparison helps when dimensional fit is only part of the decision and load direction, sealing, clearance, speed, temperature, or repeat-order stability still need to be confirmed. Reviewing one or two nearby options early usually reduces sourcing mistakes later.
Buyers normally confirm the part reference, main dimensions, application, speed range, operating environment, sealing needs, and any packaging or marking requirements. That gives the supplier a cleaner basis for confirming availability and suitable alternatives.
A quick review of Taper Roller Bearings, one more commercial destination, and one practical guide usually saves time. That combination helps separate simple replacement orders from jobs that still need fit or application review.
Because it makes later decisions faster. When sizing notes, application cues, and nearby options stay close to the product, engineering, purchasing, and maintenance teams can revisit the same logic without starting the review from zero.
1. Sea shipping for mass cargos (GW > 500KGS)
2. Air shipping (GW between 100KGS – 500 KGS)
3. Express, such as DHL, TNT, Fedex, UPS for small cargos ( GW < 100KGS)
4. If you have shipping agent in China, we can send goods to your shipping agent's warehouse
We accept T/T, W/U, PAYPAL, L/C etc
Buyer FAQ
Confirm the bearing number, bore size, outside diameter, width, seal or shield type, cage material, clearance, precision level, quantity, and application. These details help prevent a size match from becoming a performance mismatch.
Yes. Replacement and repeat orders are easier when the original marking, measured dimensions, photos, application, and quantity are available. If the marking is unclear, the team can start from the size and working condition.
This item is handled within the Taper Roller Bearings family. Comparing the family page can help buyers review similar sizes, seal options, load direction, and related bearing choices before requesting a quote.
Price and lead time can change with quantity, stock availability, precision grade, clearance, material, cage, seal or shield type, lubrication, packaging, and whether the order needs standard matching or custom production.
Inspection can include material review, dimensional measurement, noise and vibration checks, surface and crack checks, visual review, and packaging inspection according to the confirmed order requirements.
