Dimensions: 61.912×136.525×46.038mm(d*D*T)
Mass: 3.47kg
Cone Number: H715334
Cup Number: H715311
Replacement: H715334-H715311, H715334 – H715311, H715311/H715334, H715334/11, H715334/311, H715334-99401, H715334-9X021, SET418-900SA, set 418, Set418

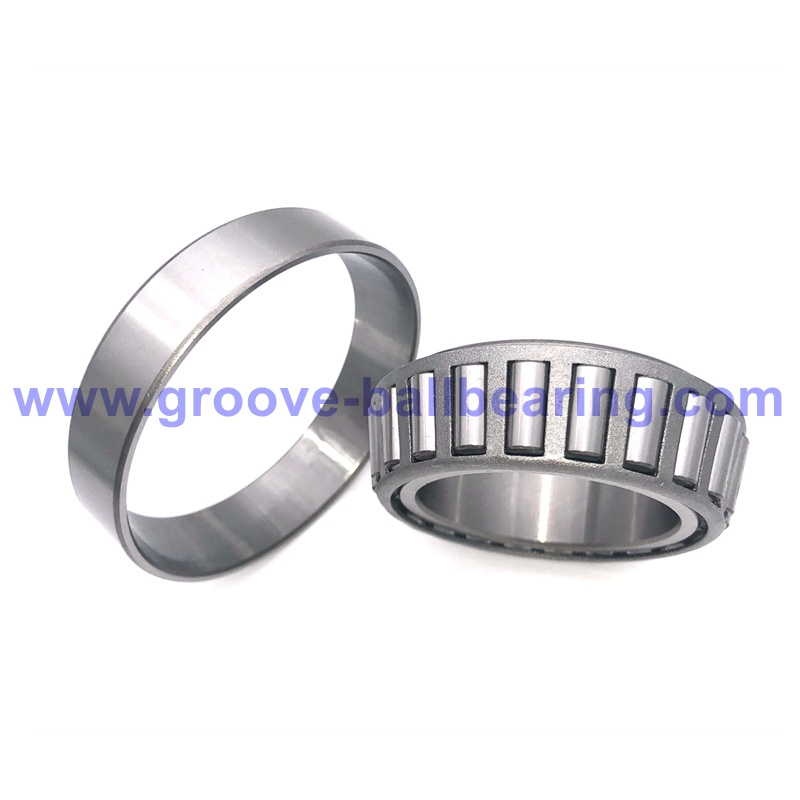

Bearing H715334/H715311 is a single-row tapered roller bearing.
For this bearing,
d: 61.912mm
D: 136.525mm
T: 46.038mm
Mass: 3.47kg
Cone Number: H715334
Cup Number: H715311
Material: bearing steel
Cage Material: stamped steel
Precision: standard ABEC1, P0
Limit Speed: 2900 tr/min (oil lubrication)
Replacement: H715334-H715311, H715334 – H715311, H715311/H715334, H715334/11, H715334/311, H715334-99401, H715334-9X021, SET418-900SA, set 418, Set418, 4T-H715334/H715311
1. Geometry: Conical raceways and tapered rollers align to carry combined loads efficiently.
2. Load capability: Carries high radial loads plus substantial axial load in one direction.
3. Pairing options: Bearing H715334/H715311 allows X (cross), O (face-to-face), or tandem arrangements to tailor stiffness, load sharing, and axial capacity.
4. Assembly/service: Separate cup and cone design of H715311/H715334 bearing enables quick mounting, dismounting, inspection, and replacement.
5. Performance focus: SET418 bearings deliver high load capacity, rigidity, and versatility in a relatively compact envelope.
| Model Number | d(mm) | D(mm) | T(mm) | Mass(kg) |
| M88043/M88010 | 30.163 | 68.263 | 22.225 | 0.402 |
| LM29749/LM29711 | 38.100 | 65.088 | 19.812 | 0.250 |
| M84548/M84510 | 25.400 | 57.150 | 19.431 | 0.244 |
| M86649/M86610 | 30.162 | 64.292 | 21.433 | 0.336 |
| M802048/M802011 | 41.275 | 82.550 | 26.543 | 0.641 |
| 15101/15245 | 25.400 | 61.999 | 19.050 | 0.300 |
| 15103/15243 | 26.157 | 61.913 | 19.050 | 0.290 |
| HM218248/HM218210 | 89.975 | 146.975 | 40.000 | 2.550 |
| HM518445/HM518410 | 88.900 | 152.400 | 39.688 | 2.928 |
| 45291/45220 | 57.150 | 104.775 | 30.163 | 1.098 |
| 47890/47820 | 92.075 | 146.050 | 33.338 | 2.080 |
| H715334/H715311 | 61.912 | 136.525 | 46.038 | 3.470 |

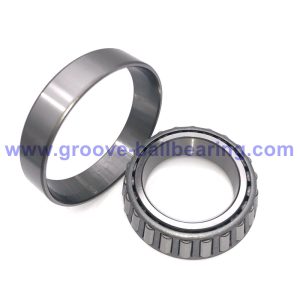

| H715343/H715311 | 68.262 | 136.525 | 46.038 | 3.230 |
| H715345/H715311 | 71.438 | 136.525 | 46.038 | 3.110 |
| HM516449/HM516410 | 82.550 | 133.350 | 39.688 | 2.100 |
| 6461/6420 | 76.200 | 149.225 | 53.975 | 4.260 |
| 555/552 | 50.800 | 123.825 | 38.100 | 2.360 |
| 59187/59429 | 47.625 | 108.966 | 34.925 | 1.580 |
| 536/532X | 47.625 | 107.950 | 36.513 | 1.590 |
| 66187/66462 | 47.625 | 117.475 | 33.338 | 1.700 |
| 617/612 | 47.625 | 120.650 | 41.275 | 2.350 |
| 65390/65320 | 49.212 | 114.300 | 44.450 | 2.180 |
| HH506348/HH506310 | 49.212 | 114.300 | 44.450 | 2.260 |
| 546/532X | 49.982 | 107.950 | 36.513 | 1.540 |
| H715348/H715311 | 77.788 | 136.525 | 46.038 | 2.840 |
| 661/653 | 79.375 | 146.050 | 41.275 | 2.860 |
| 595A/593X | 79.375 | 150.000 | 35.992 | 2.820 |
| 595A/592AS | 79.375 | 152.400 | 35.717 | 2.940 |
| 661/652 | 79.375 | 152.400 | 41.275 | 3.230 |
| 756A/752 | 79.375 | 161.925 | 47.625 | 4.490 |
| 838/832 | 80.963 | 168.275 | 53.975 | 5.520 |
