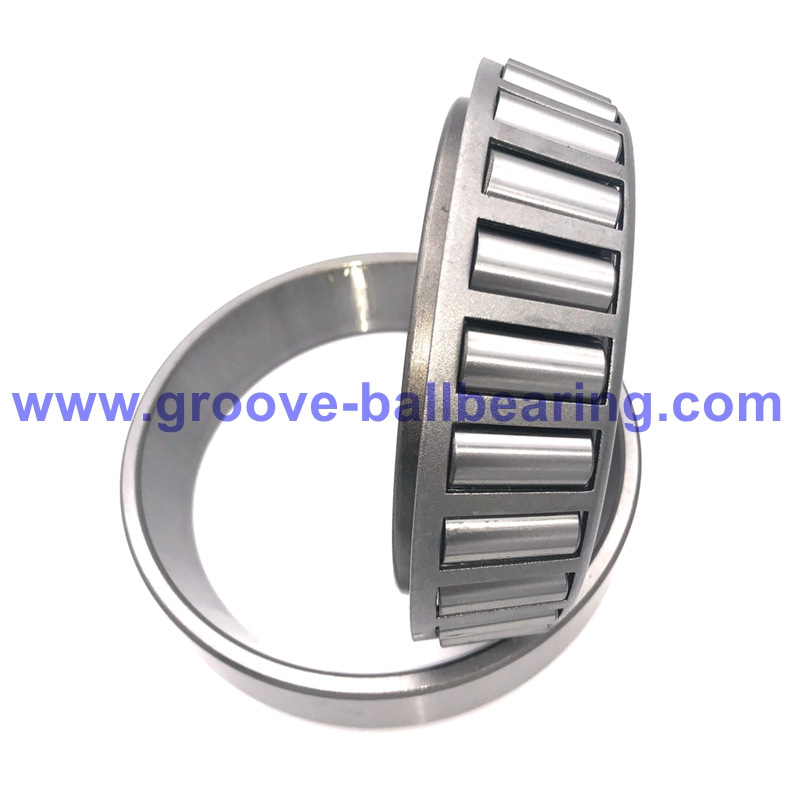

HM212049/HM212011 Bearing SET413 Taper Roller Bearing

Cone Number: HM212049
Cup Number: HM212011
Bore (d): 66.675 mm
Outer Diameter (D): 122.238 mm
Cone Width (B): 38.354 mm
Total Width (T): 38.1 mm
Mass: 1.85kg/ 4.079lb
Material: bearing steel
Seal Type: without

HM212049/HM212011 Bearing Information:

HM212049/HM212011 bearing features a single row taper roller bearing.
Regarding this bearing model,
Cone Number: HM212049
Cup Number: HM212011
Bore (d): 66.675 mm
Outer Diameter (D): 122.238 mm
Cone Width (B): 38.354 mm
Total Width (T): 38.1 mm
Mass: 1.85kg/ 4.079lb
Material: bearing steel
Hardness: 58-65 HRC
Seal Type: without
Relubricate Holes: without
Precision: standard ABEC1, P0
Working Temperature: -30 °C – 120 °C
Replacements: HM212049 / HM212011, HM212049-HM212011, HM212049 – HM212011, HM212049/11, HM212049/011, SET413, set 413, SET 413, HM212049-99402, HM212049-9X021, KHM212049/KHM212011

Bearing Applications:

Automotive Applications: Install it in heavy trucks, trailers, and similar vehicles that require high-capacity, durable bearings.
Agricultural Machinery: This bearing supports tractors, harvesters, and other farming equipment that operate under heavy loads and demanding conditions.
Heavy Duty Machinery: Use it in industrial gearboxes, conveyors, and material handling machines for reliable performance in challenging applications.
Mining Equipment: The bearing ensures the smooth operation of large, heavy-duty machinery used in mining operations, even under harsh conditions.

FAQ:

Q1: What materials are HM212049/HM212011 bearings made of?
A1: They are made from high-quality bearing steels that provide strength, wear resistance, and corrosion protection to ensure long-lasting performance.

Q2: What maintenance does this bearing require?
A2: Regular inspection, lubrication, and cleaning help maintain optimal performance. Proper installation and avoiding contamination are also important for prolonging the bearing’s lifespan.

Q3: What are common signs that the bearing needs replacement?
A3: Signs include unusual noise, increased vibration, excessive heat, or visible wear and corrosion. Regular inspections can help detect issues early.

Q4: Does the bearing come with any warranties?
A4: Yes, our bearings come with 1 year warranty.

Questions that usually come up before ordering HM212049/HM212011 and SET413

When is HM212049/HM212011 and SET413 worth comparing against nearby taper roller bearings options?

Comparison helps when dimensional fit is only part of the decision and load direction, sealing, clearance, speed, temperature, or repeat-order stability still need to be confirmed. Reviewing one or two nearby options early usually reduces sourcing mistakes later.

What details usually matter before approving HM212049/HM212011 and SET413 for repeat supply?

Buyers normally confirm the part reference, main dimensions, application, speed range, operating environment, sealing needs, and any packaging or marking requirements. That gives the supplier a cleaner basis for confirming availability and suitable alternatives.

Which next step usually helps after HM212049/HM212011 and SET413 is shortlisted?

A quick review of Taper Roller Bearings, one more commercial destination, and one practical guide usually saves time. That combination helps separate simple replacement orders from jobs that still need fit or application review.

Why keep a supporting guide linked beside HM212049/HM212011 and SET413?

Because it makes later decisions faster. When sizing notes, application cues, and nearby options stay close to the product, engineering, purchasing, and maintenance teams can revisit the same logic without starting the review from zero.
