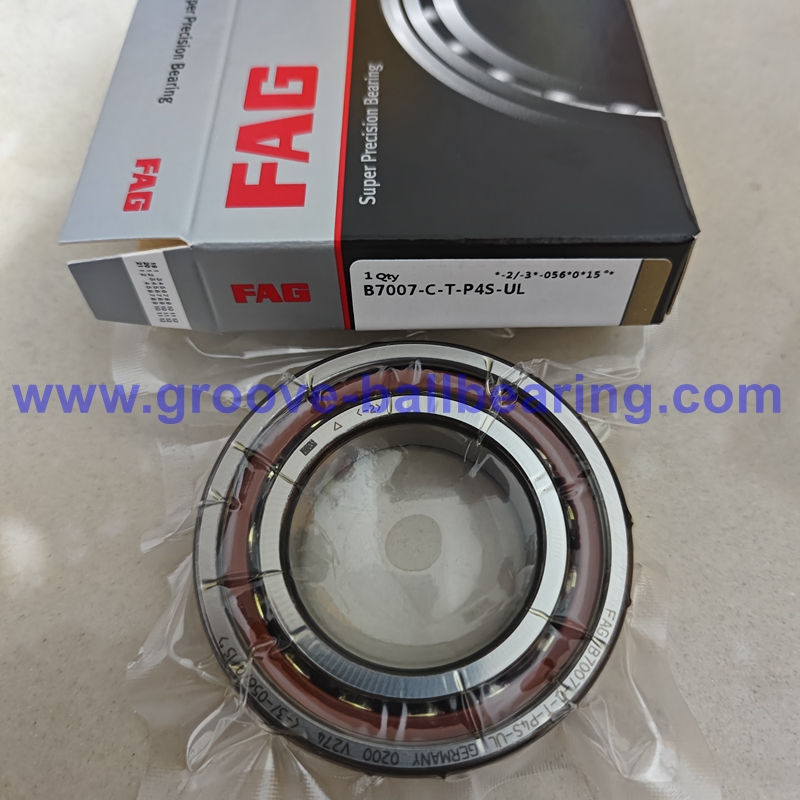

B7007CTP4SUL Bearing B7007-C-T-P4S-UL Precision Ball Bearing

B7007CTP4SUL Bearing Specification:

B7007CTP4SUL bearing is high precision ball bearing.
For this bearing,
Bore diameter: 35mm
Outside diameter: 62mm
Width: 14mm
Mass: 0.16kg
Sealing: open without seal
Basic dynamic load rating: 19,300 N
Basic static load rating: 9,600 N
Working temperature: -30 °C to 100 °C
Replacement: B7007-C-T-P4S-UL, B7007 – C – T – P4S – UL, B7007C.T.P4S.UL, B7007C.TPA.P4.UL,
Meaning of Suffixes:
C: contact angle 15°
T: durable fabric-composite cage
P4S: tolerance class P4S (higher precision than P4)
U: single bearing arrangement
L: light preload

B7007-C-T-P4S-UL Precision Bearing Features:

1. Super-precision single row angular contact spindle bearing.
2. 15° contact angle (code C) for high speed capability and good axial/radial stiffness balance.
3. Universal matching (code U) with Light preload (code L) – can be mounted in DB, DF, DT sets without changing internal clearance.
4. Optimized internal geometry (B70 series) for lower friction and reduced heat generation at very high spindle speeds.
5. High running accuracy and minimal axial/radial runout for superior machining surface finish.
6. Low vibration and noise characteristics suitable for high-speed CNC machining centers, grinding, milling, and boring spindles.

FAQ:

Q1: What is the delivery time for an order?
We have 126 pieces of B7007C.T.P4S.UL bearings in stock. Orders up to this quantity will be shipped within 2–3 days after your payment is received. If you need more than 126 units, the lead time is approximately 20–30 days.

Q2: Is there a warranty on the bearings?
Yes, our B7007CTP4SUL bearings are covered by a 1-year warranty.

Q3: What is the normal shelf life of a bearing?
Bearings made from 52100 chrome steel typically retain their quality for at least 2 years when stored correctly after manufacture. If storage exceeds two years, we recommend inspecting them for corrosion, abnormal noise, or grease deterioration before dispatch.
