45291/45220 Bearing 45291-45220 Taper Roller Bearing Set416
d: 57.15 mm/ 2 1/4 in
D: 104.775 mm/ 4.1250 in
T: 30.958mm/ 1.2188 in
Mass: 1.098kg
Cone Number: 45291
Cup Number: 45220
Material: chrome steel
Warranty: 1 year
45291/45220 Bearing Specification:

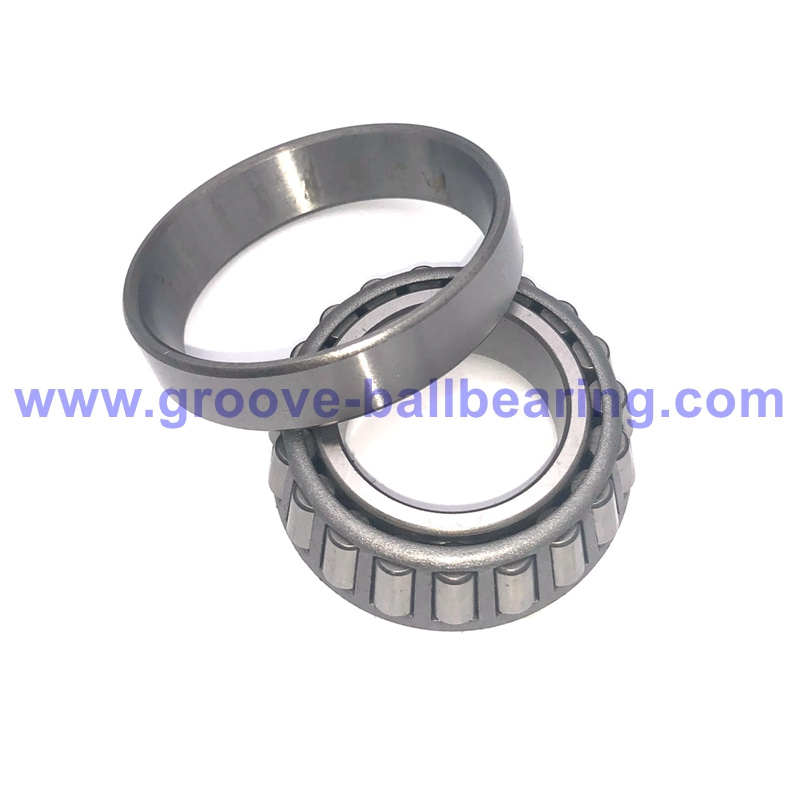

45291/45220 bearing is a single row imperial taper roller bearing.
| d: | 57.15 mm/ 2.250 in |
| D: | 104.775 mm/ 4.1250 in |
| T: | 30.958mm/ 1.2188 in |
| Mass: | 1.098kg |
| Cone Number: | 45291 |
| Cup Number: | 45220 |
| Material: | chrome steel |
| Cage Material: | steel |
| Category: | taper roller bearing |
| Number or Row: | single row |
| Precision: | ABEC1, P0 |
| Seal Type: | open |
| Warranty: | 1 year |
| Also Known As: | 45291/45220 |
| 45291-45220 | |
| 45220/45291 | |
| 45220-45291 | |
| 45291 – 45220 | |
| SET416 | |
| SET 416 | |
| set 416 | |
| Set416 |
Bearing Features:
1. Bearing Set416 handles high combined radial and single-direction thrust loads with its single-row tapered roller geometry.
2. 45291/45220 bearings use high‑grade through-hardened bearing steel for strong fatigue resistance.
3. SET416 offers separable cup (45220) and cone/roller assembly (45291) so users can mount and inspect components more easily.
4. Supports interchangeability: boundary dimensions match common industry standards, enabling replacement with equivalent sets from major brands.
5. Fits demanding applications: automotive and truck axles, differentials, industrial gearboxes, agricultural machinery, and heavy equipment transmissions.
Bearing Set Number and Component Pair Reference:
| SET Number | SET COMPONENTS |
| SET100 | HM89446/HM89410 |
| SET104 | L44642/L44610 |
| SET107 | JLM104948/JLM104910 |
| SET118 | JLM506849/JLM506810 |
| SET219 | M88046/M88010 |
| SET222 | HM88649HP/HM88610P |
| SET242 | M88043/M88010 |
| SET268 | LM29749/LM29711 |
| SET280 | U298/K529698 |
| SET284 | U298/K525376 |
| SET308 | M84548/M84510 |
| SET309 | M86649/M86610 |
| SET312 | HM89449/HM89410 |
| SET328 | M802048/M802011 |
| SET401 | 580/572 |
| SET402 | 582/572 |
| SET403 | 594A/592A |
| SET404 | 598A/592A |
| SET405 | 663/653 |
| SET406 | 3782/3720 |
| SET407 | 28622/28682 |
| SET408 | 39590/39520 |
| SET409 | 45220/45280 |
| SET410 | 45220/45284 |
| SET411 | 47686/47620 |
| SET412 | HM212047/HM212011 |
| SET413 | HM212049/HM212011 |
| SET414 | HM218248/HM218210 |
| SET415 | HM518445/HM518410 |
| SET416 | 45291/45220 |
| SET417 | 47820/47890 |
| SET418 | H715311/H715334 |
| SET419 | H715311/H715343 |
| SET420 | H715311/H715345 |
| SET421 | HM516410/HM516449A |
| SET422 | HM516410/HM516449C |
| SET423 | 6420/6461A |
| SET424 | 552A/555S |
| SET425 | 563/567 |
| SET426 | 47620/47679 |
Questions that usually come up before ordering 45291/45220 and 45291-45220
When is 45291/45220 and 45291-45220 worth comparing against nearby taper roller bearings options?
Comparison helps when dimensional fit is only part of the decision and load direction, sealing, clearance, speed, temperature, or repeat-order stability still need to be confirmed. Reviewing one or two nearby options early usually reduces sourcing mistakes later.
What details usually matter before approving 45291/45220 and 45291-45220 for repeat supply?
Buyers normally confirm the part reference, main dimensions, application, speed range, operating environment, sealing needs, and any packaging or marking requirements. That gives the supplier a cleaner basis for confirming availability and suitable alternatives.
Which next step usually helps after 45291/45220 and 45291-45220 is shortlisted?
A quick review of Taper Roller Bearings, one more commercial destination, and one practical guide usually saves time. That combination helps separate simple replacement orders from jobs that still need fit or application review.
Why keep a supporting guide linked beside 45291/45220 and 45291-45220?
Because it makes later decisions faster. When sizing notes, application cues, and nearby options stay close to the product, engineering, purchasing, and maintenance teams can revisit the same logic without starting the review from zero.
Shipping Method:
1. Sea shipping for mass cargos (GW > 500KGS)
2. Air shipping (GW between 100KGS – 500 KGS)
3. Express, such as DHL, TNT, Fedex, UPS for small cargos ( GW < 100KGS)
4. If you have shipping agent in China, we can send goods to your shipping agent's warehouse
Payment Terms:
We accept T/T, W/U, PAYPAL, L/C etc
Buyer FAQ
Questions buyers ask before choosing the next bearing option
What should I confirm before ordering 45291/45220 Bearing 45291-45220 Taper Roller Bearing Set416?
Confirm the bearing number, bore size, outside diameter, width, seal or shield type, cage material, clearance, precision level, quantity, and application. These details help prevent a size match from becoming a performance mismatch.
Can this bearing be matched for replacement or repeat supply?
Yes. Replacement and repeat orders are easier when the original marking, measured dimensions, photos, application, and quantity are available. If the marking is unclear, the team can start from the size and working condition.
Which product family does this bearing belong to?
This item is handled within the Taper Roller Bearings family. Comparing the family page can help buyers review similar sizes, seal options, load direction, and related bearing choices before requesting a quote.
What affects price and lead time for this bearing?
Price and lead time can change with quantity, stock availability, precision grade, clearance, material, cage, seal or shield type, lubrication, packaging, and whether the order needs standard matching or custom production.
How is this bearing checked before delivery?
Inspection can include material review, dimensional measurement, noise and vibration checks, surface and crack checks, visual review, and packaging inspection according to the confirmed order requirements.
Need help checking fit, price, or lead time? Request a bearing quote
