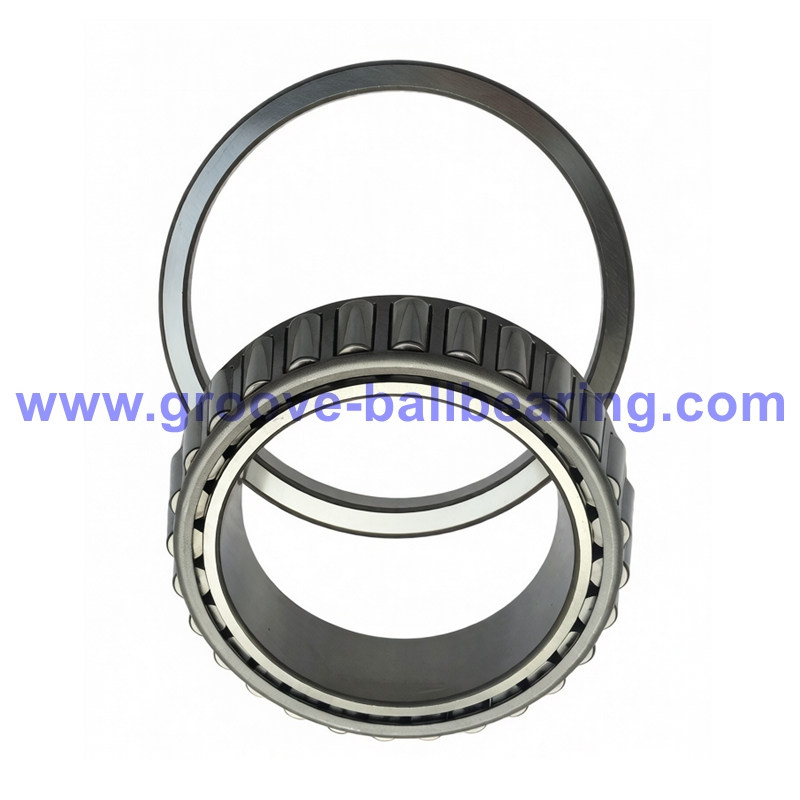

30224 Bearing – Single Row Tapered Roller Bearing
Bore (d): 120mm
Outer Diameter (D): 215mm
Cone Width (B): 40mm
Total Widht (T): 43.50mm
Mass: 6.13kg/ 13.51 lb
Seal Type: open
Cage: sheet metal
Material: 52100 steel
30224 Bearing Specification:
30224 tapered roller bearing delivers high load capacity, smooth rotation, and long service life for demanding industrial applications. This bearing supports both radial and axial loads, making it ideal for heavy-duty machinery.
It belongs to our full range of taper roller bearings, designed to provide reliable performance under tough working conditions.
As for this model number,
Bore (d): 120mm
Outer Diameter (D): 215mm
Cone Width (B): 40mm
Total Widht (T): 43.50mm
Mass: 6.13kg/ 13.51 lb
Seal Type: open
Cage: sheet metal
Material: 52100 steel
Internal Play: standard C0
Number of Row: single
Category: cone and cup set
Lubricate Groove and Holes: without
Precision: standard precision ABEC1, P0
Replacements: 30224-X, HR30224J, E30224J, 4T-30224
Buy Metric Tapered Roller Bearings:
| Model Number | Dimensions (mm) | Mass (KG) | ||
| d | D | T | ||
| 30202 | 15 | 35 | 11.75 | 0.055 |
| 30203 | 17 | 40 | 13.25 | 0.078 |
| 30204 | 20 | 47 | 15.25 | 0.120 |
| 30205 | 25 | 52 | 16.25 | 0.144 |
| 30206 | 30 | 62 | 17.25 | 0.232 |
| 30207 | 35 | 72 | 18.25 | 0.318 |
| 30208 | 40 | 80 | 19.75 | 0.400 |
| 30209 | 45 | 85 | 20.75 | 0.442 |
| 30210 | 50 | 90 | 21.75 | 0.520 |
| 30211 | 55 | 100 | 22.75 | 0.705 |
| 30212 | 60 | 110 | 23.75 | 0.886 |
| 30213 | 65 | 120 | 24.75 | 1.160 |
| 30214 | 70 | 125 | 26.25 | 1.250 |
| 30215 | 75 | 130 | 27.25 | 1.340 |
| 30216 | 80 | 140 | 28.25 | 1.650 |
| 30217 | 85 | 150 | 30.5 | 2.030 |
| 30218 | 90 | 160 | 32.5 | 2.560 |
| 30219 | 95 | 170 | 34.5 | 3.170 |
| 30220 | 100 | 180 | 37 | 3.730 |
| 30221 | 105 | 190 | 39 | 4.401 |
| 30222 | 110 | 200 | 41 | 5.270 |
| 30224 | 120 | 215 | 43.5 | 6.210 |
| 30226 | 130 | 230 | 43.75 | 7.020 |
Shipping Method:
1. Sea shipping for mass cargos (GW > 500KGS)
2. Air shipping (GW between 100KGS – 500 KGS)
3. Express, such as DHL, TNT, Fedex, UPS for small cargos ( GW < 100KGS)
4. If you have shipping agent in China, we can send goods to your shipping agent's warehouse
Payment Terms:
We accept T/T, W/U, PAYPAL, L/C etc
