BD110-1SA Bearing – 110x140x28 Angular Contact Ball Bearing
Bore (d): 110mm
Outer Diameter (D): 140mm
Bearing Width (B): 28mm
Mass: 1.5kg/ 3.31lb
Cage: sheet metal
Bearing Material: 52100 steel
Seal Type: open
Structure: angular contact ball bearing
Specification:
BD110-1SA bearing features an excavator bearing.
As for this bearing,
Bore (d): 110mm
Outer Diameter (D): 140mm
Bearing Width (B): 28mm
Mass: 1.5kg/ 3.31lb
Cage: sheet metal
Bearing Material: 52100 steel
Rolling Elements: balls
Strucuture: angular contact ball bearing
Seal Type: open
Radial Internal Play: C0
Lubrication: grease or oil
ABEC Rating: ABEC1, ABEC3
Woring Temperature Range: –30 °C to +120 °C (–22 °F to +248 °F)

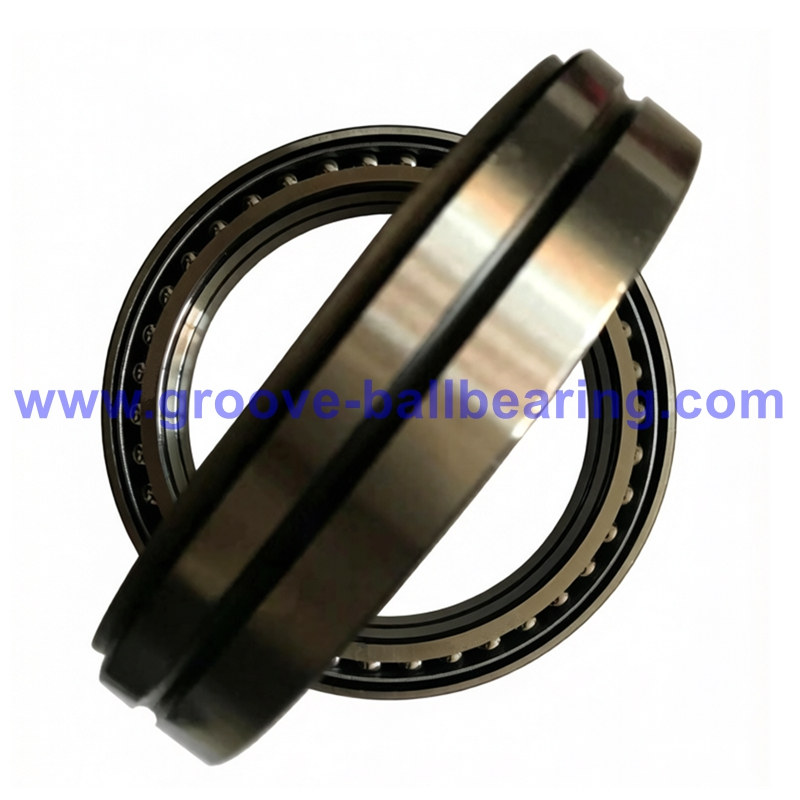

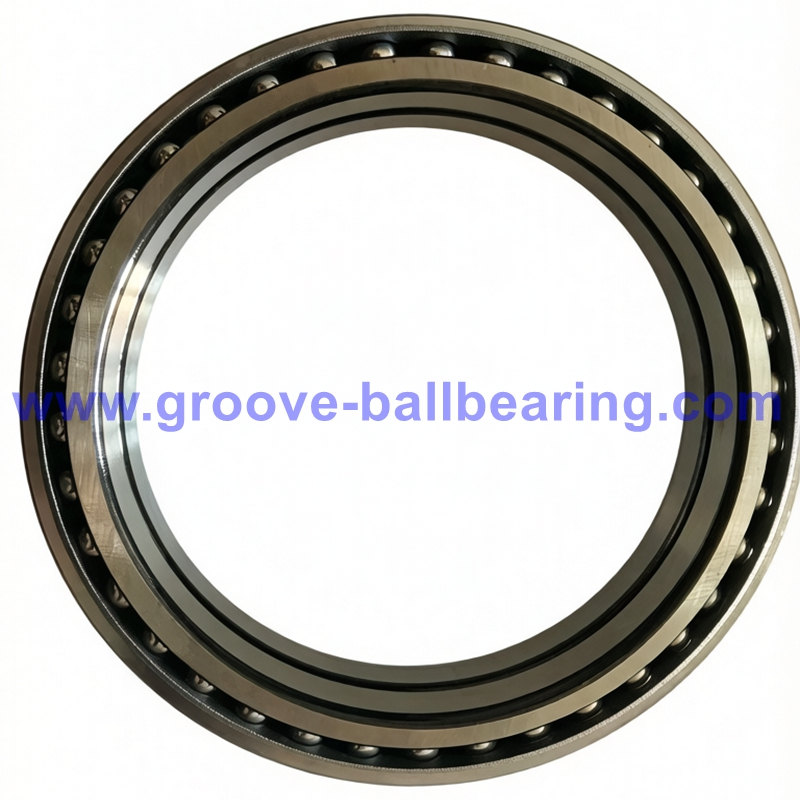

BD110-1 Bearing Photo:
Shipping Method:
1. Sea shipping for mass cargos (GW > 500KGS)
2. Air shipping (GW between 100KGS – 500 KGS)
3. Express, such as DHL, TNT, Fedex, UPS for small cargos ( GW < 100KGS)
4. If you have shipping agent in China, we can send goods to your shipping agent's warehouse
Payment Terms:
We accept T/T, W/U, PAYPAL, L/C etc
