Bore (d): 66.675mm
Outer Diameter (D): 107.95mm
Cone Width (B): 25.400mm
Bearing Width (T): 25.400mm
Mass: 0.89kg/ 1.962lb
Seal Type: open
Material: bearing steel
MOQ: 10 pieces

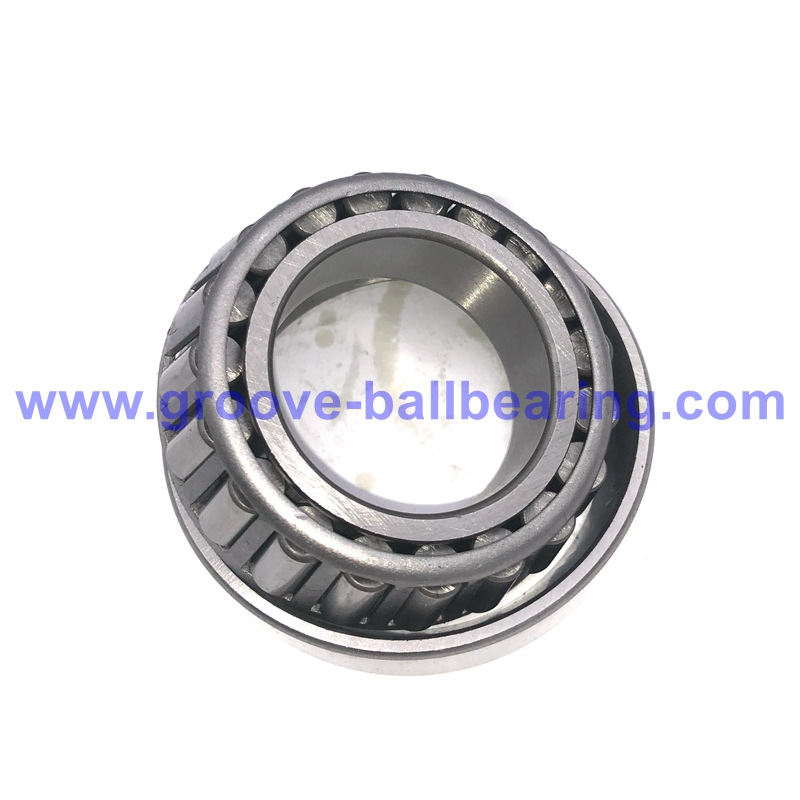

29590-29522 Bearing Bore (d): 66.675mm
Outer Diameter (D): 107.95mm
Cone Width (B): 25.400mm
Bearing Width (T): 25.400mm
Mass: 0.89kg/ 1.962lb
Seal Type: open
Material: bearing steel
Precision: P0, ABEC1
Lubrication: grease or oil
Relubricate Holes: without
Number of Row: single row
Bearing Structure: taper roller bearing
Equivalents: 29590 – 29522, 29590/29522, 4T-29590/29522, 29590/522, 29590/22
1. Carry high radial loads and one-direction axial loads for demanding duty cycles.
2. Separate into cup (outer ring) and cone (inner ring with cage and rollers) for quick assembly and inspection.
3. Serve automotive axles, gearboxes, and industrial hubs with reliable performance.
4. Allows X, O, or tandem pairing arrangements for specific stiffness and load directions.
1. Send your bearing inquiry with model numbers, quantities, and any brand preferences.
2. We’ll quote prices and present shipping options based on the gross weight and shipping address.
3. Approve the quote, and we’ll issue a proforma invoice for payment.
4. After payment, we’ll prepare your bearings and arrange prompt shipment.
Comparison helps when dimensional fit is only part of the decision and load direction, sealing, clearance, speed, temperature, or repeat-order stability still need to be confirmed. Reviewing one or two nearby options early usually reduces sourcing mistakes later.
Buyers normally confirm the part reference, main dimensions, application, speed range, operating environment, sealing needs, and any packaging or marking requirements. That gives the supplier a cleaner basis for confirming availability and suitable alternatives.
A quick review of Taper Roller Bearings, one more commercial destination, and one practical guide usually saves time. That combination helps separate simple replacement orders from jobs that still need fit or application review.
Because it makes later decisions faster. When sizing notes, application cues, and nearby options stay close to the product, engineering, purchasing, and maintenance teams can revisit the same logic without starting the review from zero.
1. Sea shipping for mass cargos (GW > 500KGS)
2. Air shipping (GW between 100KGS – 500 KGS)
3. Express, such as DHL, TNT, Fedex, UPS for small cargos ( GW < 100KGS)
4. If you have shipping agent in China, we can send goods to your shipping agent's warehouse
We accept T/T, W/U, PAYPAL, L/C etc
Buyer FAQ
Confirm the bearing number, bore size, outside diameter, width, seal or shield type, cage material, clearance, precision level, quantity, and application. These details help prevent a size match from becoming a performance mismatch.
Yes. Replacement and repeat orders are easier when the original marking, measured dimensions, photos, application, and quantity are available. If the marking is unclear, the team can start from the size and working condition.
This item is handled within the Taper Roller Bearings family. Comparing the family page can help buyers review similar sizes, seal options, load direction, and related bearing choices before requesting a quote.
Price and lead time can change with quantity, stock availability, precision grade, clearance, material, cage, seal or shield type, lubrication, packaging, and whether the order needs standard matching or custom production.
Inspection can include material review, dimensional measurement, noise and vibration checks, surface and crack checks, visual review, and packaging inspection according to the confirmed order requirements.
