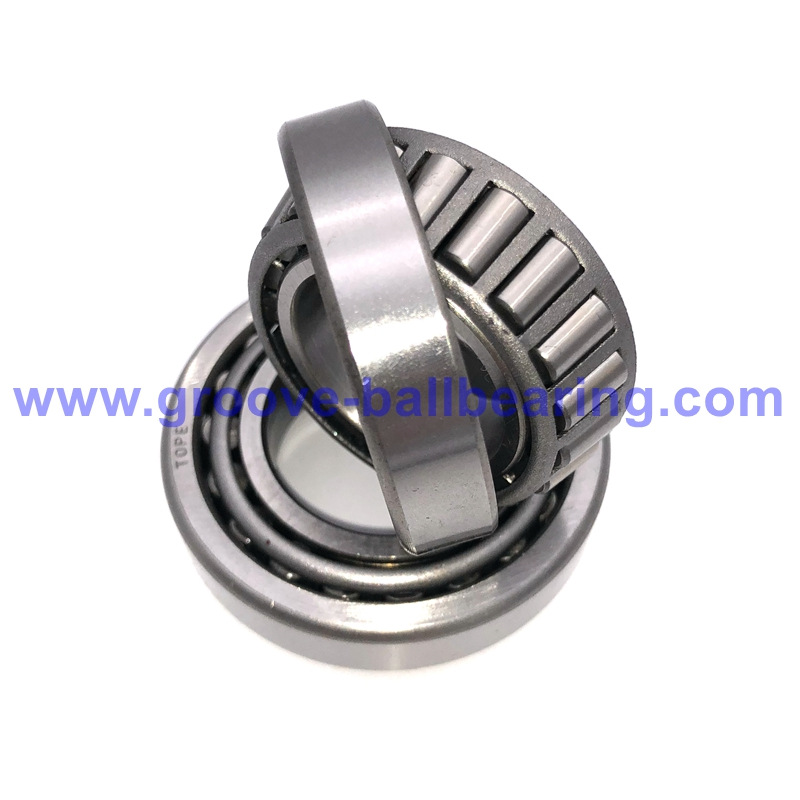

29585/29520 Bearing 29585/520 Inch Taper Roller Bearing
Bore: 63.500mm/ 2.50 inch
Outer Diameter: 107.95mm/ 4.25 inch
Inner Ring Width: 25.400mm/ 1 inch
Total Width: 25.400mm/ 1 inch
Mass: 0.924kg/ 2.037lb
Cone: 29585
Cup: 29520
MOQ: 10 pieces
29585/29520 Bearing Specification:
29585/29520 Bearing Bore: 63.500mm/ 2.50 inch
Outer Diameter: 107.95mm/ 4.25 inch
Inner Ring Width: 25.400mm/ 1 inch
Total Width: 25.400mm/ 1 inch
Mass: 0.924kg/ 2.037lb
Cone: 29585
Cup: 29520
Precision: ABEC1
Cage: stamped steel
Rollers & Rings: chrome steel, Gcr15
Relubricate Holes: without
Grease Lubrication Limit Speed: 255ORPM
Operating Temperature: -30 °C to 120 °C
Interchange Numbers: 29585 / 29520, 29585-29520, 29585 – 29520, 29585/520, 29585/20, 4T-29585/29520
Key Benefits:
1. Handles high radial and axial loads with stable support for heavy-duty shafts and housings
2. Delivers smooth rotation and low friction through optimized roller-to-raceway contact
3. Extends service life with heat-treated bearing steel and precision-ground raceways
4. Maintains accurate alignment using tapered geometry that controls endplay and preload
5. Performs reliably in hubs, gearboxes, and industrial drives across wide temperature ranges
FAQ:
Q1: What is the application of this bearing?
A1: In automotive wheel assemblies, axle systems rely on 29585/29520 tapered roller bearings to carry vehicle weight, handle cornering and braking forces, and minimize friction for smoother rotation and longer component life.
Q2: What materials are used in the manufacturing of this bearing?
A2: This bearing is usually made from high-quality chrome steel (SAE 52100), ensuring durability and resistance to wear. The surfaces are often treated to enhance their performance in demanding conditions.
Q3: How should I maintain this inch taper roller bearing?
A3: Regular inspections, timely lubrication, and replacing worn components are essential for maintaining the functionality and extending the life of the bearing. Ensure to check for signs of wear or damage periodically.
Questions that help when 29585/29520 and 29585/520 is on the shortlist
When is 29585/29520 and 29585/520 worth comparing against nearby taper roller bearings options?
Comparison helps when dimensional fit is only part of the decision and load direction, sealing, clearance, speed, temperature, or repeat-order stability still need to be confirmed. Reviewing one or two nearby options early usually reduces sourcing mistakes later.
What details usually matter before approving 29585/29520 and 29585/520 for repeat supply?
Buyers normally confirm the part reference, main dimensions, application, speed range, operating environment, sealing needs, and any packaging or marking requirements. That gives the supplier a cleaner basis for confirming availability and suitable alternatives.
Which next step usually helps after 29585/29520 and 29585/520 is shortlisted?
A quick review of Taper Roller Bearings, one more commercial destination, and one practical guide usually saves time. That combination helps separate simple replacement orders from jobs that still need fit or application review.
Why keep a supporting guide linked beside 29585/29520 and 29585/520?
Because it makes later decisions faster. When sizing notes, application cues, and nearby options stay close to the product, engineering, purchasing, and maintenance teams can revisit the same logic without starting the review from zero.
Shipping Method:
1. Sea shipping for mass cargos (GW > 500KGS)
2. Air shipping (GW between 100KGS – 500 KGS)
3. Express, such as DHL, TNT, Fedex, UPS for small cargos ( GW < 100KGS)
4. If you have shipping agent in China, we can send goods to your shipping agent's warehouse
Payment Terms:
We accept T/T, W/U, PAYPAL, L/C etc
