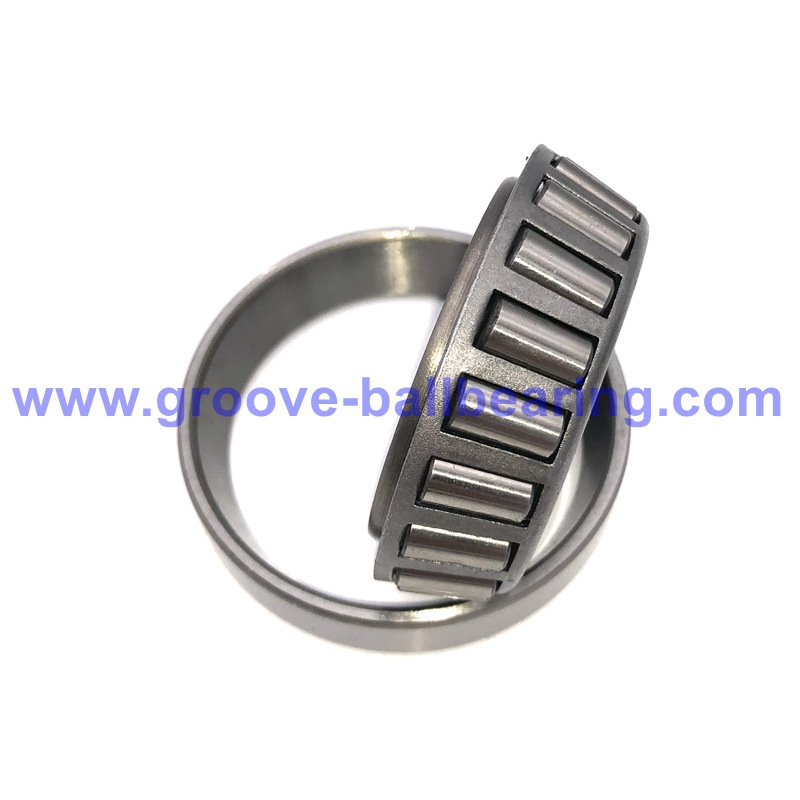

29688-29620 Bearing 29688/620 Taper Roller Bearing
Bore (d): 73.817mm
Outer Diameter (D): 112.713mm
Inner Ring Width (B): 25.400mm
Total Width (T): 25.400mm
Mass: 0.86kg/ 1.896lb
Seal Type: open
Cage: stamped steel
Bearing Material: bearing steel
29688-29620 Bearing Specification:
29688-29620 Bearing Bore (d): 73.817mm
Outer Diameter (D): 112.713mm
Inner Ring Width (B): 25.400mm
Total Width (T): 25.400mm
Mass: 0.86kg/ 1.896lb
Seal Type: open
Cage: stamped steel
Cone Number: 29688
Cup Number: 29620
Bearing Material: bearing steel
Category: inch taper roller bearing
Precision: standard ABEC1, P0
Bearing Operating Temperature: –30 °C to +120 °C
Single Row Taper Roller Bearings We Offer:
| Model Number | Dimensions (mm) | Mass (kg) |
| 657/653 | 73.025×146.050×41.275 | 3.110 |
| 6460/6420 | 73.025×149.225×53.975 | 4.390 |
| 6460/6420A | 73.025×149.225×53.975 | 4.410 |
| 744/742 | 73.025×150.089×44.450 | 3.780 |
| 657/652 | 73.025×152.400×41.275 | 3.480 |
| 29688/29620 | 73.817×112.712×25.400 | 0.870 |
| 568/563 | 73.817×127.000×36.512 | 1.780 |
| 577/572 | 74.612×139.992×36.512 | 2.410 |
| 658/652 | 74.612×152.400×41.275 | 3.420 |
| 34294/34500 | 74.976×127.000×26.988 | 1.200 |
| 42686/42624 | 74.987×129.974×33.249 | 1.680 |
| JLM714149/JLM714110 | 75.000×115.000×25.000 | 0.870 |
| JM714249A/JM714210 | 75.000×120.000×31.000 | 1.270 |
| JM714249/JM714210 | 75.000×120.000×31.000 | 1.300 |
| JH415647/JH415610 | 75.000×145.000×51.000 | 3.800 |
| HM215249/HM215210 | 75.987×131.976×39.000 | 2.110 |
| 34299X/34472X | 76.000×120.000×23.000 | 0.880 |
| LL714649/LL714610 | 76.200×105.570×13.495 | 0.320 |
| L814749/L814710 | 76.200×109.538×19.050 | 0.580 |
| 34300/34478 | 76.200×121.442×24.608 | 0.960 |
| 34301/34478 | 76.200×121.442×24.608 | 0.940 |
Questions buyers ask when 29688-29620 and 29688/620 is still under review
When is 29688-29620 and 29688/620 worth comparing against nearby taper roller bearings options?
Comparison helps when dimensional fit is only part of the decision and load direction, sealing, clearance, speed, temperature, or repeat-order stability still need to be confirmed. Reviewing one or two nearby options early usually reduces sourcing mistakes later.
What details usually matter before approving 29688-29620 and 29688/620 for repeat supply?
Buyers normally confirm the part reference, main dimensions, application, speed range, operating environment, sealing needs, and any packaging or marking requirements. That gives the supplier a cleaner basis for confirming availability and suitable alternatives.
Which next step usually helps after 29688-29620 and 29688/620 is shortlisted?
A quick review of Taper Roller Bearings, one more commercial destination, and one practical guide usually saves time. That combination helps separate simple replacement orders from jobs that still need fit or application review.
Why keep a supporting guide linked beside 29688-29620 and 29688/620?
Because it makes later decisions faster. When sizing notes, application cues, and nearby options stay close to the product, engineering, purchasing, and maintenance teams can revisit the same logic without starting the review from zero.
Shipping Method:
1. Sea shipping for mass cargos (GW > 500KGS)
2. Air shipping (GW between 100KGS – 500 KGS)
3. Express, such as DHL, TNT, Fedex, UPS for small cargos ( GW < 100KGS)
4. If you have shipping agent in China, we can send goods to your shipping agent's warehouse
Payment Terms:
We accept T/T, W/U, PAYPAL, L/C etc
Buyer FAQ
Questions buyers ask before choosing the next bearing option
What should I confirm before ordering 29688-29620 Bearing 29688/620 Taper Roller Bearing?
Confirm the bearing number, bore size, outside diameter, width, seal or shield type, cage material, clearance, precision level, quantity, and application. These details help prevent a size match from becoming a performance mismatch.
Can this bearing be matched for replacement or repeat supply?
Yes. Replacement and repeat orders are easier when the original marking, measured dimensions, photos, application, and quantity are available. If the marking is unclear, the team can start from the size and working condition.
Which product family does this bearing belong to?
This item is handled within the Taper Roller Bearings family. Comparing the family page can help buyers review similar sizes, seal options, load direction, and related bearing choices before requesting a quote.
What affects price and lead time for this bearing?
Price and lead time can change with quantity, stock availability, precision grade, clearance, material, cage, seal or shield type, lubrication, packaging, and whether the order needs standard matching or custom production.
How is this bearing checked before delivery?
Inspection can include material review, dimensional measurement, noise and vibration checks, surface and crack checks, visual review, and packaging inspection according to the confirmed order requirements.
