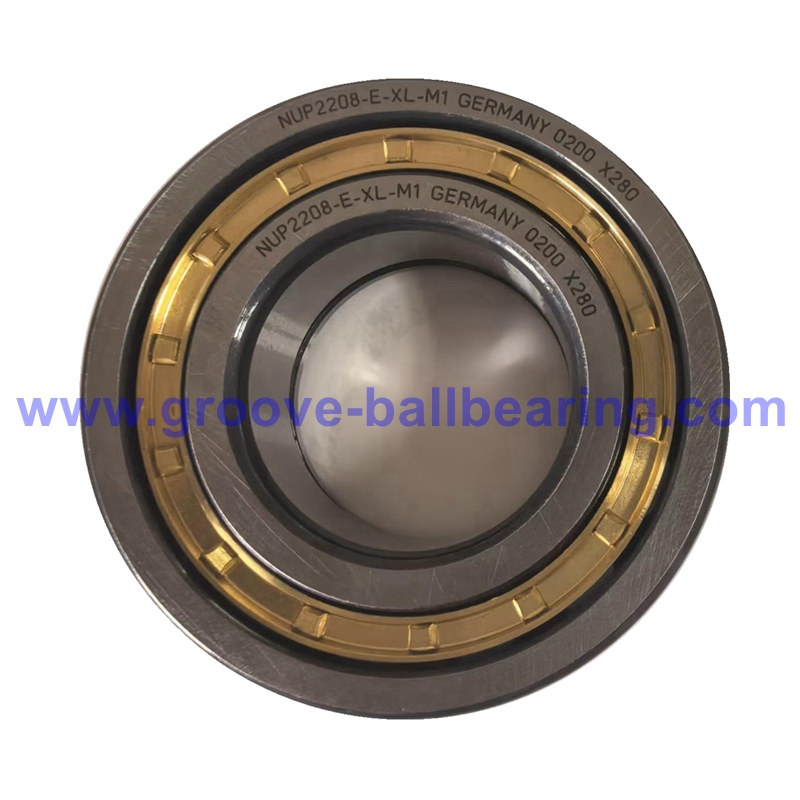

NU2208-E-XL-M1 Bearing NUP2208 EM1C3 Cylindrical Roller Bearing

NU2208-E-XL-M1 Bearing Datasheet:

NU2208-E-XL-M1 bearing is designed as a single-row cylindrical roller bearing
Regarding this bearing,
Inner Diameter: 40mm
Outer Diameter: 80mm
Width: 23mm
Mass: 0.50kg
Cage: brass
Bearing Material: bearing steel
Seal: without
Precision: standard P0, ABEC1
Radial Internal Play: standard CN/C0, C3 is also available
E: increased capacity design
XL: X life
M1: 2 pieces roller guided brass cage
Equivalents: NUP2208-E-M1, NUP2208EM1C3

Key Features:

1. Single-row cylindrical roller design: Ensures stable and efficient operation.
2. NUP axial locating design: Locates the shaft axially in both directions.
3. Radial and axial load support: Handles high radial loads and axial loads in both directions.
4. Cage-guided rollers: Reduces roller contact and friction, supporting higher speeds.
5. Wide application range: Used in gearboxes, agricultural machinery, pumps, compressors, electric motors, and other industrial equipment.

FAQ:

Question 1. What type of bearing is NU2208-E-XL-M1?
Answer: It is a single-row cylindrical roller bearing. It is designed to support high radial loads and provide stable operation in industrial applications.

Question 2. What does the “NU” design mean?
Answer: The NU design means the bearing has two ribs on the outer ring and no ribs on the inner ring. This design allows axial displacement of the shaft relative to the housing in both directions, making it suitable as a non-locating bearing.

Question 3: What does “M1” mean?
Answer: M1 usually indicates a solid brass cage. The brass cage provides high strength, good durability, and reliable performance under heavy-load or high-speed conditions.

Question 4: Is this cylindrical roller bearing easy to install?
Answer: Yes. The bearing has a separable design, so the inner ring and outer ring with roller and cage assembly can be mounted separately, making installation convenient.

Question 5: What is the lead time after I place an order?
Answer: We maintain a large inventory of common ball bearings and roller bearings. For example, we currently have 459 sets of 6012-NR-C3, 587 sets of 3309, 637 sets of 22316-E1A-XL-M, and 337 sets of F15159 in stock. For standard bearing models, the lead time is usually within 3 business days after payment is received. However, for customized bearings (eg. RKS.160.14.0544, XLRJ 12 E), the lead time is typically around 20–35 days.
