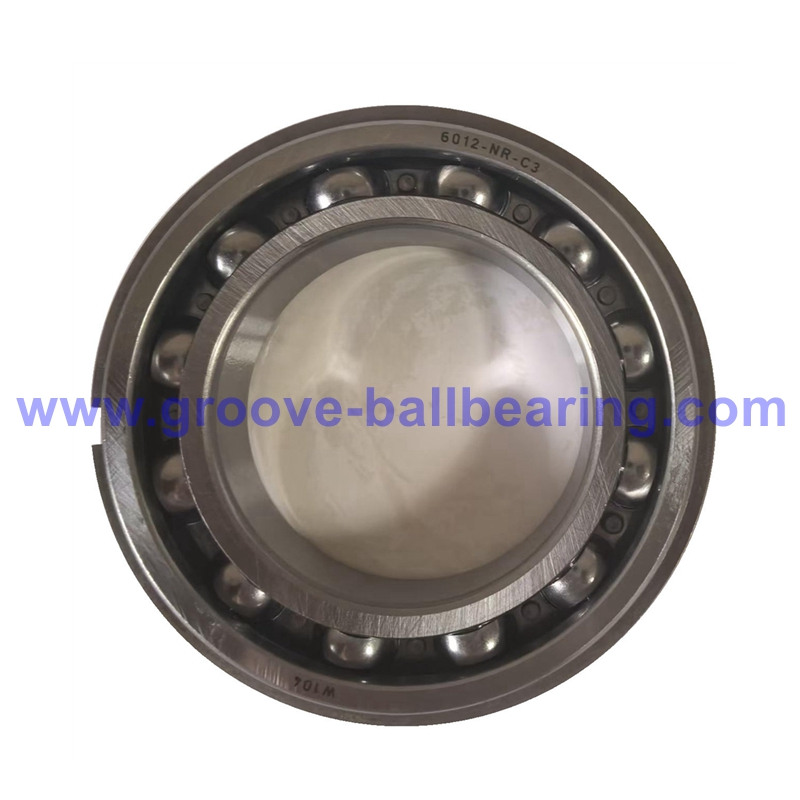

6012NRC3 Bearing 6012-NR-C3 Radial Ball Bearing

6012NRC3 Bearing Specification:

6012NRC3 Bearing Inner Diameter(d): 60mm
Outer Diameter (D): 95mm
Bearing Width (B): 18mm
Mass: 0.41kg
Material: bearing steel
Cage: pressed steel
Shields: without
Radial Internal Play: C3
Lubrication: grease or oil
Tolerance: P0, ABEC1
NR: outer ring with snap ring groove and suitable snap ring
Interchange Numbers: 6012-NR-C3, 6012NR/C3, 6012 NRC3

Key Benefits:

1. Deep Groove Ball Bearing Design: 6012-NR-C3 bearing provides smooth operation, low friction, and reliable performance in various applications.
2. Snap Ring Groove with Snap Ring: The NR design includes a snap ring groove on the outer ring and a matching snap ring, making installation and axial positioning easier.
3. C3 Internal Clearance: The C3 clearance offers greater internal clearance than standard bearings, suitable for applications with higher operating temperatures or tighter fits.
4. Supports Radial and Light Axial Loads: mainly designed for radial loads, while also being able to handle light axial loads in both directions.
5. Standard Bearing Size: Commonly used in motors, machinery, gearboxes, agricultural equipment, and industrial applications.
