HM903249/HM903210 Bearing SET54 Taper Roller Bearing Set
Cone: HM903249
Cup: HM903210
Bore (d): 44.45mm
Outer Diameter (D): 95.250mm
Cone Width (B): 28.575mm
Total Width (T): 30.958mm
Mass: 1kg/ 2.205lb
Material: chrome steel
HM903249/HM903210 Bearing Specification:

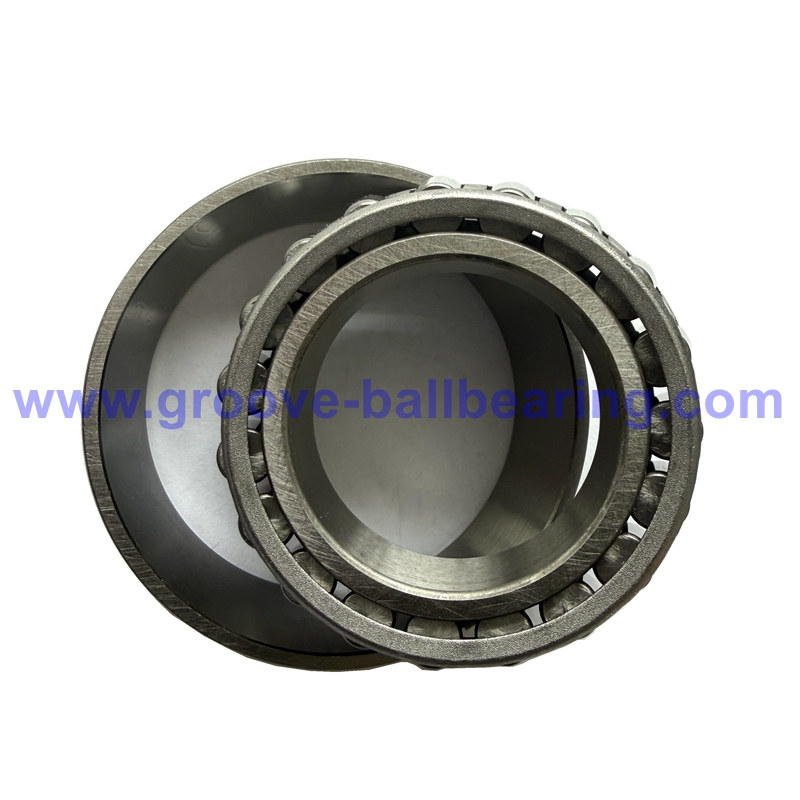

HM903249/HM903210 bearing is a tapered roller bearing consisting of a cone
and cup assembly.
Regarding this bearing model,
Cone: HM903249
Cup: HM903210
Bore (d): 44.45mm
Outer Diameter (D): 95.250mm
Cone Width (B): 28.575mm
Total Width (T): 30.958mm
Mass: 1kg/ 2.205lb
Cage: stamped steel
Material: chrome steel
Seal Type: open
Working Temperature: -30 °C to 120 °C
Interchange Numbers: HM903249 / HM903210, HM903249-HM903210, HM903249/210, HM903249/10, HM903249-99401, SET64, Set 64, 4T-HM903249/HM903210
Available Single Row Tapered Roller Bearings:
| SET26 JLM104946/JLM104910-Z | SET54 25590/25520 |
| SET27 JLM67048/LM67010-BCE | SET55 25590/25523 |
| SET28 J15585/J15520 | SET56 LM29748/LM29710 |
| SET29 LM67049/LM67010 | SET57 31594/31520 |
| SET30 JLM67042/LM67010 | SET58 LM48548A/LM48510 |
| SET31 JL68145/JL68111 | SET59 LM48548A/LM48511A |
| SET32 LM12748F/LM12710 | SET60 LM48548/LM48511A |
| SET33 JRM3534-90U01 | SET61 11590/11520 |
| SET34 LM12748F/LM12710 | SET62 17887/17831 |
| SET35 JRM3534/3564XD | SET63 M88048/M88010 |
| SET36 LM603049/LM603012 | SET64 HM903249/HM903210 |
| SET 37=LM 603049/11 | SET65 M86647/M86610 |
| SET38 LM104949/LM104911 | SET66 368S/362 |
| SET39 JRM3939/68XD | SET67 HM88649/HM88610 |
| SET40 JLM506849A/JLM506811 | SET68 497/493 |
| SET42 JLM506849/LM506811 | SET69 LM501349/LM501314 |
| SET43 15123/15245 | SET70 LM29749/LM29710 |
| SET44 L44643X/44610(O-ring & seal) | SET71 LM67049A/LM67010 |
| SET45 LM501349/LM501310 | SET73 15101/15245 |
| SET46 JL26749F/JL26710 | SET74 387A/382A |
| SET47 LM102949/LM102910 | SET75 387A/382 |
Questions that usually come up before ordering HM903249/HM903210 and SET54
When is HM903249/HM903210 and SET54 worth comparing against nearby taper roller bearings options?
Comparison helps when dimensional fit is only part of the decision and load direction, sealing, clearance, speed, temperature, or repeat-order stability still need to be confirmed. Reviewing one or two nearby options early usually reduces sourcing mistakes later.
What details usually matter before approving HM903249/HM903210 and SET54 for repeat supply?
Buyers normally confirm the part reference, main dimensions, application, speed range, operating environment, sealing needs, and any packaging or marking requirements. That gives the supplier a cleaner basis for confirming availability and suitable alternatives.
Which next step usually helps after HM903249/HM903210 and SET54 is shortlisted?
A quick review of Taper Roller Bearings, one more commercial destination, and one practical guide usually saves time. That combination helps separate simple replacement orders from jobs that still need fit or application review.
Why keep a supporting guide linked beside HM903249/HM903210 and SET54?
Because it makes later decisions faster. When sizing notes, application cues, and nearby options stay close to the product, engineering, purchasing, and maintenance teams can revisit the same logic without starting the review from zero.
Shipping Method:
1. Sea shipping for mass cargos (GW > 500KGS)
2. Air shipping (GW between 100KGS – 500 KGS)
3. Express, such as DHL, TNT, Fedex, UPS for small cargos ( GW < 100KGS)
4. If you have shipping agent in China, we can send goods to your shipping agent's warehouse
Payment Terms:
We accept T/T, W/U, PAYPAL, L/C etc
Buyer FAQ
Questions buyers ask before choosing the next bearing option
What should I confirm before ordering HM903249/HM903210 Bearing SET54 Taper Roller Bearing Set?
Confirm the bearing number, bore size, outside diameter, width, seal or shield type, cage material, clearance, precision level, quantity, and application. These details help prevent a size match from becoming a performance mismatch.
Can this bearing be matched for replacement or repeat supply?
Yes. Replacement and repeat orders are easier when the original marking, measured dimensions, photos, application, and quantity are available. If the marking is unclear, the team can start from the size and working condition.
Which product family does this bearing belong to?
This item is handled within the Taper Roller Bearings family. Comparing the family page can help buyers review similar sizes, seal options, load direction, and related bearing choices before requesting a quote.
What affects price and lead time for this bearing?
Price and lead time can change with quantity, stock availability, precision grade, clearance, material, cage, seal or shield type, lubrication, packaging, and whether the order needs standard matching or custom production.
How is this bearing checked before delivery?
Inspection can include material review, dimensional measurement, noise and vibration checks, surface and crack checks, visual review, and packaging inspection according to the confirmed order requirements.
Need help checking fit, price, or lead time? Request a bearing quote
