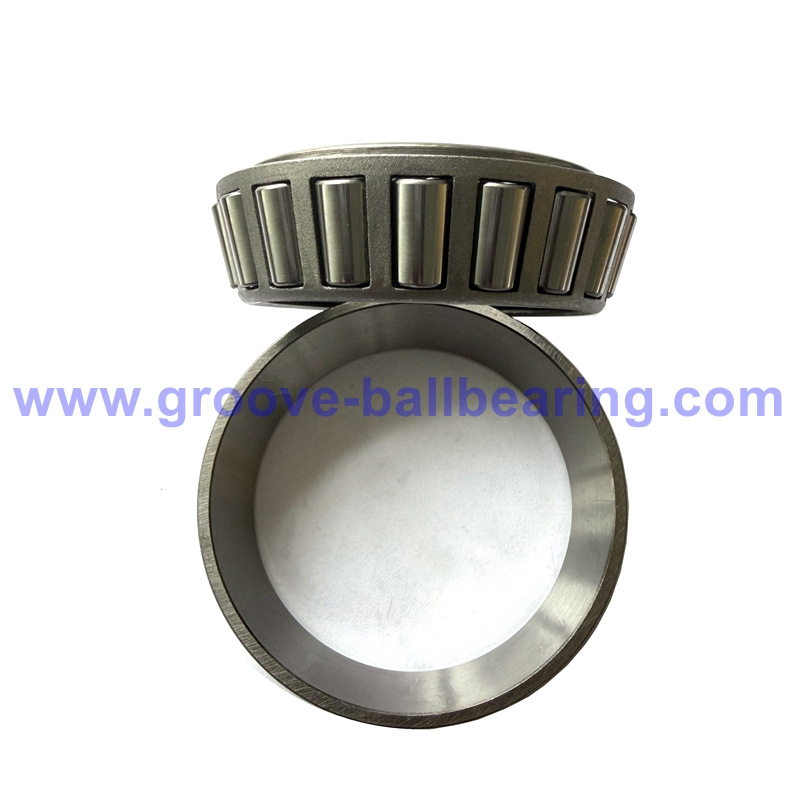

JLM67042/LM67010 Bearing SET30 Taper Roller Bearing Set
Cone: JLM67042
Cup: LM67010
Bore (d): 27mm
Outer Diameter (D): 59.13mm
Cone Width (B): 16.76mm
Mass: 0.22kg
Cage: steel
Material: chrome steel
JLM67042/LM67010 Bearing Specification:
JLM67042/LM67010 bearing features a tapered roller design.
Regarding this bearing,
Cone: JLM67042
Cup: LM67010
Bore (d): 27mm
Outer Diameter (D): 59.13mm
Cone Width (B): 16.76mm
Mass: 0.22kg
Cage: steel
Material: chrome steel
Hardness: 58-64 HRC
Seal Type: open
Load Type: radial + axial
Precision: standard ABEC1, P0
Lubrication: standard grease
Category: single row tapered roller bearing
Equivalents: JLM67042-LM67010, LM67042/LM67010, SET30, SET30-SA002
Key Features:
Combined load capability: Designed to support both radial and axial loads, ideal for wheel-end and power transmission assemblies.
Optimized tapered roller geometry: SET30 bearing promotes smooth rotation and stable contact between rollers and raceways.
High load-carrying design: Suitable for heavy-duty operating conditions when properly installed and lubricated.
Durable raceway/roller contact: Helps reduce wear and improves service stability in demanding environments.
Improved running stability: Performs reliably under vibration and shock, supporting consistent operation.
Precision fit potential: Manufactured for accurate assembly, helping maintain alignment and reducing abnormal noise.
Questions that help when JLM67042/LM67010 and SET30 is on the shortlist
When is JLM67042/LM67010 and SET30 worth comparing against nearby taper roller bearings options?
Comparison helps when dimensional fit is only part of the decision and load direction, sealing, clearance, speed, temperature, or repeat-order stability still need to be confirmed. Reviewing one or two nearby options early usually reduces sourcing mistakes later.
What details usually matter before approving JLM67042/LM67010 and SET30 for repeat supply?
Buyers normally confirm the part reference, main dimensions, application, speed range, operating environment, sealing needs, and any packaging or marking requirements. That gives the supplier a cleaner basis for confirming availability and suitable alternatives.
Which next step usually helps after JLM67042/LM67010 and SET30 is shortlisted?
A quick review of Taper Roller Bearings, one more commercial destination, and one practical guide usually saves time. That combination helps separate simple replacement orders from jobs that still need fit or application review.
Why keep a supporting guide linked beside JLM67042/LM67010 and SET30?
Because it makes later decisions faster. When sizing notes, application cues, and nearby options stay close to the product, engineering, purchasing, and maintenance teams can revisit the same logic without starting the review from zero.
Shipping Method:
1. Sea shipping for mass cargos (GW > 500KGS)
2. Air shipping (GW between 100KGS – 500 KGS)
3. Express, such as DHL, TNT, Fedex, UPS for small cargos ( GW < 100KGS)
4. If you have shipping agent in China, we can send goods to your shipping agent's warehouse
Payment Terms:
We accept T/T, W/U, PAYPAL, L/C etc
Buyer FAQ
Questions buyers ask before choosing the next bearing option
What should I confirm before ordering JLM67042/LM67010 Bearing SET30 Taper Roller Bearing Set?
Confirm the bearing number, bore size, outside diameter, width, seal or shield type, cage material, clearance, precision level, quantity, and application. These details help prevent a size match from becoming a performance mismatch.
Can this bearing be matched for replacement or repeat supply?
Yes. Replacement and repeat orders are easier when the original marking, measured dimensions, photos, application, and quantity are available. If the marking is unclear, the team can start from the size and working condition.
Which product family does this bearing belong to?
This item is handled within the Taper Roller Bearings family. Comparing the family page can help buyers review similar sizes, seal options, load direction, and related bearing choices before requesting a quote.
What affects price and lead time for this bearing?
Price and lead time can change with quantity, stock availability, precision grade, clearance, material, cage, seal or shield type, lubrication, packaging, and whether the order needs standard matching or custom production.
How is this bearing checked before delivery?
Inspection can include material review, dimensional measurement, noise and vibration checks, surface and crack checks, visual review, and packaging inspection according to the confirmed order requirements.
Need help checking fit, price, or lead time? Request a bearing quote
