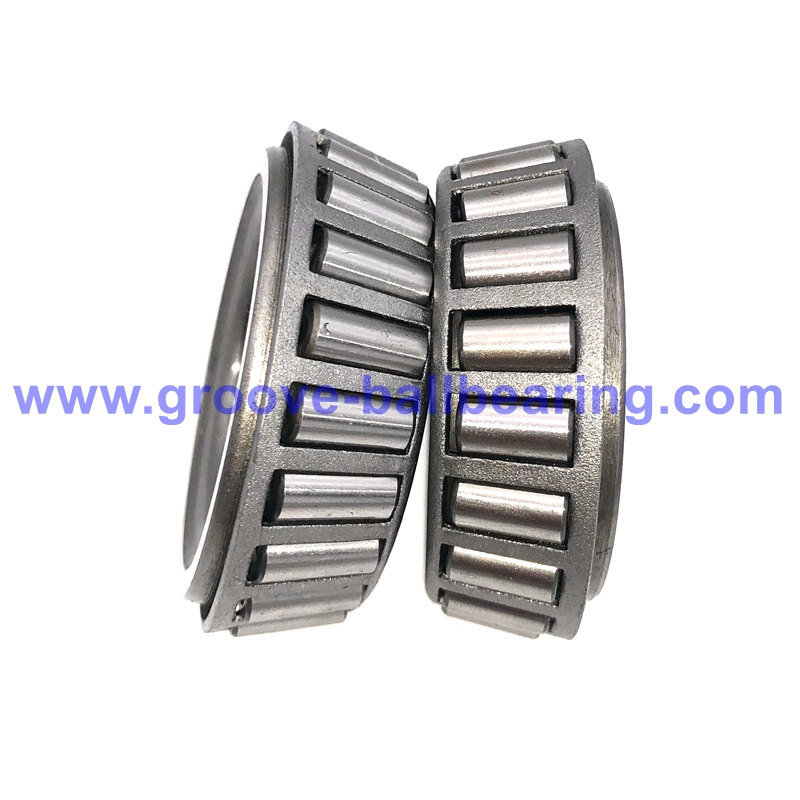

386A Bearing Cone 386A-20024 Single Cone Imperial

386A Bearing Cone Specification

386A Bearing Cone Bore (d): 47.625 mm/ 1.875 inch
Cone Width (B): 21.946 mm/ 0.864 inch
Cage Material: stamped steel
Ring & Rollers Material: chrome steel
Mass: 0.55kg/ 1.213lb
Seal Type: open
Lubrication: grease
Equivalents: 386 A, 386A-20024, 4T-386A
Compatible Cups: 382A, 384D, 384ED
Category: taper roller bearing cone
Operating Temperature Range: –30 °C to +120 °C (–22 °F to +248 °F)
Suffix “A” Meaning: varies from base P/N in radius, bore, or roller complement

Key Features:

1. Cone component (removable inner assembly): Includes the inner ring + tapered rollers (not the cup/outer ring).
2. Pairs with a separate cup: Forms a complete single-row tapered roller bearing when matched with the correct cup (outer ring).
3. Handles combined loads: Designed to carry radial loads plus axial (thrust) loads in one direction.
4. Reduced wear design: Conical raceways + tapered rollers minimize sliding, helping reduce wear during operation.
5. Easy installation & adjustment: Cone and cup are separable for mounting, and end play/preload can be adjusted by axial positioning during assembly.
