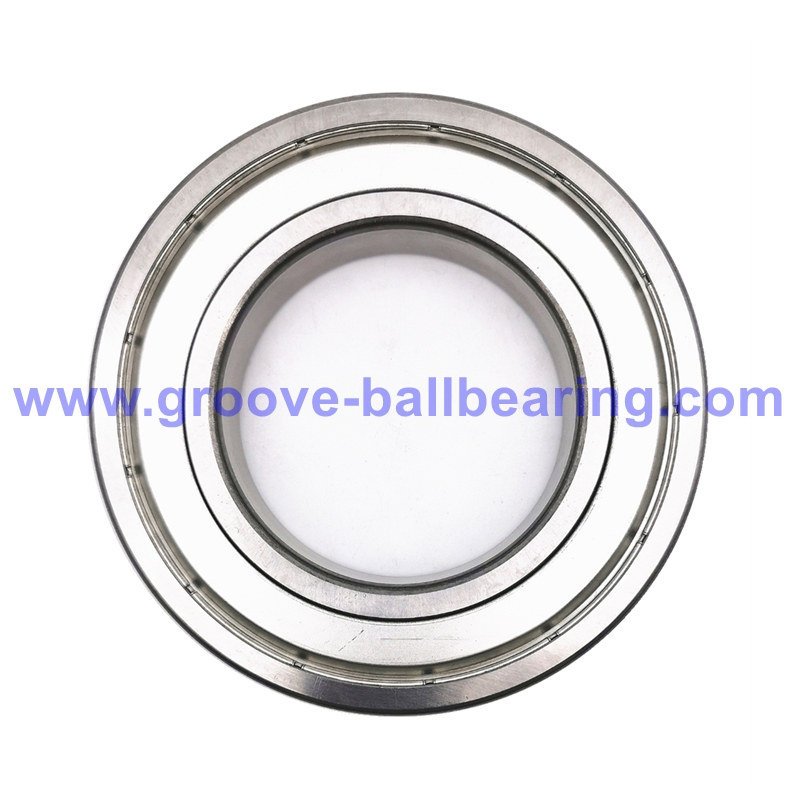

6309 ZZC3 Bearing 6309-ZZC3 Radial Ball Bearing

6309 ZZC3 Bearing Specification:

6309 ZZC3 Bearing Bore: 45mm
Outer Diameter: 100mm
Bearing Width: 25mm
Mass: 0.83kg
Material: bearing steel
Type: 6300 series
Number of Row: single
Shield: metal shield on both sides
Tolerance: standard P0, ABEC1
Radial Internal Clearance: C3
Lubrication: grease or oil
Category: radial deep groove ball bearing
Working Temperature: -30°C to 120 °C
Equivalents: 6309ZZC3, 6309-ZZC3, 6309 ZZ C3, 6309-2Z/C3, 6309-2Z-C3

Key Features:

1. Bearing 6309-2Z-C3 Uses a double metal shield design to help keep grease inside and block dust or contaminants.
2. Provides C3 internal clearance, which gives extra space for thermal expansion and high-speed operation.
3. 6309-2Z/C3 supports radial loads and moderate axial loads in both directions.
4. Runs smoothly at high speeds, making it suitable for electric motors, fans, pumps, and industrial equipment.
5. Comes pre-lubricated with grease, so users can install it directly in most applications.
6. Reduces maintenance needs with its double shielded structure and grease lubrication.
