Cone Number: 497
Cup Number: 492A
d (Bore): 85,725 mm
D (Outer Diameter): 133,35 mm
B (Cone Width): 29,769 mm
T (Total Width): 30,162 mm
Mass: 1.43kg/ 3.153lb
Material: bearing steel

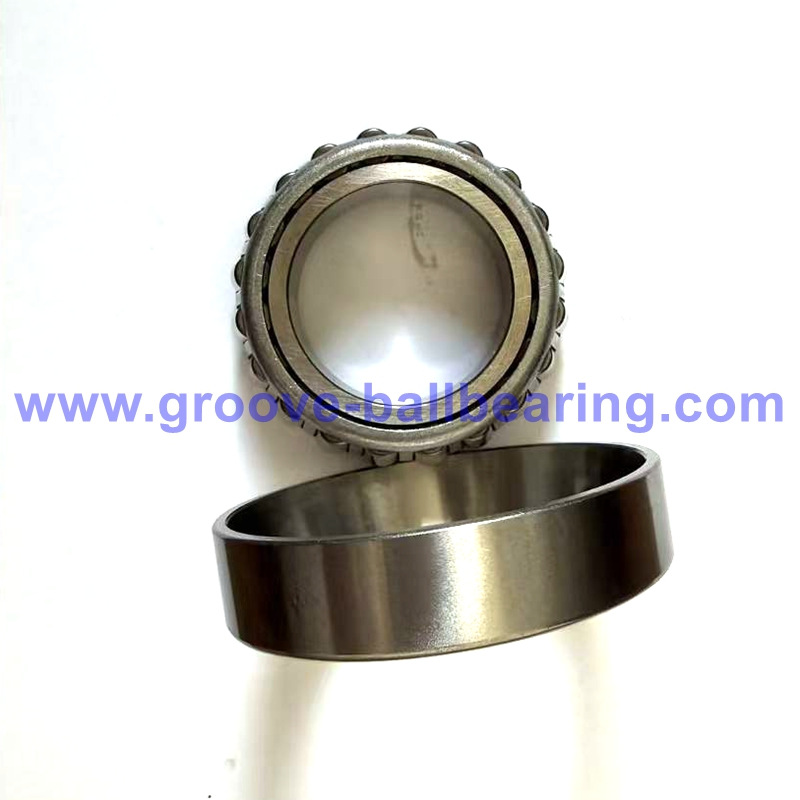

497-492A Bearing Cone: 497
Cup Number: 492A
d (Bore): 85,725 mm
D (Outer Diameter): 133,35 mm
B (Cone Width): 29,769 mm
T (Total Width): 30,162 mm
Mass: 1.43kg/ 3.153lb
Material: bearing steel
Limit Speed: 2300RPM
Lubrication: grease or oil
Precision: standard ABEC1, P0
Category: single row tapered roller bearing
Replacements: 497/492A, 4T-497/492A, 497/492A/Q, 497-90056, 497-99402, SET208, Set 208, set 208, VKHB7009
| Bearing Model Number | Dimensions (d*D*T)/mm | Mass (kg) |
| JM716648/JM716610 | 85.000×130.000×30.000 | 1.320 |
| JM716649/JM716610 | 85.000×130.000×30.000 | 1.360 |
| JHM516849/JHM516810 | 85.000×140.000×39.000 | 2.270 |
| 665X/653 | 85.000×146.050×41.275 | 2.630 |
| 665X/653X | 85.000×150.000×41.275 | 2.860 |
| JH217249/JH217210 | 85.000×150.000×46.000 | 3.340 |
| 90334/90744 | 85.000×188.912×53.297 | 6.570 |
| 98335/38788 | 85.000×200.000×52.761 | 7.700 |
| 749/743 | 85.026×150.000×44.455 | 3.200 |
| 749/742 | 85.026×150.089×44.450 | 3.250 |
| 749-S/742 | 85.026×150.089×44.450 | 3.220 |
| 497/492A | 85.725×133.350×30.162 | 1.400 |

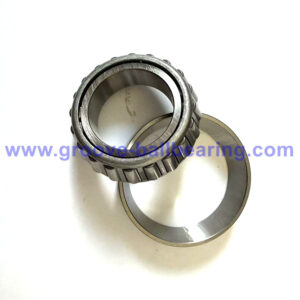

| 497/493 | 85.725×136.525×30.162 | 1.510 |
| 497A/493 | 85.725×136.525×30.162 | 1.480 |
| HM617048/HM617010 | 85.725×142.138×42.862 | 2.640 |
| HM617049/HM617010 | 85.725×142.138×42.862 | 2.620 |
Q1: Is this bearing separable?
A1: Yes, this bearing consists of an inner cone and an outer cup, which can be separated from each other.
Q2: What applications is this tapered roller bearing suitable for?
A2: It is commonly used in industrial machinery, automotive parts, heavy equipment, and other scenarios requiring high load capacity and durability.
Q3: How should I properly install this bearing?
A3: Proper installation involves cleaning the bearing and housing, aligning the components correctly, applying appropriate lubrication, and using the correct tools to prevent damage.
Q4: How should I store this bearing when not in use?
A4: Store it in a clean, dry environment, away from dust, moisture, and corrosive substances. Keep the bearing in its original packaging until ready for use.
