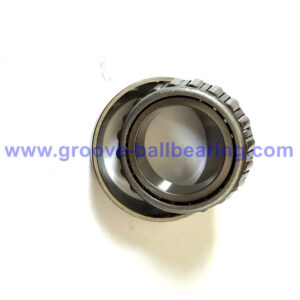

JM716648/JM716610 Bearing SET1181 Tapered Bearing 85mm Bore
Cone Number: JM716648
Cup Number: JM716610
Bore (d): 85mm
Outer Diameter (D): 30mm
Cone Width (B): 29mm
Total Width (T):30mm
Mass: 1.32kg/ 2.91lb
Bearing Cage: steel
Material: 52100 bearing steel
JM716648/JM716610 Bearing Specification:
JM716648/JM716610 bearing features a single row roller bearing.
Concerning this bearing model,
Cone Number: JM716648
Cup Number: JM716610
Bore (d): 85mm
Outer Diameter (D): 30mm
Cone Width (B): 29mm
Total Width (T):30mm
Mass: 1.32kg/ 2.91lb
Bearing Cage: steel
Material: 52100 bearing steel
Sealing Type: open
Category: tapered roller bearing
Lubrication: standard grease or oil
Operating Temperature Range: -30 ºC to 120 ºC
Also Known As: JM716648 / JM716610, JM716648-JM716610, JM716648 – JM716610, SET1181, SET 1181, Set1181, JM716648/610, JM716648/10, JM716648-99402, 4T-JM716648/JM716610
Key Features:
1. JM716648/JM716610 bearings handle heavy loads effectively, making them ideal for demanding industrial applications such as construction equipment and heavy machinery.
2. Guarantee smooth and reliable operation through precise engineering, reducing vibration and ensuring consistent performance over time.
3. Widely applicable in industrial machinery, this bearing enhances machine stability, reduces downtime, and improves overall efficiency.
4. Deliver a long service life when properly maintained, helping users reduce maintenance costs and improve overall machinery uptime.
Durable Tapered Roller Bearings We Offer:
| Bearing Model | Bore (mm) | OD (mm) | Total Width(mm) | Mass(kg) |
| 3782/3720 | 44.450 | 93.264 | 30.162 | 0.959 |
| 28682/28622 | 57.150 | 97.630 | 24.608 | 0.749 |
| 39590/39520 | 66.675 | 112.712 | 30.162 | 1.280 |
| 45280/45220 | 44.450 | 104.775 | 30.162 | 1.330 |
| 45284/45220 | 50.800 | 104.775 | 30.162 | 1.240 |
| 47686/47620 | 82.550 | 133.350 | 3.338 | 1.720 |
| HM212047/HM212011 | 63.500 | 122.238 | 38.100 | 1.930 |
| HM 212049/HM 212011 | 66.675 | 122.238 | 38.100 | 1.850 |
| HM88542/HM88510 | 31.750 | 73.025 | 29.370 | 0.610 |
| LM104949/JLM l 04910 | 50.800 | 82.000 | 21.976 | 0.420 |
| 25877/25821 | 34.925 | 73.025 | 23.812 | 0.470 |
| HM89446NHM89410 | 34.925 | 76.200 | 29.370 | 0.640 |
| L44642/L44610 | 25.400 | 50.292 | 14.224 | 0.120 |
| JLM104948/JLM l 04910 | 50.000 | 82.000 | 21.500 | 0.430 |
| JLM506849/JLM506810 | 55.000 | 90.000 | 23.000 | 0.540 |
| M88046/M88010 | 31.750 | 68.262 | 22.225 | 0.390 |
| HM88649/HM88610 | 34.925 | 72.233 | 25.400 | 0.489 |
| M88043/M88010 | 30.163 | 68.263 | 22.225 | 0.402 |
| LM29749/LM29711 | 38.100 | 65.088 | 19.812 | 0.250 |
Questions that help when JM716648/JM716610 and SET1181 is on the shortlist
When is JM716648/JM716610 and SET1181 worth comparing against nearby taper roller bearings options?
Comparison helps when dimensional fit is only part of the decision and load direction, sealing, clearance, speed, temperature, or repeat-order stability still need to be confirmed. Reviewing one or two nearby options early usually reduces sourcing mistakes later.
What details usually matter before approving JM716648/JM716610 and SET1181 for repeat supply?
Buyers normally confirm the part reference, main dimensions, application, speed range, operating environment, sealing needs, and any packaging or marking requirements. That gives the supplier a cleaner basis for confirming availability and suitable alternatives.
Which next step usually helps after JM716648/JM716610 and SET1181 is shortlisted?
A quick review of Taper Roller Bearings, one more commercial destination, and one practical guide usually saves time. That combination helps separate simple replacement orders from jobs that still need fit or application review.
Why keep a supporting guide linked beside JM716648/JM716610 and SET1181?
Because it makes later decisions faster. When sizing notes, application cues, and nearby options stay close to the product, engineering, purchasing, and maintenance teams can revisit the same logic without starting the review from zero.
Shipping Method:
1. Sea shipping for mass cargos (GW > 500KGS)
2. Air shipping (GW between 100KGS – 500 KGS)
3. Express, such as DHL, TNT, Fedex, UPS for small cargos ( GW < 100KGS)
4. If you have shipping agent in China, we can send goods to your shipping agent's warehouse
Payment Terms:
We accept T/T, W/U, PAYPAL, L/C etc
Buyer FAQ
Questions buyers ask before choosing the next bearing option
What should I confirm before ordering JM716648/JM716610 Bearing SET1181 Tapered Bearing 85mm Bore?
Confirm the bearing number, bore size, outside diameter, width, seal or shield type, cage material, clearance, precision level, quantity, and application. These details help prevent a size match from becoming a performance mismatch.
Can this bearing be matched for replacement or repeat supply?
Yes. Replacement and repeat orders are easier when the original marking, measured dimensions, photos, application, and quantity are available. If the marking is unclear, the team can start from the size and working condition.
Which product family does this bearing belong to?
This item is handled within the Taper Roller Bearings family. Comparing the family page can help buyers review similar sizes, seal options, load direction, and related bearing choices before requesting a quote.
What affects price and lead time for this bearing?
Price and lead time can change with quantity, stock availability, precision grade, clearance, material, cage, seal or shield type, lubrication, packaging, and whether the order needs standard matching or custom production.
How is this bearing checked before delivery?
Inspection can include material review, dimensional measurement, noise and vibration checks, surface and crack checks, visual review, and packaging inspection according to the confirmed order requirements.
Need help checking fit, price, or lead time? Request a bearing quote
