d – Internal Diameter: 57.15 mm
D – Outer Diameter: 97.63mm
B – Inner Ring Width: 24.608mm
T – Total Width: 24.608mm
Mass: 0.75kg/ 1.653lb
Limit Speed (grease): 2700RPM
Material: bearing steel, Gcr15
Operating Temperature: -30 °C to 120 °C

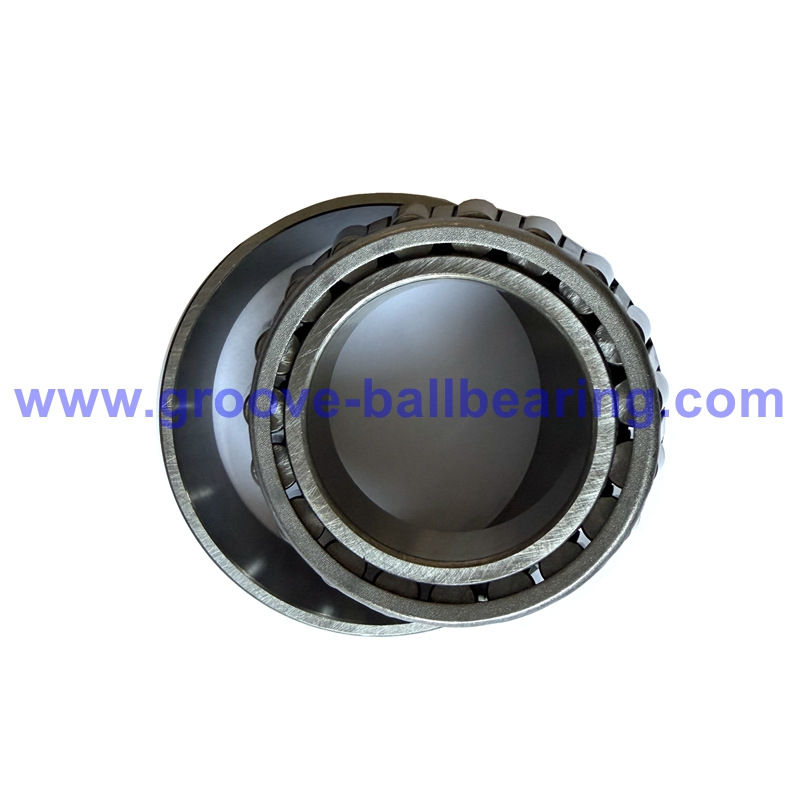

SET407 bearing is a comprehensive bearing set that includes both the cone and cup.
Regarding this bearing model,
d – Internal Diameter: 57.15 mm
D – Outer Diameter: 97.63mm
B – Inner Ring Width: 24.608mm
T – Total Width: 24.608mm
Mass: 0.75kg/ 1.653lb
Limit Speed (grease): 2700RPM
Material: bearing steel, Gcr15
Number of Row: single
Relubricate Holes: without
Precision: ABEC1 (P0)
Lubrication: standard grease or oil
Operating Temperature: -30 °C to 120 °C
Equivalents: Set 407, set 407, SET407-900SA, 28682/28622, 28682-28622, 4T-28682/28622, 28682/622, 28682-99401
| SET Number | SET Components | Mass (kg/set) |
| SET1 | LM11749/LM11710 | 0.081 |
| SET2 | LM11949/LM11910 | 0.125 |
| SET3 | M12649/M12610 | 0.169 |
| SET4 | L44649/L44610 | 0.12 |
| SET5 | LM48548/LM48510 | 0.241 |
| SET6 | LM67048/LM67010 | 0.182 |
| SET8 | L45449/L45410 | 0.11 |
| SET10 | U399/K426898 | 0.18 |
| SET11 | JL69349/JL69310 | 0.196 |
| SET12 | LM12749/LM12710 | 0.12 |
| SET13 | L68149/L68110 | 0.17 |
| SET14 | L44643/L44610 | 0.13 |
| SET15 | 07100/07196 | 0.12 |
| SET16 | LM12749/LM12711 | 0.12 |
| SET18 | LM102949/LM102911 | 0.33 |
| SET20 | U399A/K518783/K523967 | 0.3 |
| SET21 | 1988/1922 | 0.228 |
| SET27 | LM67048/LM67010BCE | 0.249 |
| SET37 | LM603049/LM603011 | 0.37 |
| SET38 | LM104949/LM104911 | 0.418 |
| SET43 | 15123/15245 | 0.23 |
| SET45 | LM501349/LM501310 | 0.33 |
| SET47 | LM102949/LM102910 | 0.32 |
| SET56 | LM29748/LM29710 | 0.22 |
| SET63 | M88048/M88010 | 0.38 |
| SET64 | HM903249/HM903210 | 0.99 |
| SET65 | M86647/M86610 | 0.35 |
1. Sea shipping for mass cargos (GW > 500KGS)
2. Air shipping (GW between 100KGS – 500 KGS)
3. Express, such as DHL, TNT, Fedex, UPS for small cargos ( GW < 100KGS)
4. If you have shipping agent in China, we can send goods to your shipping agent's warehouse
We accept T/T, W/U, PAYPAL, L/C etc
