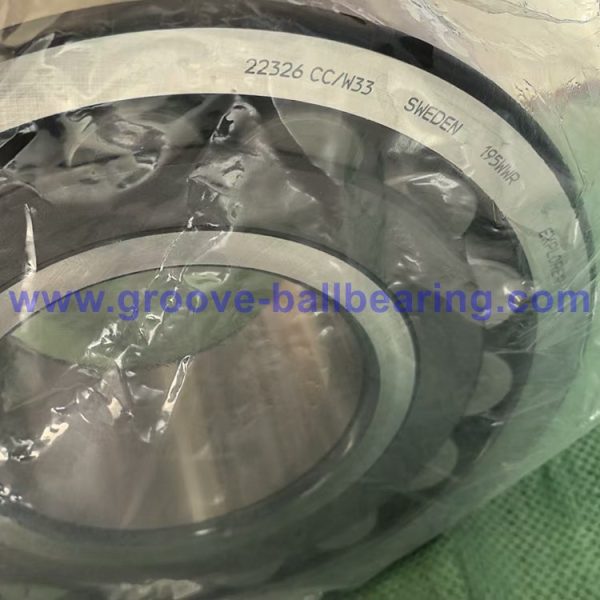

22326 Bearing 22326 CC/W33 Spherical Bearing 130-280-93

22326 Bearing 22326 CC/W33 Spherical Roller Bearing 130-280-93

Bore: 130mm
Outside diameter: 280mm
Width: 93mm
Mass: 27.7kg
Sealing type: open
CC: Two window-type steel cages, with a flangeless inner ring and a guide ring centered on the inner ring
W33: The bearing’s outer ring features a lubrication groove and 3 holes

22326 Bearing Datasheet:

22326 bearing can accommodate heavy loads in both directions. For this bearing,

Bore	130mm
Outside diameter	280mm
Width	93mm
Mass	28kg
Internal Play	Standard C0 or CN
Sealing type	Open
Relubrication feature	With
Precision	ABEC1, ABEC3, ABEC5
CC	Two window-type steel cages, with a flangeless inner ring and a guide ring centered on the inner ring
W33	The bearing’s outer ring features a lubrication groove and 3 holes

Other Sphercial Roller Bearings We Can Provide:

Bearings NO.	d/mm	D/mm	B/mm	C/kN	C0/kN	Weight/kg
22326 CC/W33	130	280	93	1120	1320	28
22326 CCJA/W33VA405	130	280	93	1120	1320	28
22326 CCK/W33	130	280	93	1120	1320	28.5
22326 CCKJA/W33VA405	130	280	93	1120	1320	28.5
23028 CC/W33	140	210	53	465	680	6.55
23028 CCK/W33	140	210	53	465	680	6.35
24028 CC/W33	140	210	69	570	900	8.55
24028 CCK30/W33	140	210	69	570	900	8.4
24028-2CS2/VT143	140	210	69	570	900	8.55
23128 CC/W33	140	225	68	630	900	10.5
23128 CCK/W33	140	225	68	630	900	10
24128 CC/W33	140	225	85	765	1160	13.5
24128 CCK30/W33	140	225	85	765	1160	13.5
24128-2CS2/VT143	140	225	85	765	1160	13.5
22228 CC/W33	140	250	68	710	900	14
22228 CCK/W33	140	250	68	710	900	13.5
23228 CC/W33	140	250	88	915	1250	19
23228 CCK/W33	140	250	88	915	1250	18.5
23228-2CS5/VT143	140	250	88	915	1250	19.5
22328 CC/W33	140	300	102	1290	1560	36.5
22328 CCJA/W33VA405	140	300	102	1290	1560	36.5
22328 CCK/W33	140	300	102	1290	1560	36
22328 CCKJA/W33VA405	140	300	102	1290	1560	35.5
23030 CC/W33	150	225	56	510	750	7.95
23030 CCK/W33	150	225	56	510	750	7.7
24030 CC/W33	150	225	75	655	1040	10.5
24030 CCK30/W33	150	225	75	655	1040	10.5
24030-2CS2/VT143	150	225	75	655	1040	10.5
23130 CC/W33	150	250	80	830	1200	16
23130 CCK/W33	150	250	80	830	1200	15.5
24130 CC/W33	150	250	100	1020	1530	20
24130 CCK30/W33	150	250	100	1020	1530	19.5
24130-2CS2/VT143	150	250	100	1020	1530	19.5
22230 CC/W33	150	270	73	850	1080	18
22230 CCK/W33	150	270	73	850	1080	17.5
23230 CC/W33	150	270	96	1080	1460	24.5
23230 CCK/W33	150	270	96	1080	1460	24
22330 CC/W33	150	320	108	1460	1760	43.5
22330 CCJA/W33VA405	150	320	108	1460	1760	43.5
22330 CCK/W33	150	320	108	1460	1760	42.5
22330 CCKJA/W33VA405	150	320	108	1460	1760	42.5
23032 CC/W33	160	240	60	585	880	9.7
23032 CCK/W33	160	240	60	585	880	9.4
24032 CC/W33	160	240	80	750	1200	13
24032 CCK30/W33	160	240	80	750	1200	13
24032-2CS2/VT143	160	240	80	750	1200	13
23132 CC/W33	160	270	86	980	1370	20.5
23132 CCK/W33	160	270	86	980	1370	20

Key Features of Spherical Roller Bearings:

Accommodates Heavy Loads: 22326 bearing is designed to handle heavy loads in both radial and axial directions.

Self-Aligning Capability: Automatically compensates for misalignment and shaft deflections without significant increase in friction or temperature.

Relubrication Features: Includes design elements that make relubrication easy and efficient, supporting long-term operation.

Low Friction and Long Service Life: Engineered for minimal friction, resulting in extended bearing life.

High Wear Resistance: Enhanced materials and design provide increased resistance to wear.

Modular System Compatibility: Can be used with housings, sleeves, and nuts for versatile installation options.

Category: Spherical Roller Bearings Tags: Spherical Bearing, Double Row Spherical Roller Bearing

Description
Shipping & Payment Terms

Description

Bore	130mm
Outside diameter	280mm
Width	93mm
Mass	28kg
Internal Play	Standard C0 or CN
Sealing type	Open
Relubrication feature	With
Precision	ABEC1, ABEC3, ABEC5
CC	Two window-type steel cages, with a flangeless inner ring and a guide ring centered on the inner ring
W33	The bearing’s outer ring features a lubrication groove and 3 holes

Bearings NO.	d/mm	D/mm	B/mm	C/kN	C0/kN	Weight/kg
22326 CC/W33	130	280	93	1120	1320	28
22326 CCJA/W33VA405	130	280	93	1120	1320	28
22326 CCK/W33	130	280	93	1120	1320	28.5
22326 CCKJA/W33VA405	130	280	93	1120	1320	28.5
23028 CC/W33	140	210	53	465	680	6.55
23028 CCK/W33	140	210	53	465	680	6.35
24028 CC/W33	140	210	69	570	900	8.55
24028 CCK30/W33	140	210	69	570	900	8.4
24028-2CS2/VT143	140	210	69	570	900	8.55
23128 CC/W33	140	225	68	630	900	10.5
23128 CCK/W33	140	225	68	630	900	10
24128 CC/W33	140	225	85	765	1160	13.5
24128 CCK30/W33	140	225	85	765	1160	13.5
24128-2CS2/VT143	140	225	85	765	1160	13.5
22228 CC/W33	140	250	68	710	900	14
22228 CCK/W33	140	250	68	710	900	13.5
23228 CC/W33	140	250	88	915	1250	19
23228 CCK/W33	140	250	88	915	1250	18.5
23228-2CS5/VT143	140	250	88	915	1250	19.5
22328 CC/W33	140	300	102	1290	1560	36.5
22328 CCJA/W33VA405	140	300	102	1290	1560	36.5
22328 CCK/W33	140	300	102	1290	1560	36
22328 CCKJA/W33VA405	140	300	102	1290	1560	35.5
23030 CC/W33	150	225	56	510	750	7.95
23030 CCK/W33	150	225	56	510	750	7.7
24030 CC/W33	150	225	75	655	1040	10.5
24030 CCK30/W33	150	225	75	655	1040	10.5
24030-2CS2/VT143	150	225	75	655	1040	10.5
23130 CC/W33	150	250	80	830	1200	16
23130 CCK/W33	150	250	80	830	1200	15.5
24130 CC/W33	150	250	100	1020	1530	20
24130 CCK30/W33	150	250	100	1020	1530	19.5
24130-2CS2/VT143	150	250	100	1020	1530	19.5
22230 CC/W33	150	270	73	850	1080	18
22230 CCK/W33	150	270	73	850	1080	17.5
23230 CC/W33	150	270	96	1080	1460	24.5
23230 CCK/W33	150	270	96	1080	1460	24
22330 CC/W33	150	320	108	1460	1760	43.5
22330 CCJA/W33VA405	150	320	108	1460	1760	43.5
22330 CCK/W33	150	320	108	1460	1760	42.5
22330 CCKJA/W33VA405	150	320	108	1460	1760	42.5
23032 CC/W33	160	240	60	585	880	9.7
23032 CCK/W33	160	240	60	585	880	9.4
24032 CC/W33	160	240	80	750	1200	13
24032 CCK30/W33	160	240	80	750	1200	13
24032-2CS2/VT143	160	240	80	750	1200	13
23132 CC/W33	160	270	86	980	1370	20.5
23132 CCK/W33	160	270	86	980	1370	20

Shipping & Payment Terms

Shipping Method:

1. Sea shipping for mass cargos (GW > 500KGS)

2. Air shipping (GW between 100KGS – 500 KGS)

3. Express, such as DHL, TNT, Fedex, UPS for small cargos ( GW < 100KGS)

4. If you have shipping agent in China, we can send goods to your shipping agent's warehouse

shipping

Payment Terms:

We accept T/T, W/U, PAYPAL, L/C etc
