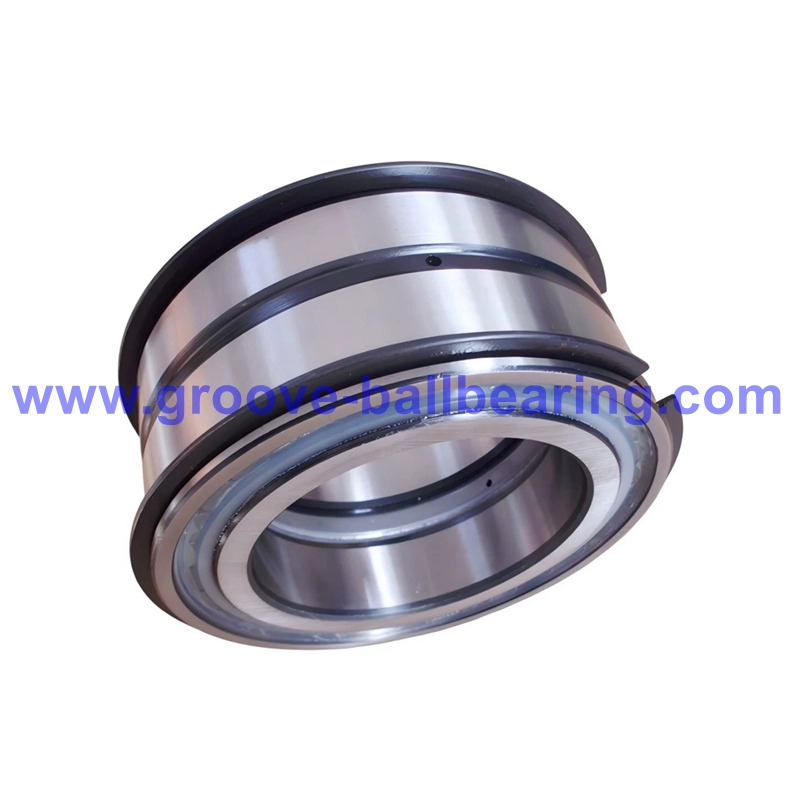

SL04-5022NR Bearing SL045022-PP-2NR Cylindrical Roller Bearing
Bearing Bore: 110mm
Outer Diameter: 170mm
Bearig Width: 80mm
Mass: 6.52kg
Bore Type: round
Material: bearing steel
Seal: double shielded
Snap Rings: with
Operating Temperature: -30ºC to 120 ºC
SL04-5022NR Bearing Specification:
SL04-5022NR Bearing Bore: 110mm
Outer Diameter: 170mm
Bearig Width: 80mm
Mass: 6.52kg
Bore Type: round
Material: bearing steel
Seal: double shielded
Snap Rings: with
Precision: standard P0, ABEC1
Number of Row: double row
Category: full complement cylindrical roller bearing
Operating Temperature: -30ºC to 120 ºC
Suffix “NR”: two snap rings are mounted in the snap ring grooves of the outer ring
Equivalents: SL045022-PP-2NR, NNF5022ADA-2LSV, NNF5022B.2LS.V, SL045022-PP-2NR
Key Features:
High radial load capacity: The double-row full complement cylindrical roller design gives the bearing strong radial load capacity. It can carry heavier loads than many standard cylindrical roller bearings with a cage.
High radial load capacity: The double-row full complement cylindrical roller design gives the bearing strong radial load capacity. It can carry heavier loads than many standard cylindrical roller bearings with a cage.
High radial load capacity: The double-row full complement cylindrical roller design gives the bearing strong radial load capacity. It can carry heavier loads than many standard cylindrical roller bearings with a cage.
Suitable for low to moderate speeds: The full complement design focuses on load capacity and rigidity. For this reason, the SL045022-PP-2NR bearing works well in low to moderate speed applications where heavy loads are more important than very high speed.
Long service life
When the application, lubrication, and operating conditions are suitable, the bearing can provide long and dependable service life. Its robust design helps it perform well in demanding environments.
Questions that usually come up before ordering SL04-5022NR and SL045022-PP-2NR
When is SL04-5022NR and SL045022-PP-2NR worth comparing against nearby cylindrical roller bearings options?
Comparison helps when dimensional fit is only part of the decision and load direction, sealing, clearance, speed, temperature, or repeat-order stability still need to be confirmed. Reviewing one or two nearby options early usually reduces sourcing mistakes later.
What details usually matter before approving SL04-5022NR and SL045022-PP-2NR for repeat supply?
Buyers normally confirm the part reference, main dimensions, application, speed range, operating environment, sealing needs, and any packaging or marking requirements. That gives the supplier a cleaner basis for confirming availability and suitable alternatives.
Which next step usually helps after SL04-5022NR and SL045022-PP-2NR is shortlisted?
A quick review of Cylindrical Roller Bearings, one more commercial destination, and one practical guide usually saves time. That combination helps separate simple replacement orders from jobs that still need fit or application review.
Why keep a supporting guide linked beside SL04-5022NR and SL045022-PP-2NR?
Because it makes later decisions faster. When sizing notes, application cues, and nearby options stay close to the product, engineering, purchasing, and maintenance teams can revisit the same logic without starting the review from zero.
Shipping Method:
1. Sea shipping for mass cargos (GW > 500KGS)
2. Air shipping (GW between 100KGS – 500 KGS)
3. Express, such as DHL, TNT, Fedex, UPS for small cargos ( GW < 100KGS)
4. If you have shipping agent in China, we can send goods to your shipping agent's warehouse
Payment Terms:
We accept T/T, W/U, PAYPAL, L/C etc
Buyer FAQ
Questions buyers ask before choosing the next bearing option
What should I confirm before ordering SL04-5022NR Bearing SL045022-PP-2NR Cylindrical Roller Bearing?
Confirm the bearing number, bore size, outside diameter, width, seal or shield type, cage material, clearance, precision level, quantity, and application. These details help prevent a size match from becoming a performance mismatch.
Can this bearing be matched for replacement or repeat supply?
Yes. Replacement and repeat orders are easier when the original marking, measured dimensions, photos, application, and quantity are available. If the marking is unclear, the team can start from the size and working condition.
Which product family does this bearing belong to?
This item is handled within the Cylindrical Roller Bearings family. Comparing the family page can help buyers review similar sizes, seal options, load direction, and related bearing choices before requesting a quote.
What affects price and lead time for this bearing?
Price and lead time can change with quantity, stock availability, precision grade, clearance, material, cage, seal or shield type, lubrication, packaging, and whether the order needs standard matching or custom production.
How is this bearing checked before delivery?
Inspection can include material review, dimensional measurement, noise and vibration checks, surface and crack checks, visual review, and packaging inspection according to the confirmed order requirements.
Need help checking fit, price, or lead time? Request a bearing quote
