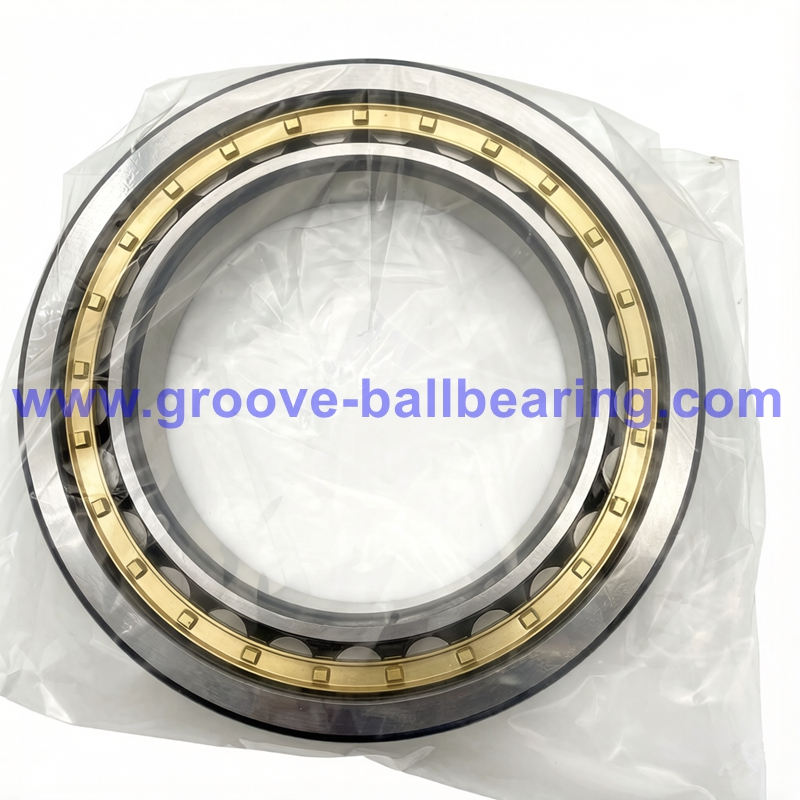

NU1036M Bearing NU1036-XL-M1 Cylindrical Roller Bearing

NU1036M Bearing Specification:

NU1036M bearing features a single row cylindrical roller bearing.
Regarding this bearing,
Bore(d): 180mm
Outer Diameter (D): 280mm
Width (B): 46mm
Mass: 10.4kg
Cage: brass cage
Bearing Material: bearing steel
Lubrication: grease or oil
Tolerance Class: ABEC1, ABEC3, ABEC5
Radial Internal Play: C0, C3 is also available
Replacements: NU 1036 M, NU1036-M1, NU1036-XL-M1, NU1036EM

Key Features:

1. Single-row cylindrical roller bearing design for high radial load capacity.
2. NU type structure with two ribs on the outer ring and no ribs on the inner ring.
3. Separable inner and outer rings for easier mounting, inspection, and maintenance.
4. Machined brass cage “M” design for improved strength, stability, and durability.
5. High-speed capability suitable for demanding industrial applications.
6. Low-friction rolling performance helps reduce heat generation during operation.
