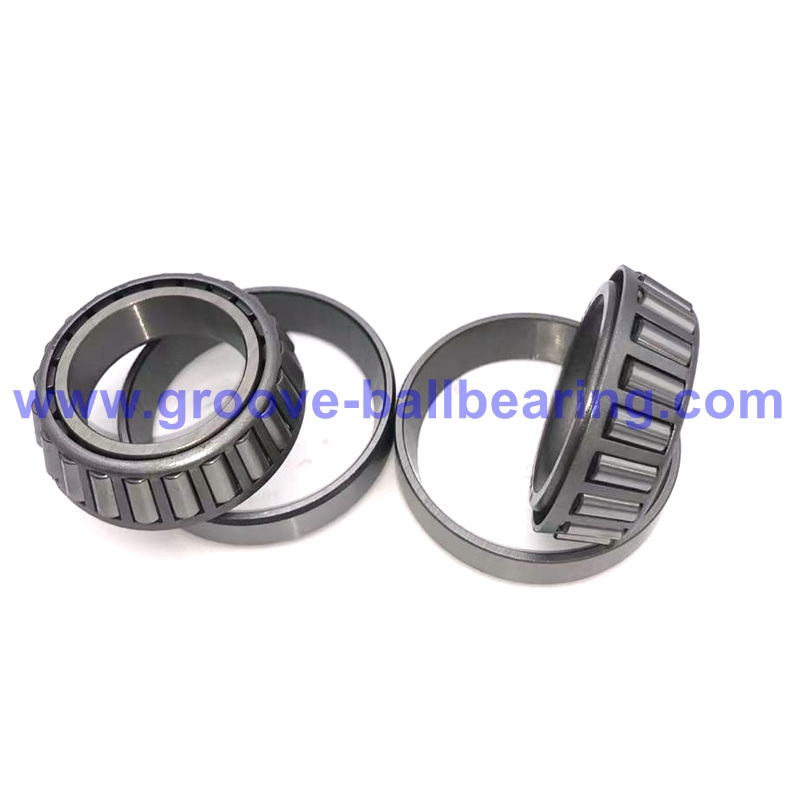

M88036-M88010 Bearing M88036/10 Roller Bearing 1″ X 2.6875″ X 0.875″
Bore: 1 inch/ 25.40mm
Outer Diameter: 2.6875 inch/ 68.263 mm
Cone Width: 0.875 inch/ 22.225 mm
Mass: 0.970lb/ 0.44kg
Cup: M88010
Cone: M88036
Enclosure: open
Category: single row tapered roller bearing
M88036-M88010 Bearing Specification:
M88036-M88010 Bearing Bore: 1 inch/ 25.40mm
Outer Diameter: 2.6875 inch/ 68.263 mm
Cone Width: 0.875 inch/ 22.225 mm
Mass: 0.970lb/0.44kg
Cup: M88010
Cone: M88036
Enclosure: open
Cage: stamped steel
Rings and Rollers: bearing steel
Certificate: ISO9001: 2015
Category: single row tapered roller bearing
Operating Temperature: –30 °C to +120 °C
Also Known As: M88036 – M88010, M88036/M88010, M88036 / M88010, M 88036/M 88010, M88036/10, M88036/010
Durable Inch Series Tapered Roller Bearings:
| Model Number | Specifications(dxDxB) | Mass(kg) |
| 1997X/1922 | 26.988×57.150×19.845 | 0.230 |
| 15580/15523 | 26.987×60.325×19.842 | 0.260 |
| 15106/15245 | 26.987×62.000×19.050 | 0.290 |
| 15106/15250X | 26.987×63.500×20.638 | 0.320 |
| 2684/2631 | 22.225×66.421×25.433 | 0.460 |
| 41106/41286 | 26.987×72.626×24.608 | 0.480 |
| 24112/24261 | 28.575×66.421×19.050 | 0.310 |
| 2689/2631 | 28.575×66.421×23.812 | 0.410 |
| 2474/2420 | 28.575×68.262×22.225 | 0.410 |
| 02474/02420 | 28.575×68.262×22.225 | 0.400 |
| 26112/26274 | 28.575×69.723×19.050 | 0.380 |
| 2578/2523 | 28.575×69.850×23.812 | 0.480 |
| 2578/2523-S | 28.575×69.850×23.812 | 0.480 |
| 26112/26283 | 28.575×72.000×19.000 | 0.390 |
| 41125/41286 | 28.575×72.626×24.608 | 0.460 |
| 41126/41286 | 28.575×72.626×24.608 | 0.470 |
| 3192/3120 | 28.575×72.626×30.162 | 0.610 |
| 3198/3120 | 28.575×72.626×30.162 | 0.620 |
| 02872/02820 | 28.575×73.025×22.225 | 0.480 |
| 02872/02830 | 28.575×73.025×22.225 | 0.480 |
| 26112/26300 | 28.575×76.200×19.000 | 0.450 |
| 3198/3129 | 28.575×76.200×30.612 | 0.710 |
| 43112/43312 | 28.575×79.375×25.400 | 0.610 |
| L45449/L45410 | 29.000×50.292×14.224 | 0.110 |
| 2690/2631 | 29.367×66.421×23.812 | 0.400 |
| HM88644/HM88610 | 31.750×72.233×25.400 | 0.500 |
FAQ:
Q1: What material is used?
A: Typically hardened chrome bearing steel SAE 52100.
Q2; What operating temperatures are acceptable?
A: Standard chrome steel bearings typically operate up to ~120°C with grease.
Q3: How do I ensure proper installation?
A: Clean mating surfaces, check shaft/housing fits, avoid hammering the bearing, and use correct press or fit techniques to prevent damage.
Q4: How do I inspect for wear or damage?
A: Check for noise, vibration, increased running temperature, pitting, spalling, or uneven roller wear; replace if any of these appear.
Questions that usually come up before ordering M88036-M88010 and M88036/10
When is M88036-M88010 and M88036/10 worth comparing against nearby taper roller bearings options?
Comparison helps when dimensional fit is only part of the decision and load direction, sealing, clearance, speed, temperature, or repeat-order stability still need to be confirmed. Reviewing one or two nearby options early usually reduces sourcing mistakes later.
What details usually matter before approving M88036-M88010 and M88036/10 for repeat supply?
Buyers normally confirm the part reference, main dimensions, application, speed range, operating environment, sealing needs, and any packaging or marking requirements. That gives the supplier a cleaner basis for confirming availability and suitable alternatives.
Which next step usually helps after M88036-M88010 and M88036/10 is shortlisted?
A quick review of Taper Roller Bearings, one more commercial destination, and one practical guide usually saves time. That combination helps separate simple replacement orders from jobs that still need fit or application review.
Why keep a supporting guide linked beside M88036-M88010 and M88036/10?
Because it makes later decisions faster. When sizing notes, application cues, and nearby options stay close to the product, engineering, purchasing, and maintenance teams can revisit the same logic without starting the review from zero.
