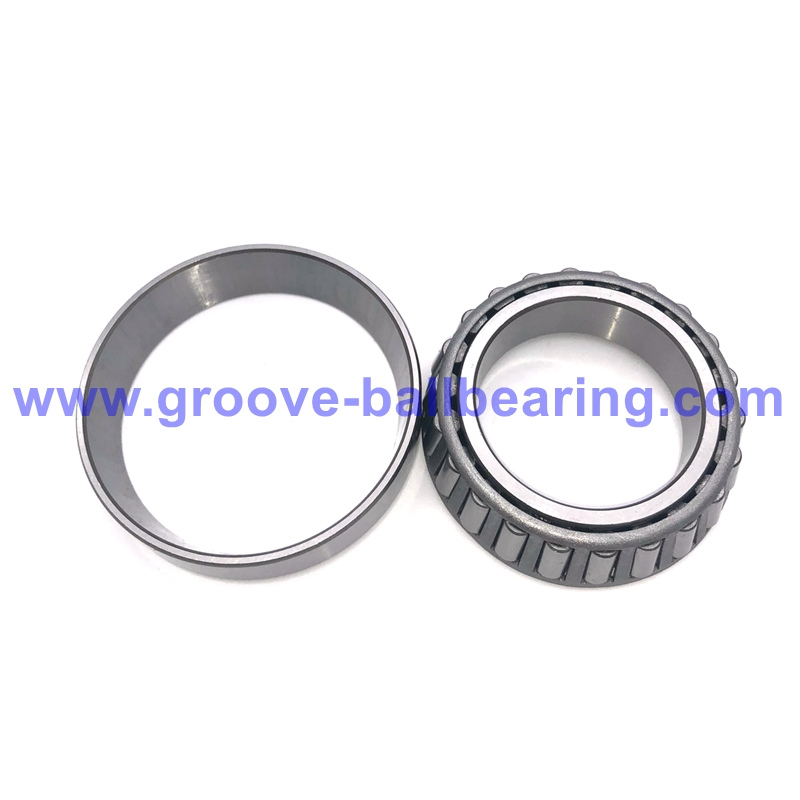

M86649/M86610 Bearing – Set309 Tapered Roller Bearing

M86649/M86610 Bearing Specification:

Bore (d): 30.162 mm
Outer Diameter (D): 64.292 mm
Inner Ring Width (B): 21.433 mm
Total Width (T): 21.433 mm
Weight: 0.34kg
Cone Number: M86649
Cup Number: M86610
Seals: without
Cage: pressed steel
Bearing Material: SAE52100 steel
Precision: standard ABEC1/ P0
Lubrication: grease or oil
Relubrication Holes: without
Working Temperature: -30 °C – 120°C
Structure: single row tapered roller bearing

Key Benefits:

1. Cone and Cup Set
This bearing set includes M86649 cone and M86610 cup, providing a complete tapered roller bearing assembly.

2. High Load Capacity
Suitable for applications requiring strong radial load support and thrust load resistance.

3. Durable Bearing Steel Material
M86649/M86610 bearings are manufactured from high-quality bearing steel for wear resistance, strength, and long service life.

4. Long Service Life
Proper lubrication and installation help the bearing deliver dependable performance over extended operating periods.
