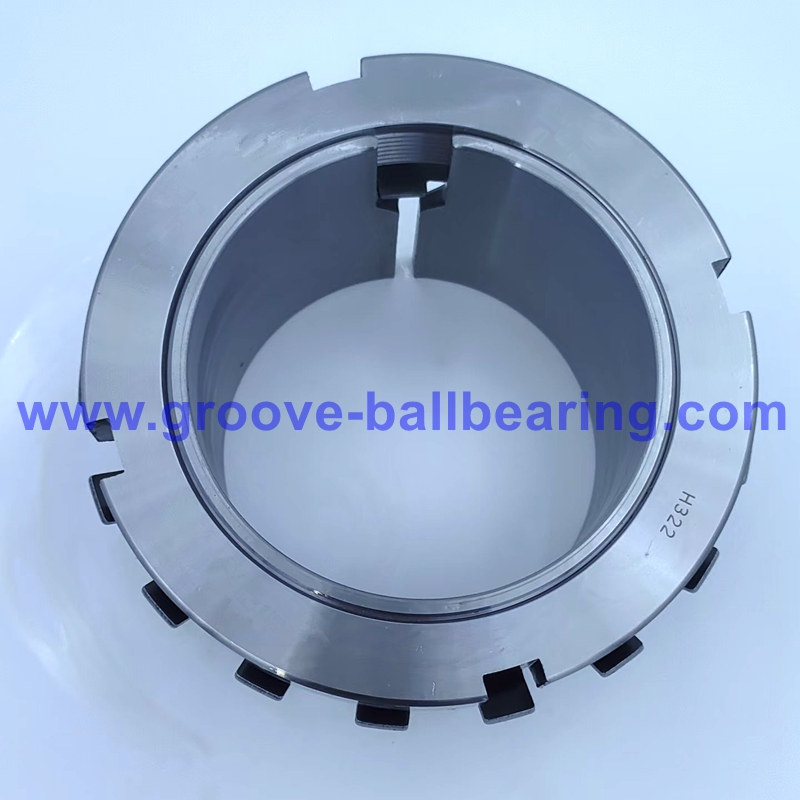

H322 Adapter H 322 Withdrawal Sleeve 100mm Bore

Bore (d1): 100mm
Internal diameter (d): 110mm
Sleeve Length (B1): 77mm
Mass: 2.3kg/ 5.071lb
Thread Size: M110X2
Precision: ABEC1, P0
Equivalents: H 322, H-322
Associated Bearing: 21322K, 22222K, 1322K, 2222K

H322 Adapter Specification:

H322 Adapter Bore (d1): 100mm
Internal diameter (d): 110mm
Sleeve Length (B1): 77mm
Mass: 2.3kg/ 5.071lb
Thread Size: M110X2
Taper: 1 : 12
Material: bearing steel
Category: adapter sleeve
Precision: ABEC1, P0
Equivalents: H 322, H-322
Associated Bearing: 21322K, 22222K, 1322K, 2222K

Wide Selection of Durable Adapter Sleeves:

Bearing No.	Size				Supporting Bearing		Mass(kg)
Bearing No.	d	d1	B1	d2	Supporting Bearing		Mass(kg)
H302	15	12	22	25	1302K 2202K
H303	17	14	24	28	1303K 2203K
H304	20	17	28	32	1304K 2204K	21304K	0.04
H305	25	20	29	38	1305K 2205K	21305K	0.071
H306	30	25	31	45	1306K 2206K	21306K	0.095
H307	35	30	35	52	1307K 2207K	21307K	0.14
H308	40	35	36	58	1308K 2208K	21308K 22208K	0.17
H309	45	40	39	65	1309K 2209K	21309K 22209K	0.23
H310	50	45	42	70	1310K 2210K	21310K 22210K	0.27
H311	55	50	45	75	1311K 2211K	21311K 22211K	0.32
H312	60	55	47	80	1312K 2212K	21312K 22212K	0.36
H313	65	60	50	85	1313K 2213K	21313K 22213K	0.42
H314	70	60	52	92	1314K 2214K	21314K 22214K	0.67
H315	75	65	55	98	1315K 2215K	21315K 22215K	0.78
H316	80	70	59	105	1316K 2216K	21316K 22216K	0.95
H317	85	75	63	110	1317K 2217K	21317K 22217K	1.10
H318	90	80	65	120	1318K 2218K	21318K 22218K	1.30
H319	95	85	68	125	1319K 2219K	21319K 22219K	1.40
H320	100	90	71	130	1320K 2220K	21320K 22220K	1.60
H322	110	100	77	145	1322K 2222K	21322K 22222K	2.30

FAQ:

Q1: What are the applications for the H322 adapter?
A: The H322 adapter is used to connect and mount bearings such as 21322K, 22222K, 1322K, and 2222K, providing a secure and reliable fit in various mechanical applications.

Q2: What material is the adapter made of?
A: The adapter is made of high-quality, durable bearing steel to ensure strength and longevity in demanding environments.

Q3: Is the adapter sleeve easy to install?
A: Yes, the adapter sleeve is designed for straightforward installation, allowing for quick mounting and dismounting when needed.

Questions buyers ask when H322 and 100MM is still under review

When is H322 and 100MM worth comparing against nearby other ball & roller bearings options?

Comparison helps when dimensional fit is only part of the decision and load direction, sealing, clearance, speed, temperature, or repeat-order stability still need to be confirmed. Reviewing one or two nearby options early usually reduces sourcing mistakes later.

What details usually matter before approving H322 and 100MM for repeat supply?

Buyers normally confirm the part reference, main dimensions, application, speed range, operating environment, sealing needs, and any packaging or marking requirements. That gives the supplier a cleaner basis for confirming availability and suitable alternatives.

Which next step usually helps after H322 and 100MM is shortlisted?

A quick review of Other Ball & Roller Bearings, one more commercial destination, and one practical guide usually saves time. That combination helps separate simple replacement orders from jobs that still need fit or application review.

Why keep a supporting guide linked beside H322 and 100MM?

Because it makes later decisions faster. When sizing notes, application cues, and nearby options stay close to the product, engineering, purchasing, and maintenance teams can revisit the same logic without starting the review from zero.

H322 Adapter for H322 Adapter H 322 Withdrawal Sleeve 100mm Bore specification checks

Category: Other Ball & Roller Bearings Tags: Bearing Accessories, Adapter Sleeve

Description
Shipping & Payment Terms

Description

Bearing No.	Size				Supporting Bearing		Mass(kg)
Bearing No.	d	d1	B1	d2	Supporting Bearing		Mass(kg)
H302	15	12	22	25	1302K 2202K
H303	17	14	24	28	1303K 2203K
H304	20	17	28	32	1304K 2204K	21304K	0.04
H305	25	20	29	38	1305K 2205K	21305K	0.071
H306	30	25	31	45	1306K 2206K	21306K	0.095
H307	35	30	35	52	1307K 2207K	21307K	0.14
H308	40	35	36	58	1308K 2208K	21308K 22208K	0.17
H309	45	40	39	65	1309K 2209K	21309K 22209K	0.23
H310	50	45	42	70	1310K 2210K	21310K 22210K	0.27
H311	55	50	45	75	1311K 2211K	21311K 22211K	0.32
H312	60	55	47	80	1312K 2212K	21312K 22212K	0.36
H313	65	60	50	85	1313K 2213K	21313K 22213K	0.42
H314	70	60	52	92	1314K 2214K	21314K 22214K	0.67
H315	75	65	55	98	1315K 2215K	21315K 22215K	0.78
H316	80	70	59	105	1316K 2216K	21316K 22216K	0.95
H317	85	75	63	110	1317K 2217K	21317K 22217K	1.10
H318	90	80	65	120	1318K 2218K	21318K 22218K	1.30
H319	95	85	68	125	1319K 2219K	21319K 22219K	1.40
H320	100	90	71	130	1320K 2220K	21320K 22220K	1.60
H322	110	100	77	145	1322K 2222K	21322K 22222K	2.30

Shipping & Payment Terms

Shipping Method:

1. Sea shipping for mass cargos (GW > 500KGS)

2. Air shipping (GW between 100KGS – 500 KGS)

3. Express, such as DHL, TNT, Fedex, UPS for small cargos ( GW < 100KGS)

4. If you have shipping agent in China, we can send goods to your shipping agent's warehouse

shipping

Payment Terms:

We accept T/T, W/U, PAYPAL, L/C etc

Payment Terms
