Bore (d): 88.90mm
Outer Diameter (D): 152.400mm
Cone Width (B): 36.322mm
Bearing Width (T): 39.688mm
Mass: 2.75kg/ 6.063lb
Cone: 593
Cup: 592A
Steel: steel
Material: chrome steel, Gcr15

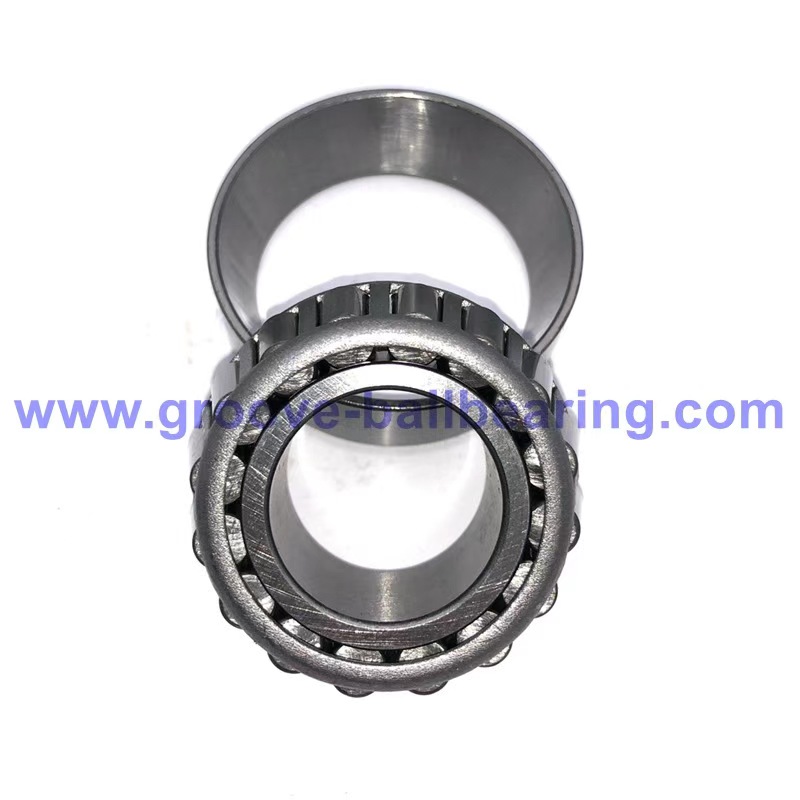

593/592A Bearing Bore (d): 88.90mm
Outer Diameter (D): 152.400mm
Cone Width (B): 36.322mm
Bearing Width (T): 39.688mm
Mass: 2.75kg/ 6.063lb
Cone: 593
Cup: 592A
Steel: steel
Material: chrome steel, Gcr15
Precision: standard precision ABEC1
Lubrication: standard grease or oil
Category: inch taper roller bearing
Operating Temperature: –30 °C to +120 °C
Equivalents: 593 / 592A, 593-592A, 593 – 592A, 593-99401, 593-90013, 593-99301, 593-99401
Suffix A: (Cup/Outer Race) outer diameter, radius, or width differ from the base part number
| Bearing Model | Dimensions (d*D*T)/mm | Mass(kg) |
| 498/493 | 84.138×136.525×30.162 | 1.560 |
| 664/652 | 84.138×152.400×41.275 | 3.030 |
| 9386H/9321 | 84.138×171.450×49.212 | 4.700 |
| 9386H/9320 | 84.138×177.800×52.388 | 5.400 |
| 27695/27620 | 84.975×125.412×25.400 | 0.980 |
| XAA32017X/Y32017X | 85.000×130.000×29.000 | 1.310 |
| JM716648/JM716610 | 85.000×130.000×30.000 | 1.320 |
| JM716649/JM716610 | 85.000×130.000×30.000 | 1.360 |
| JHM516849/JHM516810 | 85.000×140.000×39.000 | 2.270 |
| 665X/653 | 85.000×146.050×41.275 | 2.630 |
| 665X/653X | 85.000×150.000×41.275 | 2.860 |
| JH217249/JH217210 | 85.000×150.000×46.000 | 3.340 |
| 90334/90744 | 85.000×188.912×53.297 | 6.570 |
| 98335/38788 | 85.000×200.000×52.761 | 7.700 |
| 749/743 | 85.026×150.000×44.455 | 3.200 |
| 749/742 | 85.026×150.089×44.450 | 3.250 |
| 749-S/742 | 85.026×150.089×44.450 | 3.220 |
| 497/492A | 85.725×133.350×30.162 | 1.400 |
| 497/493 | 85.725×136.525×30.162 | 1.510 |
| 497A/493 | 85.725×136.525×30.162 | 1.480 |
| HM617048/HM617010 | 85.725×142.138×42.862 | 2.640 |
| HM617049/HM617010 | 85.725×142.138×42.862 | 2.620 |
| 665/653 | 85.725×146.050×41.275 | 2.600 |
1. Send your bearing inquiry with model numbers, required quantities, and any preferred brands or special specs.
2. We will check availability, provide a detailed price quote, and offer shipping options and costs based on total gross weight (GW) and destination.
3. If you accept the quote, we will issue a proforma invoice with payment instructions and quote validity.
4. After we receive payment, we will pick, inspect, and prepare your bearings, then arrange shipment and share the tracking details.
1. Sea shipping for mass cargos (GW > 500KGS)
2. Air shipping (GW between 100KGS – 500 KGS)
3. Express, such as DHL, TNT, Fedex, UPS for small cargos ( GW < 100KGS)
4. If you have shipping agent in China, we can send goods to your shipping agent's warehouse
We accept T/T, W/U, PAYPAL, L/C etc
