d: 38.1000mm/ 1.5 in
D: 88.501 mm/ 3.4843 in
T: 26.988 mm / 1.0625 in
B: 29.083 mm / 1.145 in
Mass: 0.850kg/set
Cone Number: 418
Cup Number:N414

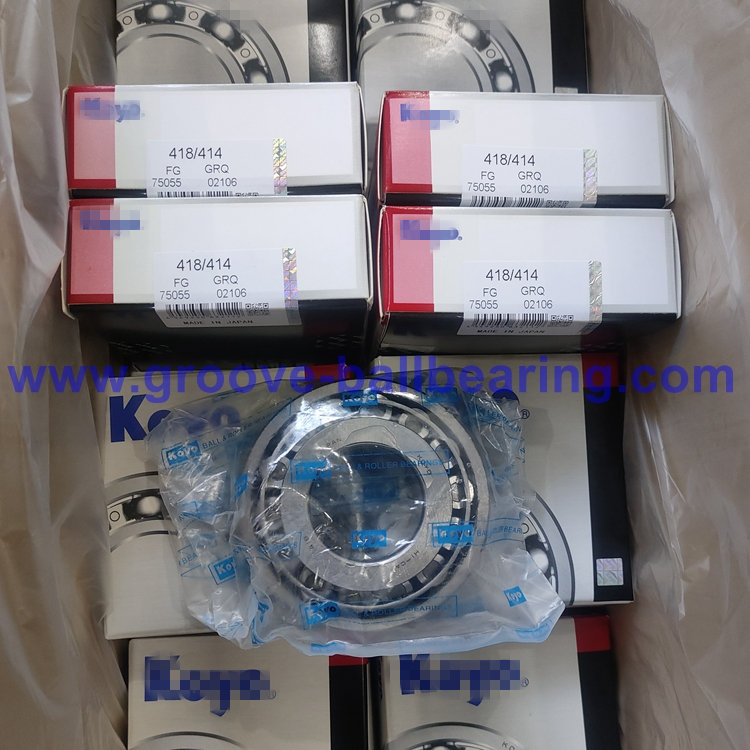

418/414 bearing is single row taper roller bearing,
For this bearing,
d: 38.1000mm/ 1.5 in
D: 88.501 mm/ 3.4843 in
T: 26.988 mm / 1.0625 in
B: 29.083 mm / 1.145 in
Cr: 123 kN
C0r: 112 kN
Mass: 0.850kg/set
Cone Number: 418
Cup Number:N414
Material: Bearing steel Gcr15
Seal Type: Open without seals
Precision: ABEC1, ABEC3, ABEC5
Also known as: 4T-418/414, 418/414, 414/418, 414-418, 418-414, 418-20024 / 414-20024
High Load Capacity: Handles heavy radial and axial loads for reliable performance.
One-Way Axial Support: Supports axial loads in one direction for precise load control.
Low Friction, Long Life: Made with quality materials to reduce friction and last longer.
Easy to Install and Maintain: The 418-414 bearing has separable, interchangeable parts for simple installation and maintenance.
| Model Number | Specifications(dxDxB) | Mass(kg) |
| LM11949/LM11910 | 19.050×45.237×15.494 | 0.130 |
| 05075/05185 | 19.050×47.000×14.381 | 0.120 |
| 05075X/05185-S | 19.050×47.000×14.381 | 0.120 |
| 09067/09195 | 19.050×49.225×18.034 | 0.170 |
| 09074/09195 | 19.050×49.225×19.845 | 0.180 |
| 09078/09195 | 19.050×49.225×19.845 | 0.180 |
| 09067/09194 | 19.050×49.225×21.209 | 0.190 |
| 09067/09196 | 19.050×49.225×21.209 | 0.190 |
| 09074/09194 | 19.050×49.225×23.020 | 0.200 |
| 09074/09196 | 19.050×49.225×23.020 | 0.200 |
| 09078/09194 | 19.050×49.225×23.020 | 0.200 |
| 09078/09196 | 19.050×49.225×23.020 | 0.200 |
| 09074/09201 | 19.050×50.800×20.638 | 0.210 |
| LM11949/LM11919 | 19.050×52.800×18.034 | 0.200 |
| 09067/09194-S | 19.050×52.883×18.430 | 0.210 |
| 09074/09194-S | 19.050×52.883×20.214 | 0.210 |
| 21075/21212 | 19.050×53.975×22.225 | 0.250 |
| 21075/21213 | 19.050×53.975×22.225 | 0.250 |
| 21075A/21212 | 19.050×53.975×22.225 | 0.250 |
| 1775/1729 | 19.050×56.896×19.368 | 0.270 |
| 05079/05185A | 19.987×46.982×14.381 | 0.120 |
| 05079/05186 | 19.987×46.990×15.250 | 0.120 |
| 05079/05185 | 19.987×47.000×14.381 | 0.120 |
| 05079/05185-S | 19.987×47.000×14.381 | 0.120 |
| 07079X/07204 | 19.987×51.994×15.011 | 0.160 |
| XAA32004X/YAA32004X | 20.000×42.000×15.000 | 0.100 |
| 07079/07204 | 20.000×51.994×15.011 | 0.160 |
| 1778/1729 | 20.627×56.896×19.368 | 0.260 |
| 12580/12520 | 20.638×49.225×19.845 | 0.180 |
| M12649/M12610 | 21.430×50.005×17.526 | 0.170 |
| LM12749/LM12710 | 21.987×45.237×15.494 | 0.120 |
| LM12749/LM12711 | 21.987×45.974×15.494 | 0.120 |
| LL52549/LL52510 | 22.225×42.070×11.176 | 0.070 |
| 07087/07196 | 22.225×50.005×13.495 | 0.130 |
| 07087X/07196 | 22.225×50.005×13.495 | 0.130 |
| M12648A/M12610 | 22.225×50.005×17.526 | 0.160 |
| M12648/M12610 | 22.225×50.005×17.526 | 0.160 |
| 07087/07204 | 22.225×51.994×15.011 | 0.150 |
| 07087X/07205 | 22.225×52.000×15.011 | 0.150 |
Comparison helps when dimensional fit is only part of the decision and load direction, sealing, clearance, speed, temperature, or repeat-order stability still need to be confirmed. Reviewing one or two nearby options early usually reduces sourcing mistakes later.
Buyers normally confirm the part reference, main dimensions, application, speed range, operating environment, sealing needs, and any packaging or marking requirements. That gives the supplier a cleaner basis for confirming availability and suitable alternatives.
A quick review of Taper Roller Bearings, one more commercial destination, and one practical guide usually saves time. That combination helps separate simple replacement orders from jobs that still need fit or application review.
Because it makes later decisions faster. When sizing notes, application cues, and nearby options stay close to the product, engineering, purchasing, and maintenance teams can revisit the same logic without starting the review from zero.
1. Sea shipping for mass cargos (GW > 500KGS)
2. Air shipping (GW between 100KGS – 500 KGS)
3. Express, such as DHL, TNT, Fedex, UPS for small cargos ( GW < 100KGS)
4. If you have shipping agent in China, we can send goods to your shipping agent's warehouse
We accept T/T, W/U, PAYPAL, L/C etc
Buyer FAQ
Confirm the bearing number, bore size, outside diameter, width, seal or shield type, cage material, clearance, precision level, quantity, and application. These details help prevent a size match from becoming a performance mismatch.
Yes. Replacement and repeat orders are easier when the original marking, measured dimensions, photos, application, and quantity are available. If the marking is unclear, the team can start from the size and working condition.
This item is handled within the Taper Roller Bearings family. Comparing the family page can help buyers review similar sizes, seal options, load direction, and related bearing choices before requesting a quote.
Price and lead time can change with quantity, stock availability, precision grade, clearance, material, cage, seal or shield type, lubrication, packaging, and whether the order needs standard matching or custom production.
Inspection can include material review, dimensional measurement, noise and vibration checks, surface and crack checks, visual review, and packaging inspection according to the confirmed order requirements.
