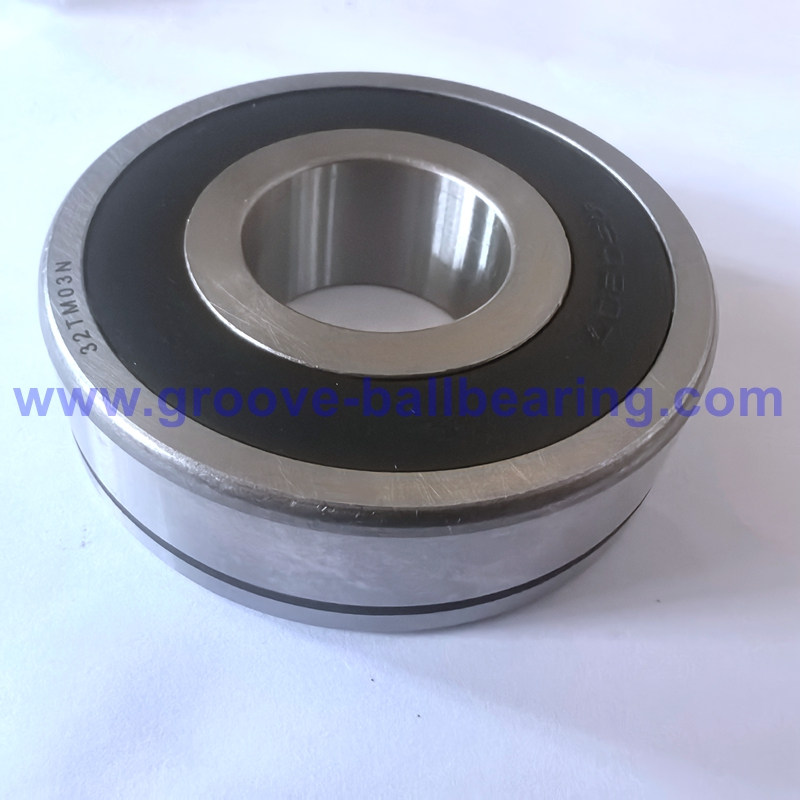

32TM03N Bearing 32 TM03 NXC3 Auto Bearing 32X80X23
d: 32mm
D: 80mm
B: 23mm
Mass: 0.513kg
Sheilds: rubber seal on 2 sides
Cage Type: pressed steel
Radial Internal Play: standard CN/C0
External Modification: the bearing has a grooved outer ring
32TM03N Bearing Specification:
32TM03N bearing uses a deep groove ball design.
As for the bearing designation,
d: 32mm
D: 80mm
B: 23mm
Mass: 0.513kg
Sheilds: rubber seal on 2 sides
Cage Type: pressed steel
Radial Internal Play: standard CN/C0
Lubrication: standard grease or oil
Working Temperature: -30°C to 120 °C
External Modification: the bearing has a grooved outer ring
Replacements: 32 TM03, 32 TM03 N, 32TM03NX, 32TM03NX-C3-UR
Bearing Features:
1. High‑grade bearing steel (through‑hardened 52100 steel) for fatigue resistance.
2. Type: 32TM03N is deep groove ball bearing (supports primarily radial loads with capability for moderate axial loads in both directions).
3. Compact geometry: Suited for confined transmission / automotive applications.
4. Outer ring groove: Facilitates snap ring retention.
5. Low starting and running torque, supporting energy efficiency (important in automotive/transmission applications).
6. Rubber seals protect against particulate ingress and moisture, extending life in contaminated environments.
Questions that usually come up before ordering 32TM03N and TM03
When is 32TM03N and TM03 worth comparing against nearby deep groove ball bearings options?
Comparison helps when dimensional fit is only part of the decision and load direction, sealing, clearance, speed, temperature, or repeat-order stability still need to be confirmed. Reviewing one or two nearby options early usually reduces sourcing mistakes later.
What details usually matter before approving 32TM03N and TM03 for repeat supply?
Buyers normally confirm the part reference, main dimensions, application, speed range, operating environment, sealing needs, and any packaging or marking requirements. That gives the supplier a cleaner basis for confirming availability and suitable alternatives.
Which next step usually helps after 32TM03N and TM03 is shortlisted?
A quick review of Deep Groove Ball Bearings, one more commercial destination, and one practical guide usually saves time. That combination helps separate simple replacement orders from jobs that still need fit or application review.
Why keep a supporting guide linked beside 32TM03N and TM03?
Because it makes later decisions faster. When sizing notes, application cues, and nearby options stay close to the product, engineering, purchasing, and maintenance teams can revisit the same logic without starting the review from zero.
Shipping Method:
1. Sea shipping for mass cargos (GW > 500KGS)
2. Air shipping (GW between 100KGS – 500 KGS)
3. Express, such as DHL, TNT, Fedex, UPS for small cargos ( GW < 100KGS)
4. If you have shipping agent in China, we can send goods to your shipping agent's warehouse
Payment Terms:
We accept T/T, W/U, PAYPAL, L/C etc
Buyer FAQ
Questions buyers ask before choosing the next bearing option
What should I confirm before ordering 32TM03N Bearing 32 TM03 NXC3 Auto Bearing 32X80X23?
Confirm the bearing number, bore size, outside diameter, width, seal or shield type, cage material, clearance, precision level, quantity, and application. These details help prevent a size match from becoming a performance mismatch.
Can this bearing be matched for replacement or repeat supply?
Yes. Replacement and repeat orders are easier when the original marking, measured dimensions, photos, application, and quantity are available. If the marking is unclear, the team can start from the size and working condition.
Which product family does this bearing belong to?
This item is handled within the Deep Groove Ball Bearings family. Comparing the family page can help buyers review similar sizes, seal options, load direction, and related bearing choices before requesting a quote.
What affects price and lead time for this bearing?
Price and lead time can change with quantity, stock availability, precision grade, clearance, material, cage, seal or shield type, lubrication, packaging, and whether the order needs standard matching or custom production.
How is this bearing checked before delivery?
Inspection can include material review, dimensional measurement, noise and vibration checks, surface and crack checks, visual review, and packaging inspection according to the confirmed order requirements.
Need help checking fit, price, or lead time? Request a bearing quote
