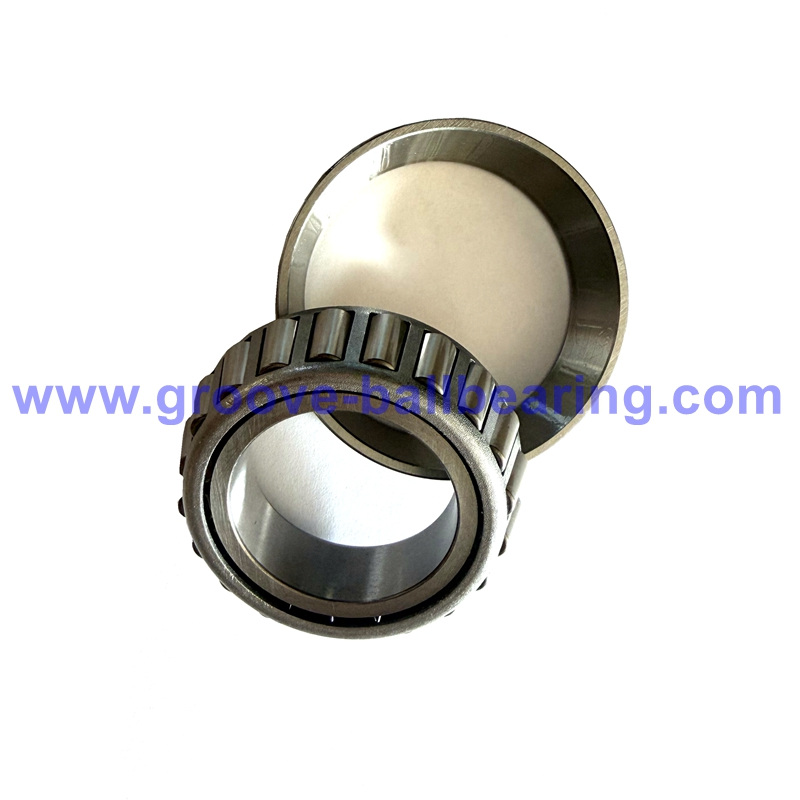

29685/29620 Bearing SET267 Bearing Taper Roller 29685/20
Bore: 73.025mm
External Diameter: 112.712mm
Inner Ring Width: 25.4mm
Total Width: 25.4mm
Mass: 0.875kg/ 1.929lb
Cone Number: 29685
Cup Number: 29620
Cage: steel
Rollers and Rings Material: bearing steel
29685/29620 Bearing Specification:
29685/29620 Bearing Bore: 73.025mm
External Diameter: 112.712mm
Inner Ring Width: 25.4mm
Total Width: 25.4mm
Mass: 0.875kg/ 1.929lb
Cone Number: 29685
Cup Number: 29620
Cage: steel
Rollers and Rings Material: bearing steel
Limit Speed (grease): 2850RPM
Operating Temperature: -30-120°C
Bearing Structure: single row taper roller bearing
Equivalents: 29685 / 29620, 29685/620, 29685/20, 29685-29620, 29685 – 29620, SET267-900SA, 4T-29685/20, 4T-29685/29620, SET267
Durable Taper Roller Bearings We Offer:
| Model Number | Bearing Dimensions (mm) | Mass(kg) |
| 26881/26823 | 39.688×76.2×25.4 | 0.500 |
| 26880/26822 | 39.688×79.375×23.812 | 0.554 |
| 26881/26822 | 39.688×79.375×23.812 | 0.540 |
| 26882/26823 | 41.275×76.2×25.4 | 0.488 |
| 26882/26822 | 41.275×79.375×23.812 | 0.520 |
| 26885/26822 | 41.275×79.375×23.812 | 0.530 |
| 26882/26522A | 41.275×79.375×23.812 | 0.530 |
| 26882/26824 | 41.275×80×23.812 | 0.542 |
| 26882/26820 | 41.275×80.167×25.4 | 0.550 |
| 26886/26882 | 42.875×39.375×23.812 | 0.562 |
| 26886/26822 | 42.875×39.375×23.812 | 0.513 |
| 26884/26823 | 42.875×76.2×45.4 | 0.460 |
| 26884/26882 | 42.875×79.375×23.812 | 0.484 |
| 26884/26824 | 42.875×80×25.4 | 0.510 |
| 26884/26820 | 72.875×80.167×25.4 | 0.470 |
| 26685/29620 | 73.025×112.712×25 | 0.484 |
| 2780/27620 | 73.025×125.412×25.4 | 0.490 |
| 27084/27020 | 76.2×125.412×25.4 | 1.100 |
| 27687/27620 | 82.55×125.412×25.4 | 1.100 |
| 27678/27620 | 82.55×125.412×25.4 | 1.100 |
| 28158/28300 | 40×76.2×20.638 | 0.383 |
| 28678/28622B | 50×101.5×24.6 | 0.865 |
| 28584/28521 | 52.388×92.07×25.4 | 0.700 |
| 28580/28521 | 52.388×92.075×24.608 | 0.700 |
Key Features:
1. Tapered Roller Design: Features a tapered roller design, allowing for better load distribution and improved performance under heavy loads.
2. High Load Capacity: Engineered to support high axial and radial loads, making it suitable for demanding automotive applications.
3. Durable Construction: Made from high-quality materials for enhanced durability and resistance to wear, ensuring a long service life.
4. Precision Engineering: Manufactured to strict tolerances for precise fit and smooth operation, reducing friction and enhancing efficiency.
5. Low Maintenance: Requires minimal maintenance, making it a practical choice for long-term use in various machinery.
Questions that help when 29685/29620 and SET267 is on the shortlist
When is 29685/29620 and SET267 worth comparing against nearby taper roller bearings options?
Comparison helps when dimensional fit is only part of the decision and load direction, sealing, clearance, speed, temperature, or repeat-order stability still need to be confirmed. Reviewing one or two nearby options early usually reduces sourcing mistakes later.
What details usually matter before approving 29685/29620 and SET267 for repeat supply?
Buyers normally confirm the part reference, main dimensions, application, speed range, operating environment, sealing needs, and any packaging or marking requirements. That gives the supplier a cleaner basis for confirming availability and suitable alternatives.
Which next step usually helps after 29685/29620 and SET267 is shortlisted?
A quick review of Taper Roller Bearings, one more commercial destination, and one practical guide usually saves time. That combination helps separate simple replacement orders from jobs that still need fit or application review.
Why keep a supporting guide linked beside 29685/29620 and SET267?
Because it makes later decisions faster. When sizing notes, application cues, and nearby options stay close to the product, engineering, purchasing, and maintenance teams can revisit the same logic without starting the review from zero.
Shipping Method:
1. Sea shipping for mass cargos (GW > 500KGS)
2. Air shipping (GW between 100KGS – 500 KGS)
3. Express, such as DHL, TNT, Fedex, UPS for small cargos ( GW < 100KGS)
4. If you have shipping agent in China, we can send goods to your shipping agent's warehouse
Payment Terms:
We accept T/T, W/U, PAYPAL, L/C etc
Buyer FAQ
Questions buyers ask before choosing the next bearing option
What should I confirm before ordering 29685/29620 Bearing SET267 Bearing Taper Roller 29685/20?
Confirm the bearing number, bore size, outside diameter, width, seal or shield type, cage material, clearance, precision level, quantity, and application. These details help prevent a size match from becoming a performance mismatch.
Can this bearing be matched for replacement or repeat supply?
Yes. Replacement and repeat orders are easier when the original marking, measured dimensions, photos, application, and quantity are available. If the marking is unclear, the team can start from the size and working condition.
Which product family does this bearing belong to?
This item is handled within the Taper Roller Bearings family. Comparing the family page can help buyers review similar sizes, seal options, load direction, and related bearing choices before requesting a quote.
What affects price and lead time for this bearing?
Price and lead time can change with quantity, stock availability, precision grade, clearance, material, cage, seal or shield type, lubrication, packaging, and whether the order needs standard matching or custom production.
How is this bearing checked before delivery?
Inspection can include material review, dimensional measurement, noise and vibration checks, surface and crack checks, visual review, and packaging inspection according to the confirmed order requirements.
Need help checking fit, price, or lead time? Request a bearing quote
