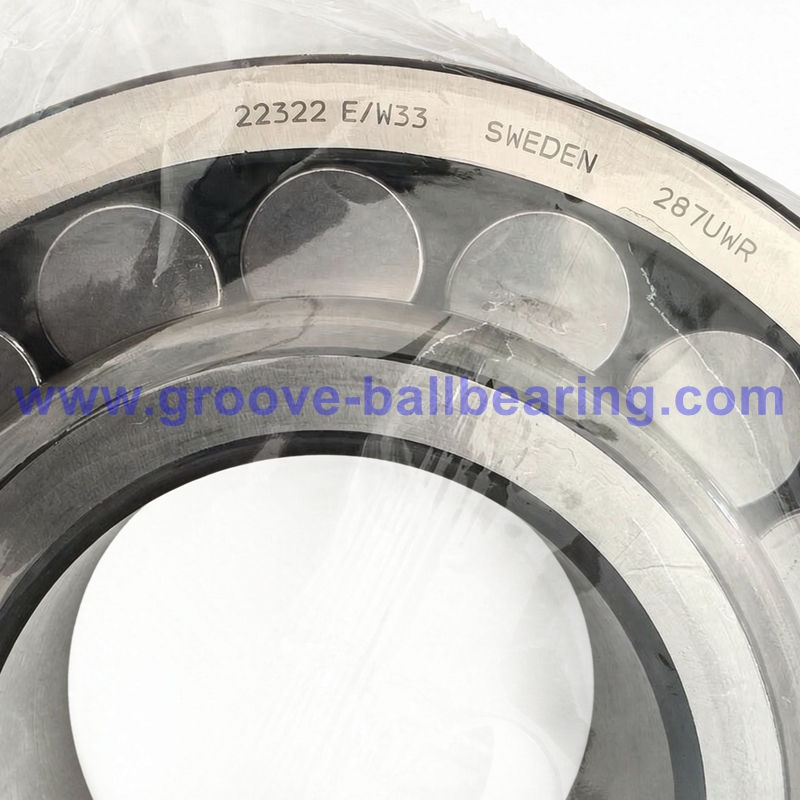

22322E/W33 Bearing – Spherical Roller Bearing

22322E/W33 Bearing Specification:

Bore (d): 110mm
Outer Diameter (D): 240mm
Width (B): 80mm
Weight: 17.70kg/ 39.02lb
Bore Type: cylindrical
Cage: sheet metal
Bearing Material: SAE 52100 steel
Seal Type: open
Relubrication Feature: with
Radial internal clearance: normal C0
Lubrication: standard grease or oil
Suffix “E”: 2 window-type steel cages, flangeless inner ring, and guide centered on the inner ring
Suffix “W33”: lubrication groove and holes in the outer ring

Key Benefits:

1. Spherical roller bearing design:
Designed with two rows of symmetrical rollers for stable and reliable performance.

2. Open bearing structure
Features an open design, suitable for applications requiring regular lubrication and maintenance.

3. Self-aligning capability
Helps accommodate shaft deflections and misalignment during operation.

4. Concave spherical outer raceway
The outer ring has a concave spherical raceway, allowing the bearing to compensate for alignment errors.
