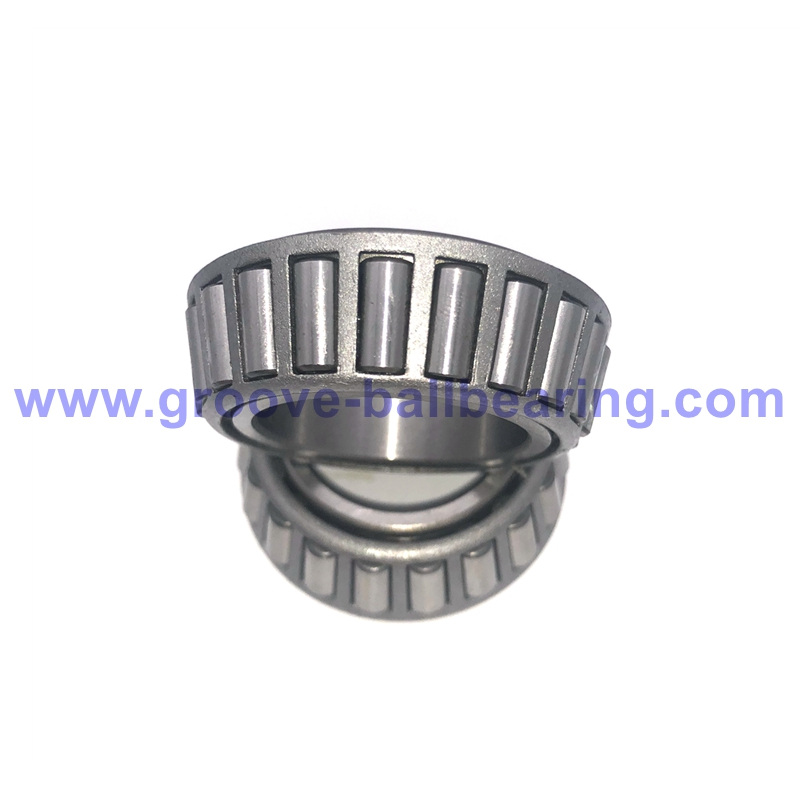

L44649-L44610 Bearing L44649/10 Roller Bearing Set4

L44649-L44610 Bearing Specification:

L44649-L44610 bearing comes with cone and cup.
As for this bearing designation,
Inner Diameter: 26.987mm/ 1.0625 in
Outer Diameter: 50.292mm/ 1.980 in
Total Width: 14.224mm/ 0.580 in
Mass: 0.12kg/0.265lb
Cone: L44649
Cup: L44610
Warranty: 1 year
Material: bearing steel
Cage Material: stamped steel
Operating temperature: -30 °C to 120 °C
Precision: standard precision ABEC1, P0
Also Known As: 4T-L44649/L44610, L44649/L44610, KL44649-L44610, L44649/610, SET4, SET 4

L44649/610 Bearing Features:

1. Set 4 bearing is single-row tapered design with conical raceways and tapered rollers for handling combined (radial + axial) loads.
2. Bearing SET4 supports high radial loads and high axial load in one direction; axial capacity increases with contact angle.
3. Two-piece separable construction (cone L44649: inner ring + rollers + cage; cup L44610: outer ring) enables easy mounting, disassembly, inspection, and replacement.
4. Open design facilitates lubrication and inspection.
5. Flexible pairing possibilities: X (back-to-back), O (face-to-face), or tandem arrangements to tailor stiffness, load sharing, and axial load direction.

SET Number Component Reference Table:

How to Place an Order:

1. Send us an inquiry listing the bearing model numbers and the quantities you need.
2. We will respond with a price quotation for the bearings.
3. If you accept the bearing prices and also need a freight quote, provide your full delivery address and we will check the shipping cost.
4. After you confirm all pricing, we will issue an invoice for payment.
5. Once payment is received, we will prepare your order and arrange shipment.
