d: 55mm
D: 90mm
T: 23mm
Mass: 0.556kg
Cone: JLM506849
Cup: JLM506810
C – Dynamic load: 86kN
C0 – Static load: 109kN

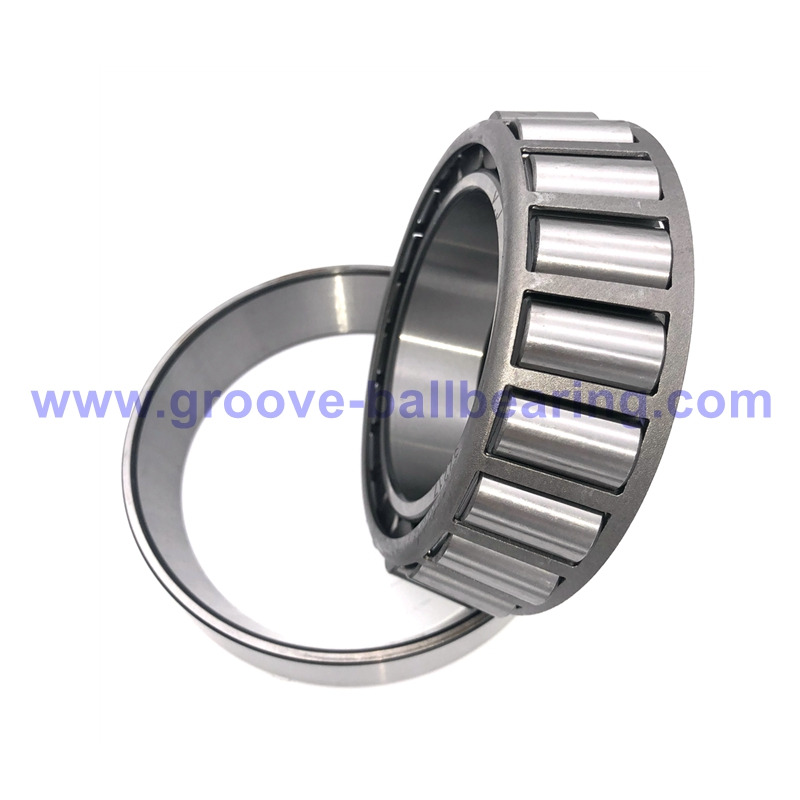

Bearing JLM506849-JLM506810 is a tapered roller bearing set commonly used in automotive and industrial applications.
For this bearing,
d: 55mm
D: 90mm
T: 23mm
Mass: 0.556kg
Cone: JLM506849
Cup: JLM506810
C – Dynamic load: 86kN
C0 – Static load: 109kN
Operating temperature: -40 °C to 120 °C
Equivalents: JLM506849 – JLM506810, JLM506849/JLM506810, JLM506849 / JLM506810, JLM506849/10, SET118, SET 118, set118, 4T-JLM506849/JLM506810
Tapered Roller Design:
The SET118 bearing features a precision-engineered tapered roller design, which allows it to efficiently handle both radial and axial (thrust) loads. This makes it ideal for applications where combined loading is present, ensuring stability and reliability in operation.
High Load Capacity:
Built for strength, this bearing is suitable for heavy-duty applications commonly found in automotive and industrial machinery. Its robust construction enables it to support substantial loads, making it a dependable choice for demanding environments.
Precision Engineering:
Manufactured with high-quality materials and advanced production techniques, the SET118 bearing ensures smooth and quiet operation. Its precision engineering minimizes friction and wear, contributing to enhanced durability and a longer service life.
Reliable Performance:
The JLM506849 – JLM506810 bearing set is specifically designed to perform consistently under challenging and demanding conditions. Its superior design and construction provide reliable performance, reducing the risk of unexpected downtime and maintenance needs.
| Model Number | Dimensions (mm) | Mass (KG) | ||
| d | D | T | ||
| JLM506849NJLM506810 | 55.000 | 90.000 | 23.000 | 0.540 |
| 661/652 | 79.375 | 152.400 | 41.275 | 3.230 |
| 756A/752 | 79.375 | 161.925 | 47.625 | 4.490 |
| 838/832 | 80.963 | 168.275 | 53.975 | 5.520 |
| HM88649/HM88610 | 34.925 | 72.233 | 25.400 | 0.489 |
| M88043/M88010 | 30.163 | 68.263 | 22.225 | 0.402 |
| LM29749/LM29711 | 38.100 | 65.088 | 19.812 | 0.250 |
| M84548/M84510 | 25.400 | 57.150 | 19.431 | 0.244 |
| M86649/M86610 | 30.162 | 64.292 | 21.433 | 0.336 |
| M802048/M802011 | 41.275 | 82.550 | 26.543 | 0.641 |
| L45449/L45410 | 29.000 | 50.292 | 14.224 | 0.113 |
| M201047/M201011 | 39.688 | 73.025 | 25.654 | 0.430 |
| U399/K426898 | 36.690 | 73.030 | 22.230 | 0.360 |
| JL69349/JL69310 | 38.000 | 63.000 | 17.000 | 0.200 |
| LM12749/LM12710 | 21.987 | 45.237 | 15.494 | 0.120 |
| L68149/L68110 | 34.987 | 59.131 | 15.875 | 0.170 |
| L44643/L44610 | 25.400 | 50.292 | 14.224 | 0.130 |
| 07100/07196 | 25.000 | 50.000 | 13.500 | 0.119 |
| LM12749/LM12711 | 21.987 | 45.974 | 15.494 | 0.120 |
| LM102949/LM102910 | 45.242 | 73.431 | 19.558 | 0.320 |
| LM102949/LM102911 | 45.242 | 73.431 | 21.430 | 0.330 |
| L68149/L68111 | 34.989 | 59.974 | 15.875 | 0.170 |
| 1988/1922 | 28.575 | 57.150 | 19.845 | 0.220 |
| LM67048/LM67010 | 31.750 | 59.131 | 15.875 | 0.183 |
| LM603049/LM603011 | 45.242 | 77.788 | 19.842 | 0.370 |
| LM104949/LM104911 | 50.800 | 82.550 | 21.590 | 0.420 |
Comparison helps when dimensional fit is only part of the decision and load direction, sealing, clearance, speed, temperature, or repeat-order stability still need to be confirmed. Reviewing one or two nearby options early usually reduces sourcing mistakes later.
Buyers normally confirm the part reference, main dimensions, application, speed range, operating environment, sealing needs, and any packaging or marking requirements. That gives the supplier a cleaner basis for confirming availability and suitable alternatives.
A quick review of Taper Roller Bearings, one more commercial destination, and one practical guide usually saves time. That combination helps separate simple replacement orders from jobs that still need fit or application review.
Because it makes later decisions faster. When sizing notes, application cues, and nearby options stay close to the product, engineering, purchasing, and maintenance teams can revisit the same logic without starting the review from zero.
1. Sea shipping for mass cargos (GW > 500KGS)
2. Air shipping (GW between 100KGS – 500 KGS)
3. Express, such as DHL, TNT, Fedex, UPS for small cargos ( GW < 100KGS)
4. If you have shipping agent in China, we can send goods to your shipping agent's warehouse
We accept T/T, W/U, PAYPAL, L/C etc
Buyer FAQ
Confirm the bearing number, bore size, outside diameter, width, seal or shield type, cage material, clearance, precision level, quantity, and application. These details help prevent a size match from becoming a performance mismatch.
Yes. Replacement and repeat orders are easier when the original marking, measured dimensions, photos, application, and quantity are available. If the marking is unclear, the team can start from the size and working condition.
This item is handled within the Taper Roller Bearings family. Comparing the family page can help buyers review similar sizes, seal options, load direction, and related bearing choices before requesting a quote.
Price and lead time can change with quantity, stock availability, precision grade, clearance, material, cage, seal or shield type, lubrication, packaging, and whether the order needs standard matching or custom production.
Inspection can include material review, dimensional measurement, noise and vibration checks, surface and crack checks, visual review, and packaging inspection according to the confirmed order requirements.
