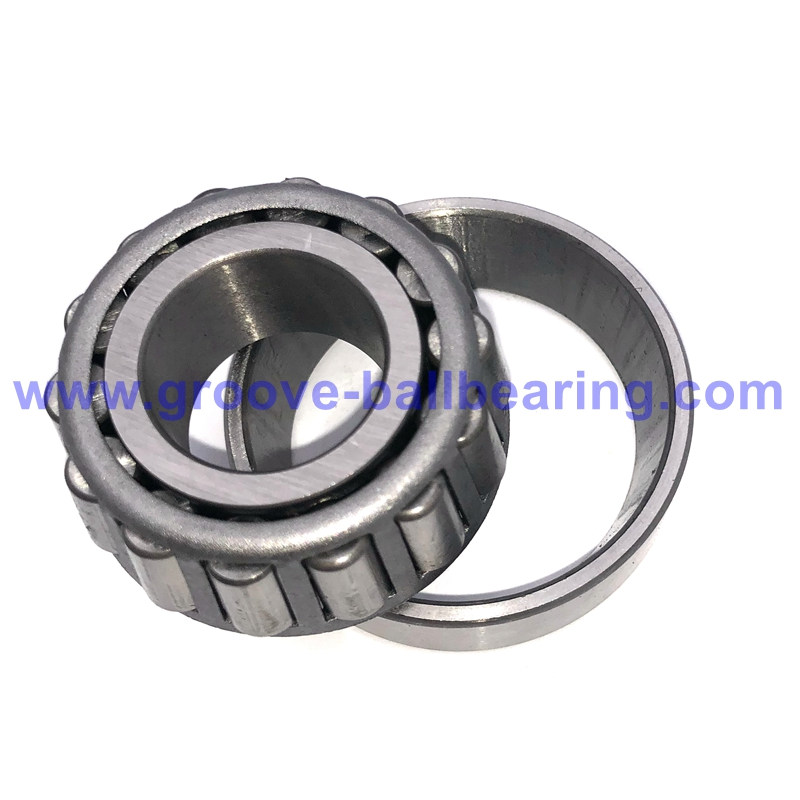

687/672 Bearing 687-672 Single Row Roller Bearing 4 Inch Bore
Bore Diameter (d): 101.6 mm/ 4 inch
Outer Diameter (D): 168.275 mm/ 6.625 inch
Inner Ring Width (B): 41.275 mm/ 1.625 inch
Total Width (T): 41.275 mm/ 1.625 inch
Mass: 3.40kg/ 7.496lb
Material: bearing steel
Number of Row: single
Category: taper roller bearing
687/672 Bearing Specification:
687/672 bearing is a single row taper roller bearing. As for this bearing model,
Bore Diameter (d): 101.6 mm/ 4 inch
Outer Diameter (D): 168.275 mm/ 6.625 inch
Inner Ring Width (B): 41.275 mm/ 1.625 inch
Total Width (T): 41.275 mm/ 1.625 inch
Mass: 3.40kg/ 7.496lb
Material: bearing steel
Enclosure: open
Bore Type: cylindrical
Number of Row: single
Category: taper roller bearing
Relubricate Feature: without
Equivalents: 687 / 672, 672/687, 687-672, 687 – 672, 4T-687/672, 687/672/Q, 687-99401
Key Features:
Single-Row Tapered Design: 687/672 bearing features tapered rollers and conical raceways, enabling it to handle combined radial and axial loads in one direction.
High Load Capacity: Supports heavy radial and axial forces; greater contact angle increases axial load capability.
Easy Assembly & Disassembly: Composed of a cone unit (inner ring, cage, rollers) and a cup (outer ring) for straightforward mounting.
Open Construction: Requires pairing with another tapered roller bearing in X, O, or tandem arrangement for proper function.
FAQ:
Q1: What is a 687/672 bearing used for?
A1: The 687/672 bearing is mainly used in heavy-duty applications such as trucks, trailers, construction equipment, and industrial machinery where it supports high radial and axial loads.
Q2: How long does delivery take?
A2: We keep a large inventory of common tapered roller bearing models. For example, we currently have 321pcs of HM89443/HM89410 bearings, 365 pcs of 28985/28921 bearings and 376 pcs of 687/672 bearings available. If your order is within our stock quantity, we can arrange shipment within 2–3 days after receiving payment. For quantities beyond stock, the delivery time will be around 10–30 days.
Q3: What material is the bearing made from?
A3: It is manufactured from high-quality bearing steel (AISI 52100), ensuring strength, durability, and resistance to wear even in tough operating environments.
Q4: How do I maintain a taper roller bearing?
A4: Regularly lubricate with the correct grease or oil, keep the bearing clean from contaminants, and check for wear or noise during operation to extend service life.
Questions that help when 687/672 and 687-672 is on the shortlist
When is 687/672 and 687-672 worth comparing against nearby taper roller bearings options?
Comparison helps when dimensional fit is only part of the decision and load direction, sealing, clearance, speed, temperature, or repeat-order stability still need to be confirmed. Reviewing one or two nearby options early usually reduces sourcing mistakes later.
What details usually matter before approving 687/672 and 687-672 for repeat supply?
Buyers normally confirm the part reference, main dimensions, application, speed range, operating environment, sealing needs, and any packaging or marking requirements. That gives the supplier a cleaner basis for confirming availability and suitable alternatives.
Which next step usually helps after 687/672 and 687-672 is shortlisted?
A quick review of Taper Roller Bearings, one more commercial destination, and one practical guide usually saves time. That combination helps separate simple replacement orders from jobs that still need fit or application review.
Why keep a supporting guide linked beside 687/672 and 687-672?
Because it makes later decisions faster. When sizing notes, application cues, and nearby options stay close to the product, engineering, purchasing, and maintenance teams can revisit the same logic without starting the review from zero.
Shipping Method:
1. Sea shipping for mass cargos (GW > 500KGS)
2. Air shipping (GW between 100KGS – 500 KGS)
3. Express, such as DHL, TNT, Fedex, UPS for small cargos ( GW < 100KGS)
4. If you have shipping agent in China, we can send goods to your shipping agent's warehouse
Payment Terms:
We accept T/T, W/U, PAYPAL, L/C etc
Buyer FAQ
Questions buyers ask before choosing the next bearing option
What should I confirm before ordering 687/672 Bearing 687-672 Single Row Roller Bearing 4 Inch Bore?
Confirm the bearing number, bore size, outside diameter, width, seal or shield type, cage material, clearance, precision level, quantity, and application. These details help prevent a size match from becoming a performance mismatch.
Can this bearing be matched for replacement or repeat supply?
Yes. Replacement and repeat orders are easier when the original marking, measured dimensions, photos, application, and quantity are available. If the marking is unclear, the team can start from the size and working condition.
Which product family does this bearing belong to?
This item is handled within the Taper Roller Bearings family. Comparing the family page can help buyers review similar sizes, seal options, load direction, and related bearing choices before requesting a quote.
What affects price and lead time for this bearing?
Price and lead time can change with quantity, stock availability, precision grade, clearance, material, cage, seal or shield type, lubrication, packaging, and whether the order needs standard matching or custom production.
How is this bearing checked before delivery?
Inspection can include material review, dimensional measurement, noise and vibration checks, surface and crack checks, visual review, and packaging inspection according to the confirmed order requirements.
