Bore (d): 3.1250 in/ 79.375 mm
Outer Diameter (D): 6 in/ 152.400 mm
Cone Width (B): 1.4300 in/ 36.322 mm
Total Width (T): 1.5625 in/ 39.688 mm
Mass: 3.1kg/ 6.834lb
Cone Number: 595A
Cup Number: 592A
Suffix “A”: radius and bore differ from the basic part number; roller complement also differs

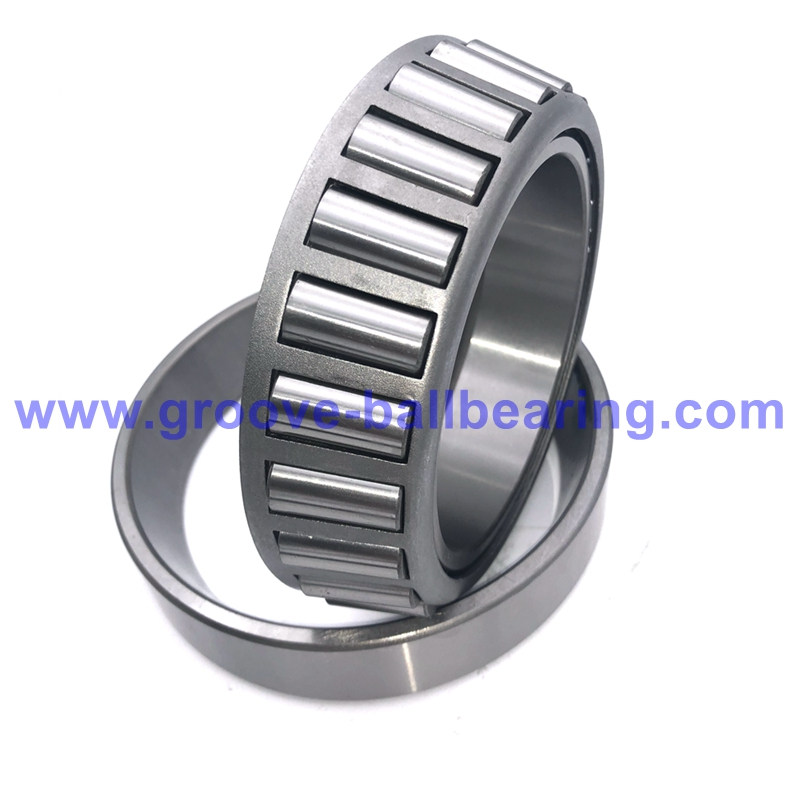

595A/592A bearing features a imperial taper roller bearing.
Regarding this bearing model,
Bore (d): 3.1250 in/ 79.375 mm
Outer Diameter (D): 6 in/ 152.400 mm
Cone Width (B): 1.4300 in/ 36.322 mm
Total Width (T): 1.5625 in/ 39.688 mm
Mass: 3.1kg/ 6.834lb
Cone Number: 595A
Cup Number: 592A
Cage: stamped steel
Bearing Material: bearing steel, 52100 steel
Lubrication: standard grease or oil
Bearing Working Temperature: –30 °C to +120 °C
Suffix “A”: radius and bore differ from the basic part number; roller complement also differs
1. Handles combined loads well: 595A-592A bearings are designed to support high radial loads plus axial (thrust) loads in one direction.
2. High load capacity & durability: Tapered roller geometry spreads the load efficiently, helping reduce stress and extend service life.
3. Good rigidity and stability: Provides solid shaft/wheel support, helping minimize deflection under load.
4. Separable design for easier installation: Cone and cup can be installed separately, which often simplifies mounting, inspection, and replacement.
4. Smooth, reliable operation: Suitable for demanding duty where consistent rotation and stable alignment matter.
1) Send Your Inquiry
Share the bearing details you need, including: bearing model numbers (e.g., 67388/67322), required quantity, preferred brands, OEM references and/or technical specifications.
2) Receive and Review Our Quotation
We’ll provide a detailed quotation covering: competitive unit pricing, stock status and lead time, shipping options based on weight and destination, estimated freight cost and payment terms.
3) Confirm the Order
Once you approve the quotation: we will issue a Proforma Invoice (PI), arrange payment via your preferred method (multiple options available).
4) Payment Confirmation & Dispatch
After we confirm receipt of payment, we will: pick and pack your bearings promptly and securely,
prepare export documents and support customs clearance, ship via a reliable carrier to your location and share tracking details for shipment visibility.
Comparison helps when dimensional fit is only part of the decision and load direction, sealing, clearance, speed, temperature, or repeat-order stability still need to be confirmed. Reviewing one or two nearby options early usually reduces sourcing mistakes later.
Buyers normally confirm the part reference, main dimensions, application, speed range, operating environment, sealing needs, and any packaging or marking requirements. That gives the supplier a cleaner basis for confirming availability and suitable alternatives.
A quick review of Taper Roller Bearings, one more commercial destination, and one practical guide usually saves time. That combination helps separate simple replacement orders from jobs that still need fit or application review.
Because it makes later decisions faster. When sizing notes, application cues, and nearby options stay close to the product, engineering, purchasing, and maintenance teams can revisit the same logic without starting the review from zero.
1. Sea shipping for mass cargos (GW > 500KGS)
2. Air shipping (GW between 100KGS – 500 KGS)
3. Express, such as DHL, TNT, Fedex, UPS for small cargos ( GW < 100KGS)
4. If you have shipping agent in China, we can send goods to your shipping agent's warehouse
We accept T/T, W/U, PAYPAL, L/C etc
Buyer FAQ
Confirm the bearing number, bore size, outside diameter, width, seal or shield type, cage material, clearance, precision level, quantity, and application. These details help prevent a size match from becoming a performance mismatch.
Yes. Replacement and repeat orders are easier when the original marking, measured dimensions, photos, application, and quantity are available. If the marking is unclear, the team can start from the size and working condition.
This item is handled within the Taper Roller Bearings family. Comparing the family page can help buyers review similar sizes, seal options, load direction, and related bearing choices before requesting a quote.
Price and lead time can change with quantity, stock availability, precision grade, clearance, material, cage, seal or shield type, lubrication, packaging, and whether the order needs standard matching or custom production.
Inspection can include material review, dimensional measurement, noise and vibration checks, surface and crack checks, visual review, and packaging inspection according to the confirmed order requirements.
