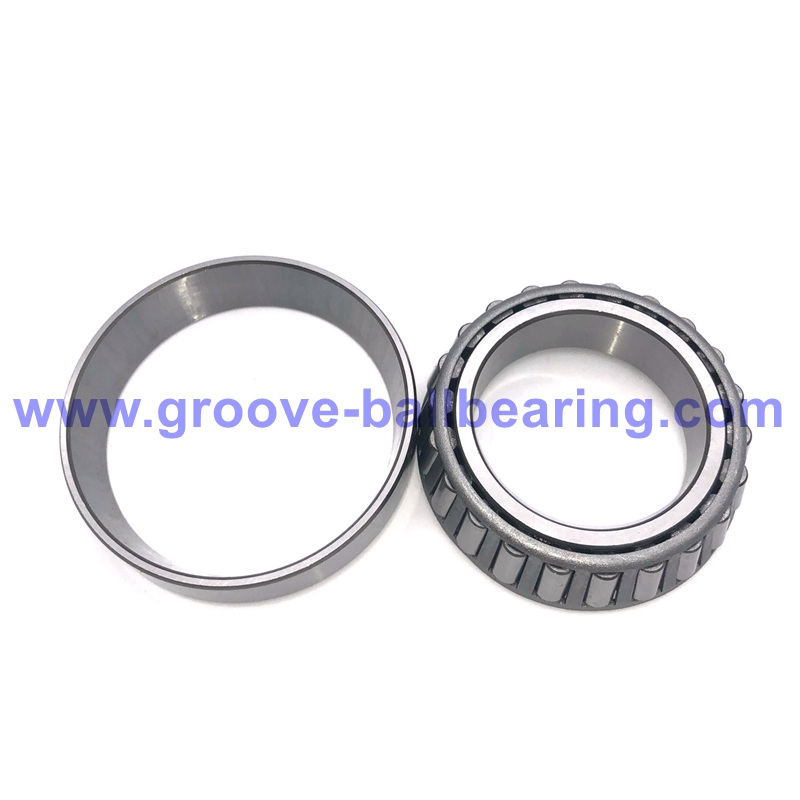

27690-27620 Bearing 27690/27620 Inch Taper Roller Bearing
Internal Diameter (d): 83.345mm
Outer Diameter (D): 125.412mm
Cone Width (B): 25.40mm
Total Width (T): 25.40mm
Cone Number: 27690
Cup Number: 27620
Mass: 1.03kg
Cage: steel
27690-27620 Bearing Information:
27690-27620 Bearing Internal Diameter (d): 83.345mm
Outer Diameter (D): 125.412mm
Cone Width (B): 25.40mm
Total Width (T): 25.40mm
Cone Number: 27690
Cup Number: 27620
Mass: 1.03kg
Bearing Cage: steel
Material: bearing steel
Dynamic Load: 113KN
Static Load: 163KN
Limit Speed: 2900RPM
Equivalents: 27690 – 27620, 27690/27620, 27690/620, 27690/20, 4T-27690/27620, 27690-99401, SET1010, SET1010-900SA
Our Imperial Tapered Roller Bearing Range:
| Cone & Cup Set | d*D*T (mm) | Mass (kg) |
| 663A/653 | 82.550×146.050×41.275 | 2.700 |
| 595/592XE | 82.550×147.638×35.717 | 2.590 |
| 595/592XS | 82.550×147.638×35.717 | 2.570 |
| 595/593X | 82.550×150.000×35.992 | 2.710 |
| 749A/742 | 82.550×150.089×44.450 | 3.350 |
| 750A/742 | 82.550×150.089×44.450 | 3.320 |
| 595/592AS | 82.550×152.400×35.717 | 2.820 |
| 595/592A | 82.550×152.400×39.688 | 2.990 |
| 663/652 | 82.550×152.400×41.275 | 3.100 |
| 757/752A | 82.550×159.995×47.625 | 4.260 |
| 757/752 | 82.550×161.925×47.625 | 4.390 |
| 6559C/6535 | 82.550×161.925×53.975 | 5.030 |
| 757/753 | 82.550×168.275×47.625 | 4.860 |
| 839/832 | 82.550×168.275×53.975 | 5.430 |
| 842/32 | 82.550×168.275×53.975 | 5.420 |
| H917849/H917810 | 82.550×180.975×53.975 | 6.220 |

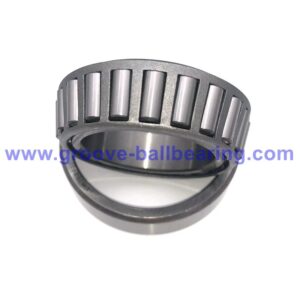

| 27689/27620 | 83.345×125.412×25.400 | 1.050 |
| 27690/27620 | 83.345×125.412×25.400 | 1.030 |
| 27691/27620 | 83.345×125.412×25.400 | 1.000 |
| 47688/47620 | 83.345×133.350×33.338 | 1.660 |
FAQ:
Q1: What materials are 27690 – 27620 bearings made from?
A1: These bearings are manufactured from premium bearing steels that offer durability, wear resistance, and corrosion protection, ensuring reliable, long-term performance.
Q2: How do I install this taper roller bearing?
A2: Proper installation involves cleaning the mounting surfaces, aligning the bearing correctly, and applying the recommended lubricant. Consult the manufacturer’s installation guide for specific steps.
Q3: What maintenance does this bearing need?
A3: To keep the bearing in optimal condition, regular inspections, proper lubrication, and thorough cleaning are essential. Additionally, correct installation and preventing contamination are crucial for extending the bearing’s service life.
Questions that usually come up before ordering 27690-27620 and 27690/27620
When is 27690-27620 and 27690/27620 worth comparing against nearby taper roller bearings options?
Comparison helps when dimensional fit is only part of the decision and load direction, sealing, clearance, speed, temperature, or repeat-order stability still need to be confirmed. Reviewing one or two nearby options early usually reduces sourcing mistakes later.
What details usually matter before approving 27690-27620 and 27690/27620 for repeat supply?
Buyers normally confirm the part reference, main dimensions, application, speed range, operating environment, sealing needs, and any packaging or marking requirements. That gives the supplier a cleaner basis for confirming availability and suitable alternatives.
Which next step usually helps after 27690-27620 and 27690/27620 is shortlisted?
A quick review of Taper Roller Bearings, one more commercial destination, and one practical guide usually saves time. That combination helps separate simple replacement orders from jobs that still need fit or application review.
Why keep a supporting guide linked beside 27690-27620 and 27690/27620?
Because it makes later decisions faster. When sizing notes, application cues, and nearby options stay close to the product, engineering, purchasing, and maintenance teams can revisit the same logic without starting the review from zero.
Shipping Method:
1. Sea shipping for mass cargos (GW > 500KGS)
2. Air shipping (GW between 100KGS – 500 KGS)
3. Express, such as DHL, TNT, Fedex, UPS for small cargos ( GW < 100KGS)
4. If you have shipping agent in China, we can send goods to your shipping agent's warehouse
Payment Terms:
We accept T/T, W/U, PAYPAL, L/C etc
