Bore (d): 110mm
Outer Diameter (D): 200mm
Width (B): 53mm
Mass: 7.10kg
Cage: sheet metal
Material: bearing steel
Prcision Rating: ABEC 1
Relubricate Holes: with
Bore (d): 110mm
Outer Diameter (D): 200mm
Width (B): 53mm
Mass: 7.10kg
Seal Type: open
Cage: sheet metal
Bearing Material: bearing steel
Number of Row: double
Category: spherical roller bearing
Prcision Rating: ABEC 1
Relubricate Holes: with
Radial Internal Play: standard C0

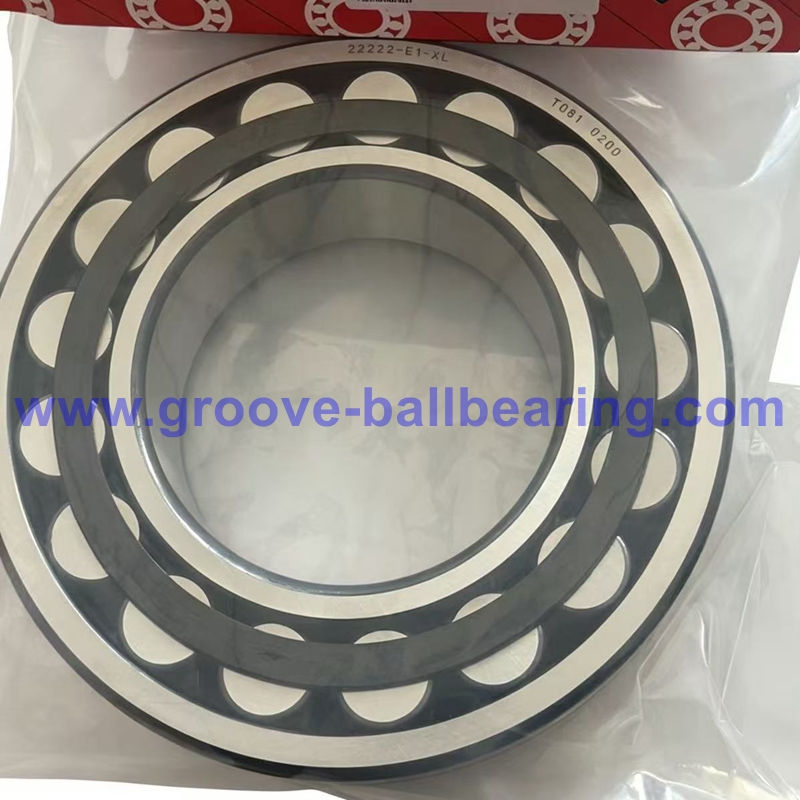

22222-E1-XL Lubrication: grease or oil
Operating Temperature: -30 °C to 200 °C
| Model Number | d/mm | D/mm | B/mm | C/kN | C0/kN | Weight/kg |
| 23122-2CS2/VT143 | 110 | 180 | 56 | 430 | 585 | 5.55 |
| 24122 CC/W33 | 110 | 180 | 69 | 520 | 750 | 7.10 |
| 24122 CCK30/W33 | 110 | 180 | 69 | 520 | 750 | 7.00 |
| 24122-2CS2/VT143 | 110 | 180 | 69 | 460 | 750 | 7.00 |
| 22222 E | 110 | 200 | 53 | 560 | 640 | 7.00 |
| 22222 EK | 110 | 200 | 53 | 560 | 640 | 6.85 |
| BS2-2222-2CS5/VT143 | 110 | 200 | 63 | 560 | 640 | 7.60 |
| 23222 CC/W33 | 110 | 200 | 69.8 | 600 | 765 | 9.85 |
| 23222 CCK/W33 | 110 | 200 | 69.8 | 600 | 765 | 9.55 |
| 22322 E | 110 | 240 | 80 | 950 | 1120 | 18.40 |
| 22322 EJA/VA405 | 110 | 240 | 80 | 950 | 1120 | 18.40 |
| 22322 EK | 110 | 240 | 80 | 950 | 1120 | 18.00 |
| 22322 EKJA/VA405 | 110 | 240 | 80 | 950 | 1120 | 18.00 |
| 23024 CC/W33 | 120 | 180 | 46 | 355 | 510 | 4.20 |
| 23024 CCK/W33 | 120 | 180 | 46 | 355 | 510 | 4.05 |
| 23024-2CS2/VT143 | 120 | 180 | 46 | 355 | 510 | 4.20 |
| 24024 CC/W33 | 120 | 180 | 60 | 430 | 670 | 5.45 |
| 24024 CCK30/W33 | 120 | 180 | 60 | 430 | 670 | 5.35 |
| 24024-2CS2/VT143 | 120 | 180 | 60 | 430 | 670 | 5.45 |
| 23124 CC/W33 | 120 | 200 | 62 | 510 | 695 | 8.00 |
| 23124 CCK/W33 | 120 | 200 | 62 | 510 | 695 | 7.75 |
| 24124 CC/W33 | 120 | 200 | 80 | 655 | 950 | 10.30 |
| 24124 CCK30/W33 | 120 | 200 | 80 | 655 | 950 | 10.00 |
| 24124-2CS2/VT143 | 120 | 200 | 80 | 655 | 950 | 10.50 |
1. Sea shipping for mass cargos (GW > 500KGS)
2. Air shipping (GW between 100KGS – 500 KGS)
3. Express, such as DHL, TNT, Fedex, UPS for small cargos ( GW < 100KGS)
4. If you have shipping agent in China, we can send goods to your shipping agent's warehouse
We accept T/T, W/U, PAYPAL, L/C etc
