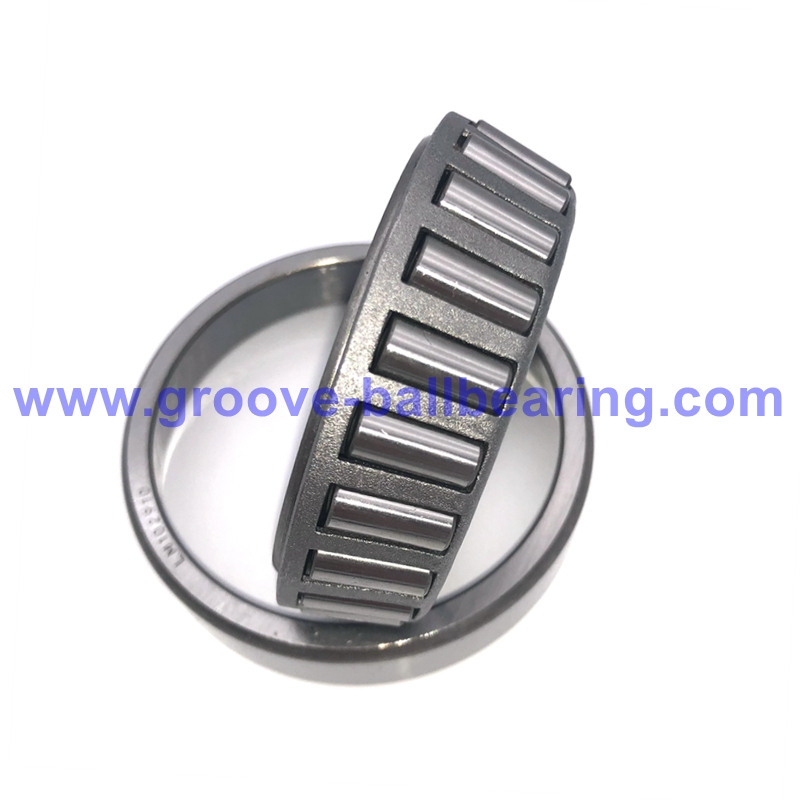

14125A/14276 Bearing – Imperial Tapered Roller Bearing

14125A/14276 Bearing Specification:

Cone NO.: 14125A
Cup NO.: 14276
Inner Diameter: 31.75mm/ 1.25 inch
Outer Diameter: 69.012mm/ 2.717 inch
Inner Ring Width: 19.583mm/ 0.771 inch
Total Width: 19.845mm/ 0.7813 inch
Mass: 0.36kg
Cage Material: pressed steel
Rings & Rollers Material: 52100 steel
Seals: without
Tolerance: ABEC 1
Number of Row: single
Category: tapered roller bearing
Relubricate Holes: without
Lubrication: standard grease
Operating Temperature: -30 °C to 120 °C
Equivalent Items: 14125A / 14276, 14125A-14276, 14125A 14276, 4T-14125A/14276, 14125A+14276

Key Features:

1. Imperial Tapered Roller Bearing Design: The 14125A-14276 bearing features an inch-size tapered roller design engineered to support combined radial and axial loads in demanding applications.

2. Matched Cone and Cup: The bearing consists of a 14125A cone and 14276 cup, providing a complete tapered roller bearing assembly for reliable installation and replacement.

3. High Radial and Axial Load Capacity: The tapered raceway and roller geometry allow the beairng to handle substantial radial loads together with axial loads in one direction.

4. Separate Cone and Cup Available: The 14125A cone and 14276 cup can be supplied separately, providing greater flexibility for replacement, maintenance, and inventory requirements.
