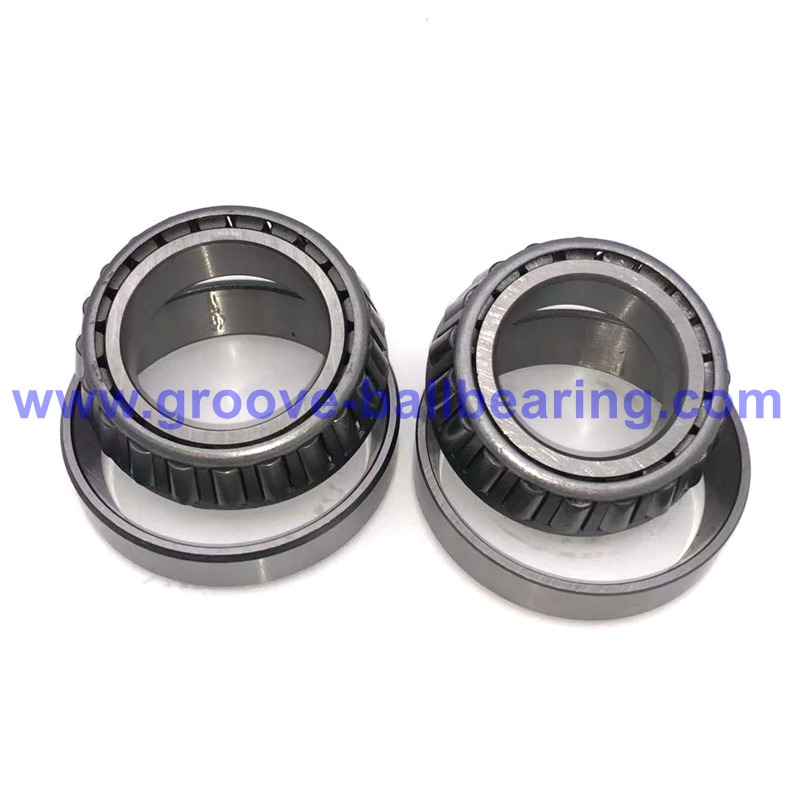

07087/07196 Bearing 07087/196 Taper Roller Bearings 7/8” Bore

07087/07196 Bearing Specification:

07087/07196 bearing consists of a single-row tapered roller design.
Concerning this bearing,
Bore (d): 22.225 mm/ 0.875 inch
Outer Diameter (D): 50.005 mm/ 1.9687 in
Cone Width (B): 14.260 mm/ 0.5614 in
Bearing Width (T): 13.495 mm/ 0.5313 in
Mass: 0.13kg/ 0.287lb
Cone Number: 07087
Cup Number: 07196
Enclosure: open
Precision: standard P0, ABEC1
Cage: stamped steel
Bearing Material: chrome steel/ bearing steel
Also known As: 07087 / 07196, 07087-07196, 07087 – 07196, 07087/196, 07087/96, 07087-90015, 4T-07087/07196

Imperial Tapered Roller Bearings — Our Offerings:

Key Features:

1. Single-row tapered roller design — 07087-07196 bearing provides combined radial and axial load support in one compact unit.
2. High radial and axial load capacity — handles heavy loads and shock impacts common in industrial equipment.
3. Precision-machined components for accurate running — ensure smooth rotation and minimize vibration.
4. Low friction for enhanced efficiency — reduces energy loss and lowers operating temperatures.
5. Robust cage for roller guidance and stability — bearing 07087/96 maintains roller spacing and prevents skewing at high speeds.
6. Wide operating temperature range — performs reliably from -30 °C to 120 °C temperatures in varied environments.
