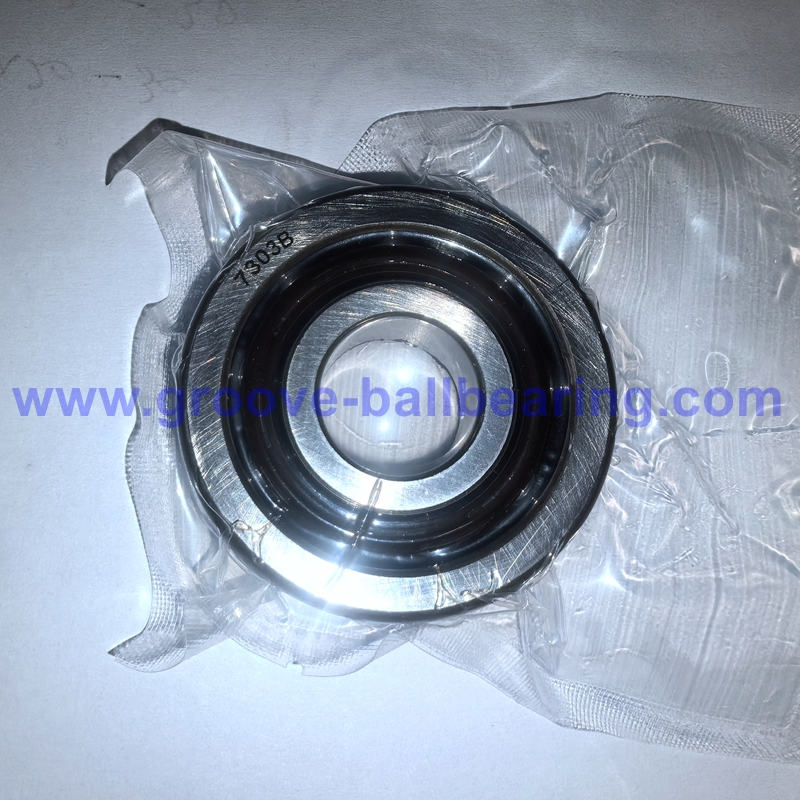

7303B Bearing 7303-B-XL-TVP Angular Contact Ball Bearing

Inner Diameter: 17mm
Outer Diameter: 47mm
Width: 14mm
Mass: 0.112kg
B: contact angle α 40 °
Operating Temperature: -30 °C to 120 °C
Cage Material: solid cage of glass‑fiber reinforced polyamide (PA66)
Equivalents: 7303, 7303 B, 7303-B-XL-JP, 7303BW, 7303B JP

Description



7303B Bearing Specification:

7303B bearing is single row angular contact ball bearing.
Regarding this bearing’s designation,
Inner Diameter: 17mm
Outer Diameter: 47mm
Width: 14mm
Mass: 0.112kg
B: contact angle α 40 °
Tolerance Class: P6, ABEC3
Limiting Speed: 9500 rpm (oil lub.)
Limiting Speed: 7200 rpm (grease lub.)
Operating Temperature: -30 °C to 120 °C
Cage Material: solid cage of glass‑fiber reinforced polyamide (PA66)
Equivalents: 7303, 7303 B, 7303-B-XL-JP, 7303BW, 7303B JP

Bearing Features:

1. Single row angular contact design
The inner and outer raceways are offset, creating a defined contact angle that allows the 7303B bearing to simultaneously carry radial loads and significant axial load in one direction—ideal for applications with combined loading.

2. Defined contact angle (B-type)
The offset raceways generate a relatively large contact angle (B designation typically indicates 40 ° contact angle), which increases the 7303 B bearing’s capacity to sustain axial load in its designed direction and improves resistance to thrust-induced deflection.

3. High radial load capability
The robust ball set and solid ring construction allow the bearing to carry substantial radial forces, making it suitable for shafts subjected to both steady and varying radial loads.

4. Strong unidirectional axial load support
The contact angle focuses load transmission along a path that efficiently carries axial force in one direction; this makes the 7303-B-XL-TVP bearings well suited for arrangements where thrust is predictable and predominantly one-way.

Single Row Angular Contat Ball Bearings We Offer:

Model Number Dimensions(mm) Mass(KG)
7300C 10×35×11 0.066
7301C 12×37×12 0.066
7302C 15×42×13 0.081
7303C 17×47×14 0.120
7304C 20×52×15 0.146
7305B 25×62×17 0.234
7305CQ1/S0 25×62×17 0.230
7305CJ 25×62×17 0.230
7306C 30×72×19 0.353
7306CTN1 30×72×19 0.340
7306CM 30×72×19 0.424
7306AC 30×72×19 0.350
7306CM 30×72×19 0.429
7307C 35×80×21 0.473
7308C 40×90×23 0.662
7308CQ1/S0 40×90×23 0.662
7308CM 40×90×23 0.693
7308C 40×90×23 0.662
7309C 45×100×25 0.888
7309CM 45×100×25 0.812
7309CQ1 45×100×25 0.812
7309CQ1/YA 45×100×25 1.030
7309C 45×100×25 0.830
7310C 50×110×27 1.080
7310CJ 50×110×27 1.060
7310CM 50×110×27 1.160
7311C 55×120×29 1.370
7311CM 55×120×29 1.650
7311CJ 55×120×29 1.380
7311C 55×120×29 1.440
7311CJE 55×120×29 1.461
7312C 60×130×31 1.710
7312CTN1 60×130×31 1.740
7312CJ 60×130×31 1.710
